3D CNC Video Inspecting Microscope (APC300)
Leader Precision Instrument Co., Ltd.- Name：3D CNC Video Inspecting Microscope
- Travel Xyz：300*200*200mm
- Driving System：Servo Motor Control
- Speed：200 mm,S
- Z-Axis Accuracy：0.05-0.03mm
- CCD Camera：Sentech Color 1,2" CCD Camera
Base Info
- Model NO.：APC300
- Zoom Lens：U. S. a Navitar Zoom Lens
- Transport Package：Standard Exporting Package
- Specification：SGS
- Trademark：MICRO ACCURACY
- Origin：Guangdong
- HS Code：9031809090
- Production Capacity：1000 PCS,Year
Description
APC300Glass Size (mm) 351 x 251 Travel (mm) X axis 300 Y axis 200 Z axis 200 Driving System Servo Motor Control Speed 200 mm/s Resolution of X/Y/Z-axis 0.5μm Positioning Accuracy 1μm X, Y-axis Accuracy ≤ 2.5 + L/200 (μm) Z-axis Accuracy 0.005-0.008mm Software Quick Image Measuring software ZoomView Video System CCD Camera: SENTECH Color 1/2" CCD Camera
Lightening System: Programmbale cold-light source Surface and Transmission illumination
Zoom Lens: U. S. A Navitar Zoom Lens
Magnification of field lens: 0.7X-4.5X
Total Magnifications: 30X-190X
Object View: 10.6mm-1.6mm Weight (KG) 270 Power Supply AC220V/110V 50/60 Hz Quick Image Measuring software ZoomView Sentech Color 1/2" CCD Camera Navitar Zoom Lens 0.7x-4.5x Capture Card USB transfer Box LED Light source Renishaw MCP trigger Probe set Pickup Device & Lens Display System TV Lines Min. Illumination Power Source Dimension(mm) 1/2" Color(CCD, C/CS-Mount) PAL 480 0.2Lux/F1.2 DC 12V/AC24V 70*57*260 0.5x Navitar Additional Lens 2x Navitar Additional Lens Calibrations Scale Navitar Coaxial Lens Navitar Auto Zoom Lens Optem Auto Zoom+ Coaxial lens

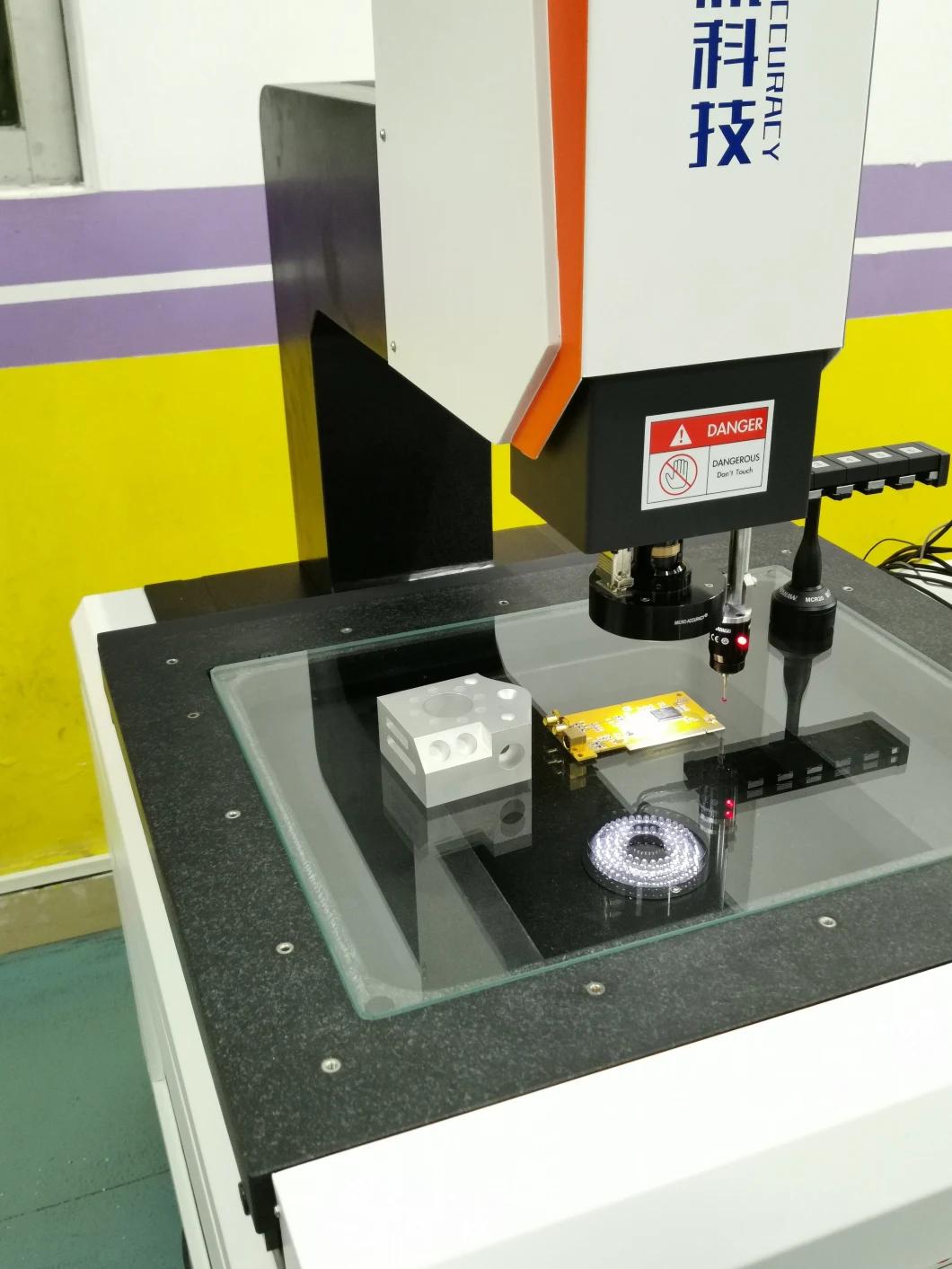

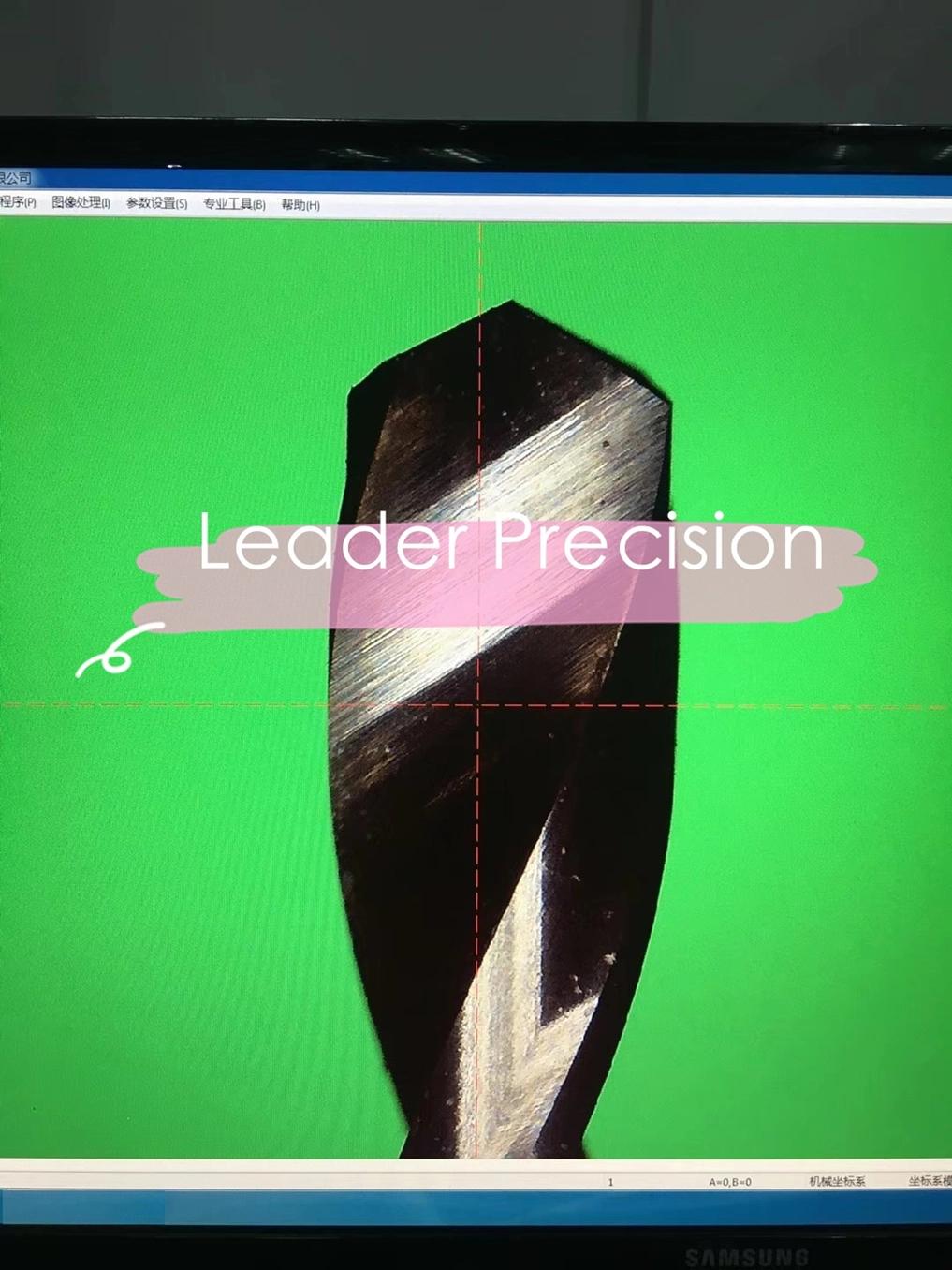

Detailed Photos
Quality System
1. Establish the quality management system based on ISO9001, improve quality inspection, and ensure that all the finished products are qualified.
2. All our measuring machines are with CE certification
3. All our measuring machines are assembled and adjusted with linear accuracy, so that the instrument accuracy is guaranteed by hardware assembly and adjustment to the greatest extent.
4. Our professional technical service team is familiar with the principle, structure, assembly, and software debugging of the instrument, freeing customers from worries!
5. We has provided professional and complete measurement solutions for many large and medium-sized enterprises at home and abroad, and
has won the trust of customers!
After-sale Service
1. Free professional operation training
2. Warranty: 18 months instead of 12 months
3. Regularly upgrade of software is available free
4. Available lifetime technical support
Lightening System: Programmbale cold-light source Surface and Transmission illumination
Zoom Lens: U. S. A Navitar Zoom Lens
Magnification of field lens: 0.7X-4.5X
Total Magnifications: 30X-190X
Object View: 10.6mm-1.6mm
