Woven Wire Mesh Stainless Steel Test Sieve
Xinxiang Hengyu Machinery Equipment Co., Ltd.- Sample Type：Solidity
- Processing Method：Screening
- Warranty：1 Year
- Environment：Normal Pressure and Temperature
- Display：Digital Display
- Performance：Automatic
Base Info
- Model NO.：SY-200,300
- Power Supply：220V
- Weight：0-50kg
- Certification：CE
- Customized：Customized
- Item：Test Sieves
- Diameter：200mm,300mm
- Mesh Size：20micron-8mm
- Transport Package：Exported Woode Case
- Origin：Xinxiang, China
- HS Code：84741000
- Production Capacity：1000 Per Week
Description

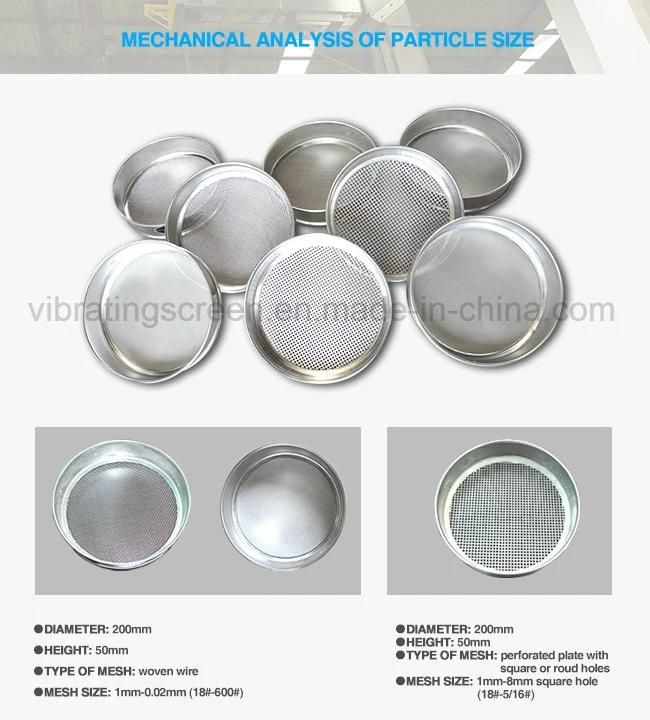

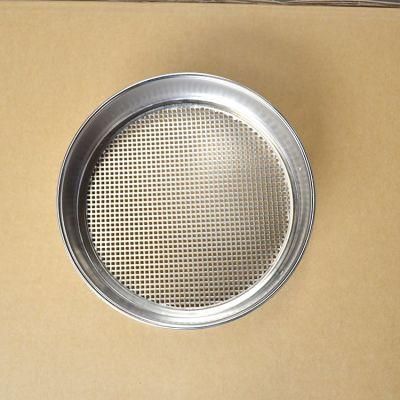

Photos show
Technical information for reference
| Mesh No. | Aperture size (mm) | Wire dia. (mm) |
| 4# | 4.75 | 1.60 |
| 5# | 4.00 | 1.25 |
| 6# | 3.35 | 0.80 |
| 7# | 2.80 | 0.71 |
| 8# | 2.36 | 0.80 |
| 10# | 2.00 | 0.63 |
| 12# | 1.70 | 0.5 |
| 16# | 1.18 | 0.63 |
| 18# | 1.00 | 0.355 |
| 20# | 0.85 | 0.50 |
| 30# | 0.50 | 0.315 |
| 40# | 0.425 | 0.20 |
| 45# | 0.355 | 0.20 |
| 50# | 0.30 | 0.20 |
| 60# | 0.25 | 0.16 |
| 80# | 0.18 | 0.125 |
| 100# | 0.15 | 0.10 |
| 120# | 0.125 | 0.09 |
| 200# | 0.075 | 0.063 |
| 230# | 0.063 | 0.045 |
| 325# | 0.045 | 0.036 |
| 400# | 0.038 | 0.025 |
| 500# | 0.028 | 0.022 |
| 600# | 0.02 | 0.02 |
Tell us the sieve mesh you need for getting good price, email us for more information.
