• Model NO.：T4220-FD
• Output Signal Type：Digital Type
• Production Process：Integration
• Material：Stainless Steel
• IP Rating：IP68
• Customized：Customized
• Range：0~0.5m...5m...10m...200mH2o optional
• Signal Output：4-20mA;0-5V;0.5-4.5V;0-10V;
• Accuracy：0.5%F.S; 0.25%F.S
• Overload Pressure：2X F.S
• Voltage：12~36VDC; 5VDC;10VDC
• Transport Package：Carton Box
• Specification：Diameter 76mm x Height 129mm
• Trademark：Twinno
• Origin：Shanghai, China
• HS Code：9027
• Production Capacity：3000pieces,Month

Basic Info.

Model NO. T4220-FD Output Signal Type Digital Type Production Process Integration Material Stainless Steel IP Rating IP68 Customized Customized Range 0~0.5m...5m...10m...200mH2o optional Signal Output 4-20mA;0-5V;0.5-4.5V;0-10V; Accuracy 0.5%F.S; 0.25%F.S Overload Pressure 2X F.S Voltage 12~36VDC; 5VDC;10VDC  Transport Package Carton Box Specification Diameter 76mm x Height 129mm Trademark Twinno Origin Shanghai, China HS Code 9027 Production Capacity 3000pieces/Month

Product Description

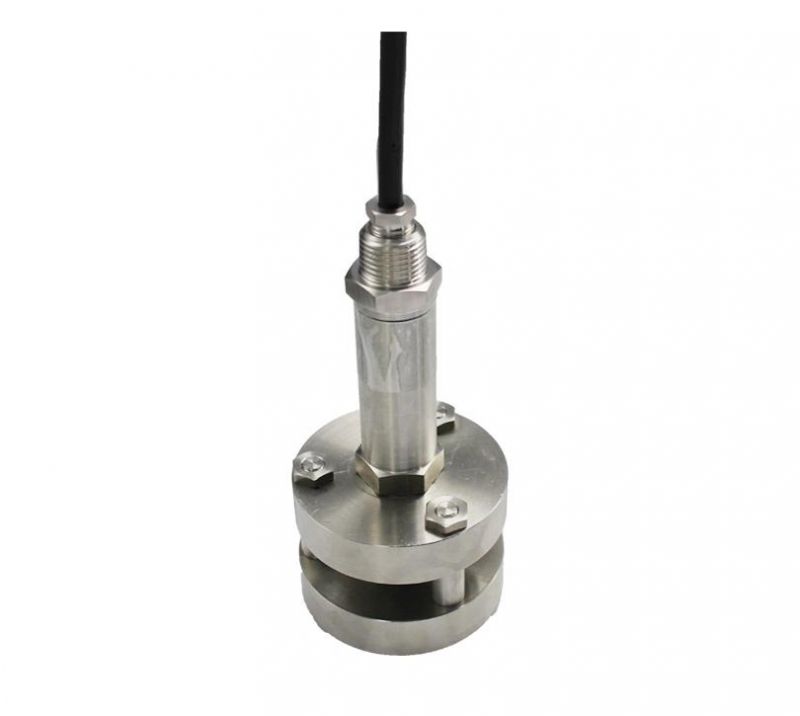

T4220-FD Input Type Anti-blocking Liquid Level Transmitter


Overview:
T4220-FD Liquid level transmitter is a pressure transmitter produced by international advanced silicon sensing technology. Different sensing cores can be selected according to practical applications, and stainless steel sealing structure is adopted.It has a variety of signal output, widely measurement range, long-term stability, anti-clogging, suitable for all kinds of places that need to accurately measure fluid pressure, such as petrochemical, environmental monitoring, hydraulic engineering, oil tanks, etc. level measurement.


Product features and applications:
*Simple shape design,anti-clogging, good linearity;
*Easy to install, easy to clean, and directly placed on the media;
*Waterproof ventilation cable is tightly connected to the housing;
*All stainless steel package with stainless steel isolation diaphragm on the measuring end;
*stable and reliable performance;
*Replace similar imported products;
*EMC performance and CE certification;
*Provide OEM acceptance of customer customization;
*Measurement Media:River level, sewage, sludge deep environmental protection water level; and other liquid level measurement fields;
*Applicable to: liquid water, sewage, deep mud, environmental protection and water level measurement,etc.


Specifications:

Range	0~0.5m...5m...10m...200mH2o optional
Output	4-20mA;0-5V;0.5-4.5V;0-10V;
Accuracy	0.5%F.S; 0.25%F.S
Overload pressure	2x F.S
Electrical Interface	Direct lead
Voltage	12~36VDC; 5VDC; 10VDC
Operating temperature	0~60ºC
Temperature compensation	0~75ºC
IP rate	IP65/IP68
product material	316 stainless steel/PTFE

FAQ:
1.Are you trading company or manufacturer ?
We are factory and we offer OEM services.


2.How can I choose the suitable one?
Please tell us your detailed requirements by mail or online, we will recommend the suitable one as your request.

3.Does your price is competitive?
We make sure to offer you the best quality with competitive price.

4.What is your terms of payment?
We accept 100% T/T in advance,balance before shipment.
 .
5.When I receive it after pay?
Normal models can be delivered with 3-7days,
please contact us to check transport time to your address.

6.How to deliver?
We can send by Express, by Sea and by Air.

7.Is will be broken during transport?
Please do not worry, we do standard export package.

8.What should I do if I do not know how to use?
User manual will be sent together, you can also contact us with more technological support.


Contact Us:

Tina Jiang
Sales Department

Shanghai ChunYe Instrument Technology Co., Ltd
4th Floor, Building 6, No.166 Mindong Road, Pudong New District, Shanghai, China 201209



https://twinno.en.made-in-china.com/


Delivery and Packing:







Our company:
