• Model NO.：MY-B025
• Specification：CE
• Trademark：Maya
• Origin：China
• Production Capacity：500PCS,Month

Basic Info.

Model NO. MY-B025 Specification CE Trademark Maya Origin China Production Capacity 500PCS/Month

Product Description

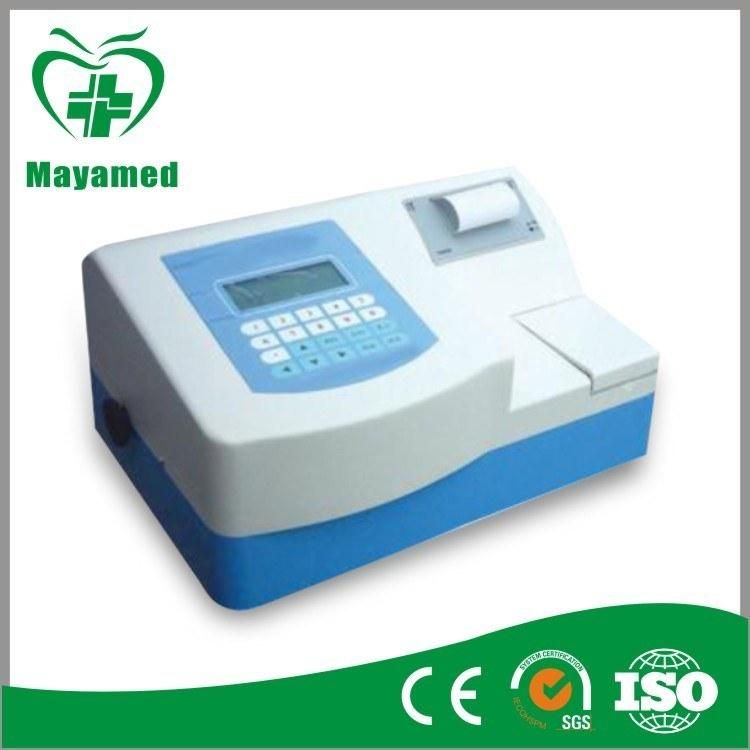

My-B025 Microplate Reader (2-channel optical system)


Light Source Tungsten Halogen Lamp
OSRAM64607,8V/50W

Main technical index:
Absorbance stability: ±0.005A
Linear error: ±0.5%
Display: LCD display
Way of input: touch screen and pen
Interface: serial port RS232, parallel port (printer)

Specifications:


Weight	12Kg
Outline Dimension	460mm(L)×347mm(W)×195mm(H)
Supply Power	AC(220±22)V,(50±1)Hz
Fuses	2-φ5×20  BGXP3.15A  250V
Work environment	Temperature+5~+40Relative humidity20%~80%Atmospheric pressure700~1060hPa
Storage temperature	-20~50
Light Source	Tungsten Halogen Lamp, OSRAM64607,8V/50W
Wavelength	405nm,450nm,492nm,630nm
Indication range	0.000~4.000A
Reading speed	Continuous mode≤10s,Stepping mode≤20s
Warm-up time	10min
CPU	ARM core series
Programmable Items	500
Interface	RS-232 serialParallel printerUSBMouse and keyboard interface
Display	320×240 LCD
Input Mode	Touch Screen, Touch pen
Memory Capability	2000 Plates (96 holes) test data
