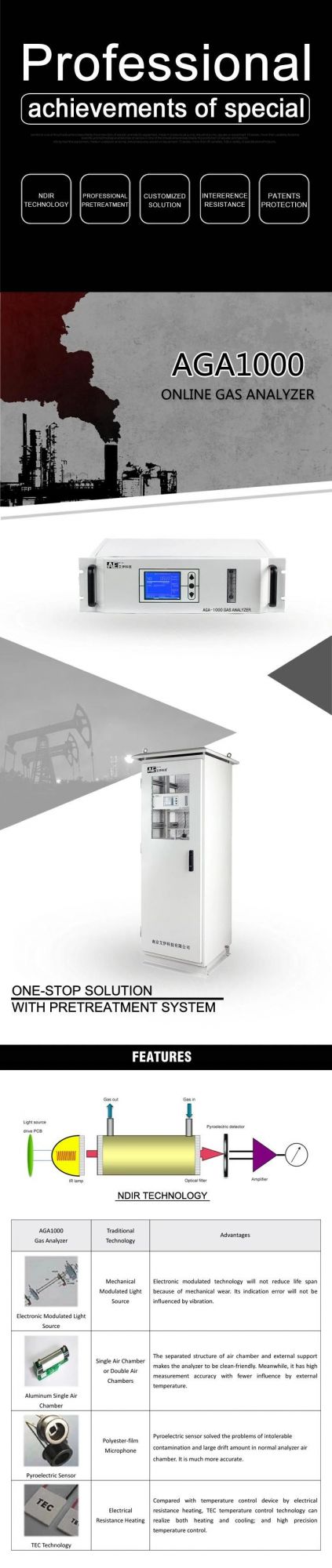

Wall-Mounted Emission Gas Analyzer for C2h6/C2h4/C2h2/C3h8

Nanjing AIYI Technologies Co., Ltd.
  • Brand：Aiyi
  • Customized：Customized
  • Portable：Non Portable
  • Certification：CE, RoHS, ISO
  • Gas：C2h6,C2h4,C2h2,C3h8
  • Type：Ndir Infrared

Base Info

  • Model NO.：AGA1000
  • Gas Sensor：Imported Sensor From Europe
  • Detection Principle：Ndir Infrared
  • Gases Detected：C2h6,C2h4,C2h2,C3h8
  • Measure Range：5%,15%,100%Vol
  • Pretreatment System：Optional
  • Output Signal：4-20mA , RS485
  • Zero Drift：±2%F.S,7D
  • Environment Temperature：-10ºC-50ºC
  • Reaction Time：≤ 20s ( T90 )
  • Measure Range Drift：±2%F.S,7D
  • Transport Package：Carton
  • Specification：650*500*265mm
  • Trademark：AIYI
  • Origin：Nanjing, China
  • HS Code：8531100000
  • Production Capacity：10000,Month

Description

NDIRSuitable gas CO: 0-3000ppm/1%15%30%100%VOL       CO2: 0-2000ppm/1%/10%/30%/100%VOL
CH4: 0-3000ppm/5%/15%/100%VOL           NO: 0-2000ppm
SO2: 0-1000/2000ppm
C2H6/C2H4/C2H2/C3H8
Customized Gas and Measure RangeZero Drift±2%F.S/7dSpan Drift±2%F.S/7dResponse Time≤20S(T90)Sample Gas Flow0.3-1.0L/min(Optimal Value: 0.4L/min)Sample Gas Pressure2-50kpaSignal Output4-20mA/RS485Operating Voltage220VACPretreatment SystemOptionalDimensions484mm*130mm*415mm560mm*330mm*330mmCabinet Size700mm*1800mm*710mm1100mm*1800mm*700mmCertificateCMCCMC/ Ex d II CT6 GbWall-Mounted Emission Gas Analyzer for C2h6/C2h4/C2h2/C3h8
