Gdyj-502 IEC156 Automatic Transformer Oil Breakdown Voltage 100kv Bdv Tester

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
  • Warranty：1 Year
  • Apparatus：Transformer Oil Breakdown Voltage Bdv Oil Tester
  • Application：100kv Transformer Oil Bdv Tester
  • Function：Bdv Insulating Oil Dielectric Strength Tester
  • Device：IEC Standard Transformer Oil Bdv Tester
  • Test Standards：IEC60156,Is6792,BS5874 Test, ASTM D1816, ASTM D877

Base Info

  • Model NO.：GDYJ-502
  • Output Voltage：AC 0V~100kv
  • Display：256*128 LCD
  • Maximum Storage Capacity：100 Groups of Test Data
  • Weight：41kg
  • Transport Package：Wooden Case
  • Specification：ISO Certificate
  • Trademark：GOLD
  • Origin：Chongqing of China
  • HS Code：9031809090
  • Production Capacity：200PCS,Month

Description

1Insulating oil breakdown test of user-defined2Proof test3IEC60156/IS6792/BS5874 test4ASTM D1816 standard test ASTM D877 standard test55 minutes standard test6Manual test7Calibration interface for customers, result print8Uploading data to PC and making word report automatically.

Technical Index:1Output voltage: AC 0V~100KV2Rate of voltage rise: 0.5kv/s±5%, 2kv/s±5%, 3kv/s±5%,5kv/s±5%3Max test times setting for user-defined mode: 94Stir time setting for user-defined mode: 0~999s5Waiting time setting for user-defined mode: 0~999s6Test error: 3%RDG+0.3%FS7Display: 256´128 LCD8Maximum storage capacity: 100 groups of test data9Power supply : AC220V±10%, 50Hz/60Hz10Environment temperature: 0-50°C    11Relative humidity ≤80%RH12Weight:41kg13Size: 620 mm*430mm*330mm

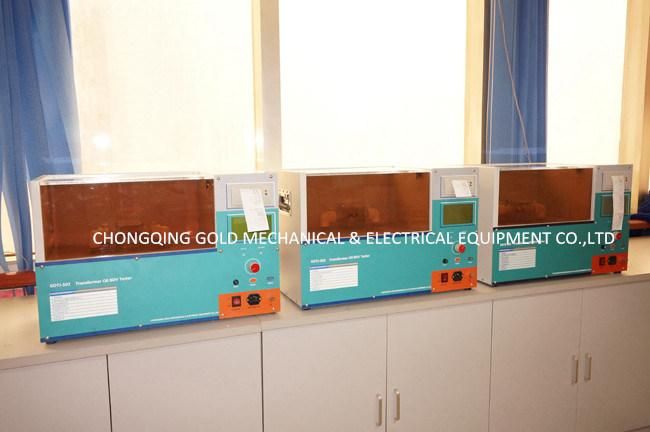

Gdyj-502 IEC156 Automatic Transformer Oil Breakdown Voltage 100kv Bdv Tester

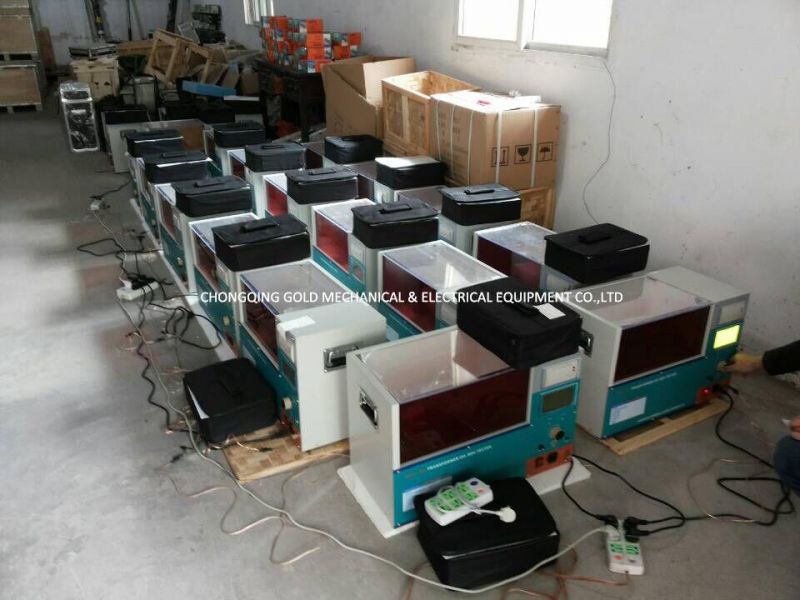

Gdyj-502 IEC156 Automatic Transformer Oil Breakdown Voltage 100kv Bdv Tester


Exhibitions:
Gdyj-502 IEC156 Automatic Transformer Oil Breakdown Voltage 100kv Bdv Tester
