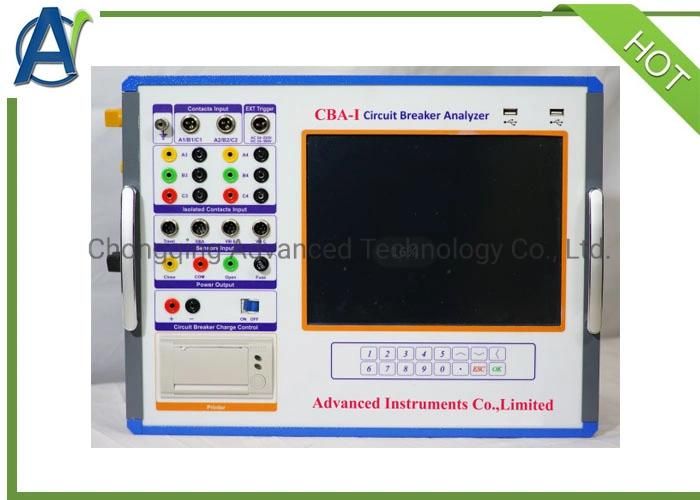

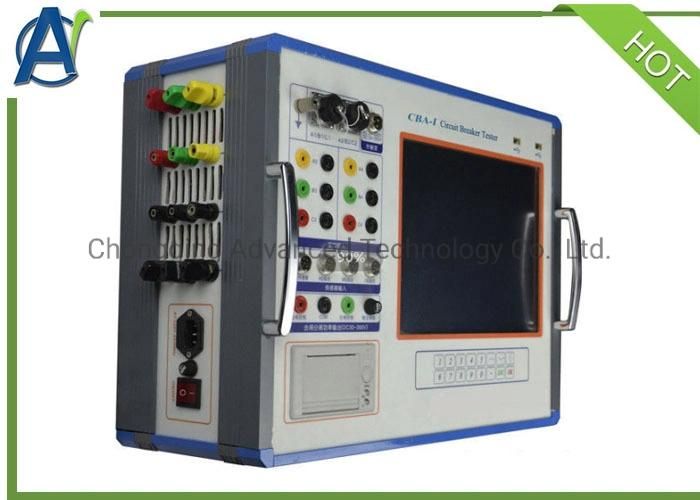

Cba-I Circuit Breaker Testing Machine for High Voltage Circuit Breakers
Chongqing Advanced Technology Co., Ltd.- After-sales Service：Response in 12 Hours
- Warranty：12 Months
- Test Standard：IEC 62271
- Power Supply：AC220V±10%; 50Hz±10%
- Channels for Time Measurement：12
- Voltage：24~265V
Base Info
- Model NO.：CBA-I Circuit Breaker
- Current：0~20A
- Time Measurement Range：4000ms
- Travel Measurement Range：0~250mm
- Pre-Insertion Resistance Measurement：50~5000ohm
- Storage Capacity：8g
- Dimension：448×260×150mm3
- Weight：15kg
- Dynamic Resistance Measurement：25~100A
- Contact Resistance Measurement：0--10mohm
- Display：Large LCD Screen
- Application：Circuit Breaker Testing
- Transport Package：Plywood Case
- Specification：Small
- Trademark：AI
- Origin：China
- HS Code：9031809090
- Production Capacity：50 Sets,Month
Description
Overview
Detailed Photos
Factory Overview FAQ
1.What's the delivery time?
About 20 working days.
2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD150/Day for every person.
