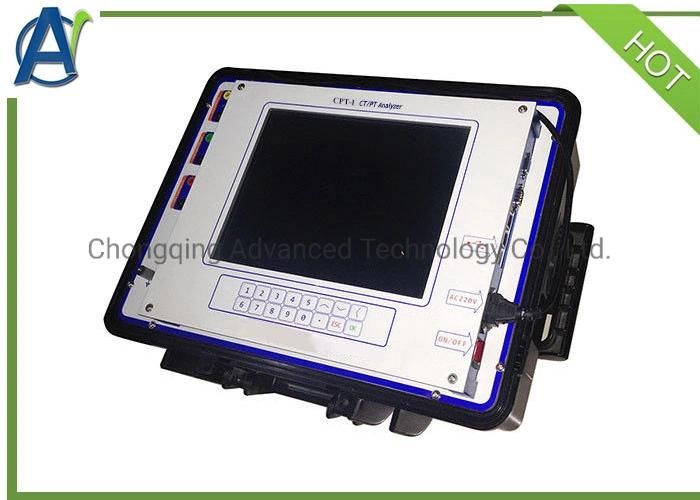

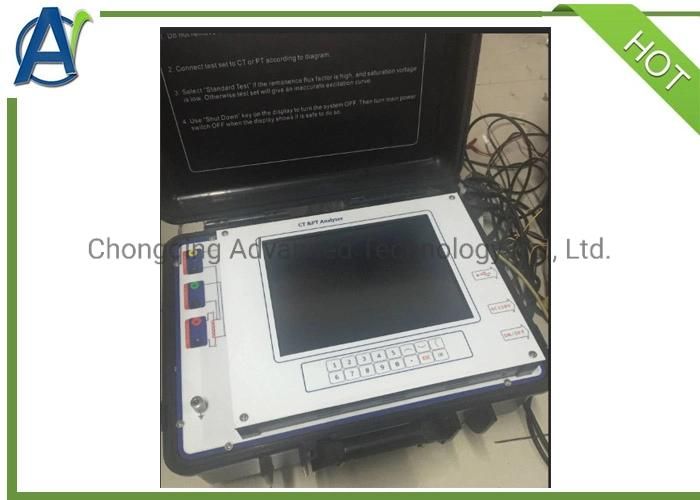

CT PT Current Transformer and Voltage Transformer Testing Machine
Chongqing Advanced Technology Co., Ltd.- After-sales Service：Response in 12 Hours
- Warranty：12 Months
- Test Standard：IEC60044-1, IEC60044-6, IEC60044-2, IEC60044-5, C5
- Power Supply：AC220V±10%, 50,60Hz±10%
- Voltage Output：0.1~180V (AC)
- Current Output：0.001~5A(RMS)
Base Info
- Model NO.：Current Transformer and PT
- Power Output：500va
- Maximum Knee Voltage Measurement：45kv
- PT Ratio Measurement Errfor：Typical Error <0.05%, Maximum Error<0.1%
- PT Phase Measurement Angle：Maximum Error < 3min
- Storage Capacity：>1000 Groups Test Results
- Dimension：485mm×356mm×183mm
- Weight：15kg
- Current Measurement Range：0~10A
- Voltage Measuring Range：0~200V
- Display：Big LCD Screen
- Application：CT and PT Testing
- Transport Package：Plywood Case
- Specification：Small
- Trademark：AI
- Origin：China
- HS Code：9031809090
- Production Capacity：50 Sets,Month
Description
Overview
Detailed Photos
Factory Overview FAQ FAQ
About 20 working days.
2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD150/Day for every person.
