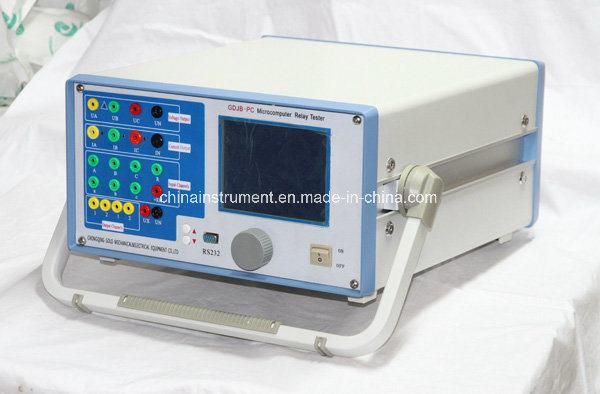

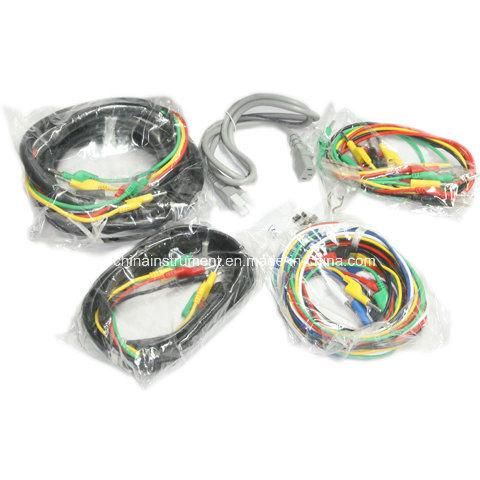

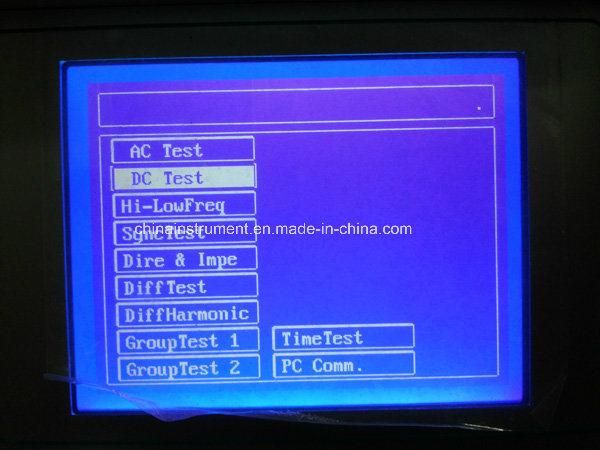

LCD Display Three Phase Microcomputer Relay Protection Tester Secondary Current Injection Relay Test Set
Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.- Output Accuracy：0.5magnitude
- Phase Current Output (Effective Value)：0~40A
- Three Parallel Phase Current Output (Eff：0~120A
- Phase Current Maximum Power Output：420va
- Three Parallel Phase Current Maximum Pow：900va
- Frequency Range (Base Wave)：20~1000Hz
Base Info
- Model NO.：GDJB-PC
- Harmonic Frequency Number：1~20 Time
- Switch Parameters Input：7 Ways; Empty Contact: 1~20mA, 24V Power Contact
- Switch Parameters Output：2 Couples DC:220V,0.2A; AC:220V,0.5A
- Product Name：Relay Protection Tester
- Transport Package：Standard Wooden Case
- Specification：25kg
- Trademark：GOLD
- Origin：Chongqing, China (Mainland)
- HS Code：9030849000
- Production Capacity：200pieces,Month
Description
Items
Specifications
Alternating Current(AC) output
1
Output accuracy
0.5magnitude
2
Phase current output (effective value)
0~40A
3
Three parallel phase current output (effective value)
0~120A
4
Phase current value with long time under permission (effective value)
10A
5
Phase current maximum power output
420VA
6
Three parallel phase current maximum power output
900VA
7
Three parallel phase current maximum work time
10s
8
Frequency range (base wave)
20~1000Hz
9
Harmonic frequency number
1~20 time
Direct Current(DC) output
1
Output accuracy
0.5magnitude
2
Current output
0 ~ ± 10 A/each phase
0 ~ ± 30 A/every three parallel
3
Maximum output of load voltage
20v
Alternating Voltage output
1
Output accuracy
0.5magnitude
2
Phase voltage output (RMS)
0 ~ 120v
3
Line voltage output (RMS)
0 ~ 240v
4
Phase voltage/line voltage power output
80VA/100VA
5
Frequency range (base wave)
20 ~ 1000Hz
6
Harmonic frequency number
1 ~ 20 times
Direct voltage output
1
Output accuracy
0.5magnitude
2
Phase voltage output amplitude
0 ~ +160v
3
Line voltage output amplitude
0 ~ + 320v
4
Phase voltage/line voltage power output
70VA/140VA
The switch quantity and time measurement
1
Switch parameters input
7 ways;
Empty contact: 1~20mA, 24v
Power contact access: "0":0~ +6V;
"1":+11 V ~ +250V
2
Switch parameters output
2 couples DC:220V/0.2A; AC:220V/0.5A
3
Time measurement
Measuring range: 0.1ms ~ 9999s / 0.1ms
