• Model NO.：ND100-1
• Customized：Customized
• Product Name：Nitrogen Evaporator , Sample Concentrator
• Nitrogen Consumption：15L,Min, One Block
• Lead Time：Within 7 Days
• Transport Package：Strong Packing
• Specification：CE ISO TUV
• Trademark：PIOWAY
• Origin：China
• Production Capacity：1000 Units , Month

Basic Info.

Model NO. ND100-1 Customized Customized Product Name Nitrogen Evaporator , Sample Concentrator Nitrogen Consumption 15L/Min, One Block Lead Time Within 7 Days Transport Package Strong Packing Specification CE ISO TUV Trademark PIOWAY Origin China Production Capacity 1000 Units / Month

Product Description

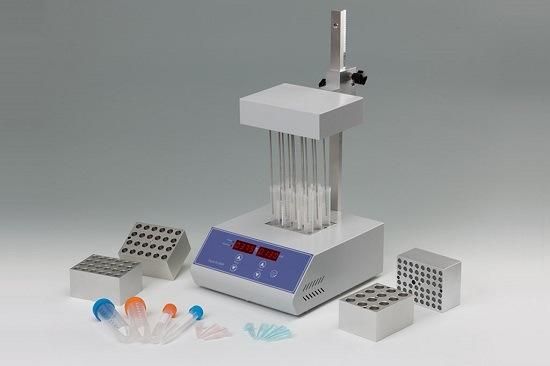

                                            Lab Nitrogen Evaporator , Sample Concentrator (ND100-1)



Descriptions:
ND100-1 Sample Concentrator is with microprocessor controlled and PID fuzzy controlled technique. Instead of traditional water bath device, the heat-conducting medium is high purity aluminum. The test tubes are held in a block ,and blowing a large number of samples at one time. It can be used in residue analysis, commodity inspection, food, environment, pharmacy and biological product and other industries.

Features:
- High precision and wide range of tamp control.
- Blowing a large number of samples at one time.
- Blowing each sample independently.
- Amount of airflow can be adjusted.
- Easy operation; safe and reliable to use.
- 12-month warranty.

Specifications:

Temp. range	RT. +5 ºC ~150 ºC
Time range	1min~ 99h59min
Max pressure	0.05Mpa
Nitrogen consumption	15L/min
Temp. accuracy	≤±0.5 ºC
Display accuracy	0.1 ºC
Needle length	150mm
Standard blocks	1
Temp. uniformity	≤±0.5 ºC (@100 ºC )
Temp. Uniformity	≤±1 ºC (@150 ºC )
Heating time	≤30min(from 40 ºC to 150 ºC )

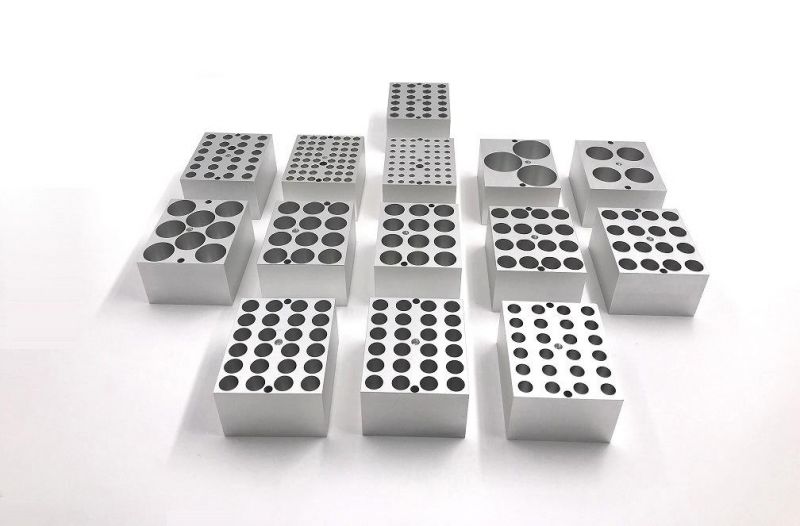

Optional Modules

Model	Tube Diameter	Number of Test Tube
MD03	10mm	24
MD04	12mm	24
MD05	13mm	24
MD06	15mm	16
MD07	16mm	16
MD08	19mm	12
MD09	20mm	12
MD10	26mm	8
MD11	28mm	4
MD12	40mm	3
MD15	1.5ml	24
MD16	2.0ml	24

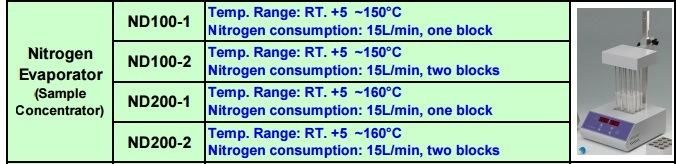

Different Models
