University Radiant Test Panel Flammability Analyzer for Flooring Materials

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
  • Application：Flammability Analyzer for Flooring Materials
  • Item Name：Flammability Analyzer for Flooring Materials
  • Standard：ISO 9239-1; ISO 9239-2; ASTM E648; ASTM E970
  • Utilities：Bottled Propane Gas, Air Compressor
  • K-Type Thermocouples：Range, Ambient About 1500 Degree Centigrade
  • Sample Holder：Stainless Steel

Base Info

  • Model NO.：GD9239
  • Dummy Calibration Panel Holder：for Measuring Heat Fluxmeter
  • Pyrometer：for Measuring Radiant Panel Temperature
  • Exhaust：30~85 M3,Min
  • Instructions：Provide
  • Weight：About 300kg
  • Power：AC 220V, 50,60Hz, 20A
  • Console Size：600mm(W)* 750mm(D)* 1600mm(H)
  • Sliding Platform：for Loading The Specimen
  • Warranty：12 Months
  • Transport Package：Standard Wooden Case
  • Trademark：GOLD
  • Origin：Chongqing China(Mainland)
  • HS Code：9031809090
  • Production Capacity：500 Sets, Year

Description

ISO 9239-1Reaction to Fire Tests for Flooring- Part 1: Determination of Burning Behavior Using a Radiant SourceISO 9239-2Reaction to Fire Tests for Flooring- Part 2: Determination of Flame Spread at a Hat Flux Level of 25kW/m2 ASTM E 648Standard Test Method for Critical Radiant Flux of Floor- Covering System Using a Radiant Heat Energy SourceASTM E 970Standard Test Method for Critical Radiant Flux of Exposed at Attic Flooring Insulation Using a Radiant Heat Energy SourceNFP A 253Standard Method of Test for Critical Radiant Flux of Floor Covering System Using a Radiant Heat Energy Source (National Fire Code. Vol.6)KS F ISO 9239- 1Reaction to Fire Tests for Flooring- Part 1: Determination of Burning Behavior Using a Radiant SourceKS F ISO 9239- 2Reaction to Fire Tests for Flooring- Part 2: Determination of Flame Spread at a Hat Flux Level of 25kW/m2



Product Pictures:

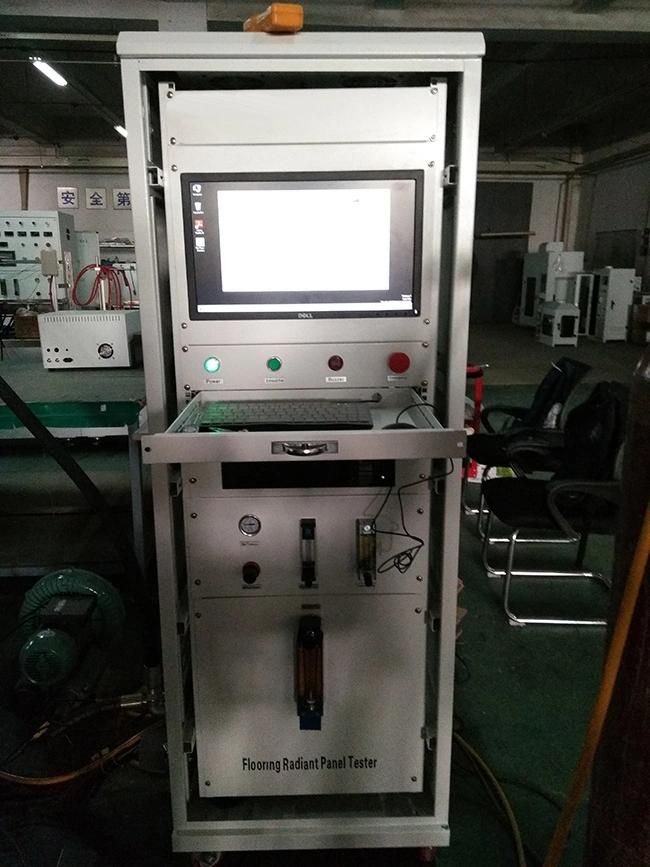

University Radiant Test Panel Flammability Analyzer for Flooring Materials

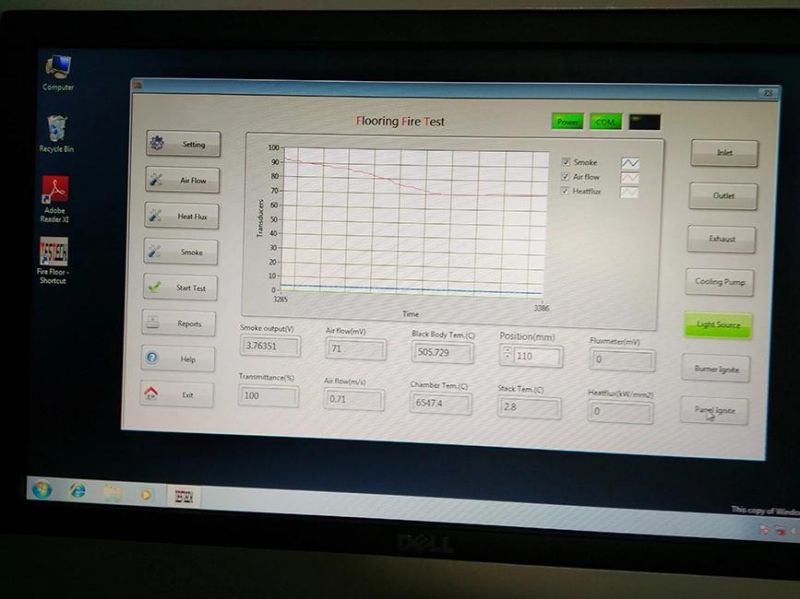

University Radiant Test Panel Flammability Analyzer for Flooring Materials


Main Features:

1. All structural components are made of stainless steel, beautiful appearance and corrosion resistance.

2. Test chamber is made of panel (calcium + silicate ) as 13±1 mm of thickness and 650 kg/m3 of nominal density.

3. Air pass dimension between test chamber and test specimen holder is produced by (0.23±0.03) m3 at both beside of specimen fairly.

4. The calorimeter is imported from United States , range 50kW/m2.

5. Radiant chamber had a stop of 30±1degree per horizon panel, and can be resisted up to 900 degree centigrade. It also should be include safety-blocking function.

6. The radiation source is a porous ceramic heat radiating plate of 300mm*450mm, and tilted 30 °.

7. Pilot burner should be stationed equally as 0.7mm diameter and 19/EA, produced a slop of 60 degree per center line bottom.

8. Air velocity of exhaust stack should be attached an exhauster as 2.5±0.2 m/s.

9. It should be used an radiation pyrometer which can be monitor 250mm diameter from about 1.4 meter and has ±5 degree centigrade sod ml accessory with 480ºC to 530ºC (black body temperature) range for adjustment the surface quality of heat of radiant panel.

10. It can be measured hat flow within tolerance from radiant heat panel to 110mm to 910mm at 100mm intervals.



Specification:

Product NameUniversity Radiant Test Panel Flammability Analyzer For Flooring MaterialsSteel frame chamber, Dimension1,400mm(W)×500mm(D)×2,200mm(H)Console Size600mm(W)×750mm(D)×1600mm(H) PowerAC 220V, 50/60Hz, 20AWeight about 300kgInstructions ProvideExhaust30~85m3/min K-type thermocoupleRange, Ambient about 1500 degree centigrade UtilitiesBottled propane gas, Air compressor (5HP)
