• Model NO.：TP-6100A
• Power Supply Voltage：AC220V±10%
• Transport Package：Wooden Case
• Specification：CE,ISO
• Trademark：Top
• Origin：China(Mainland)
• HS Code：9027809900
• Production Capacity：200,Month

Basic Info.

Model NO. TP-6100A Power Supply Voltage AC220V±10% Transport Package Wooden Case Specification CE/ISO Trademark Top Origin China(Mainland) HS Code 9027809900 Production Capacity 200/Month

Product Description

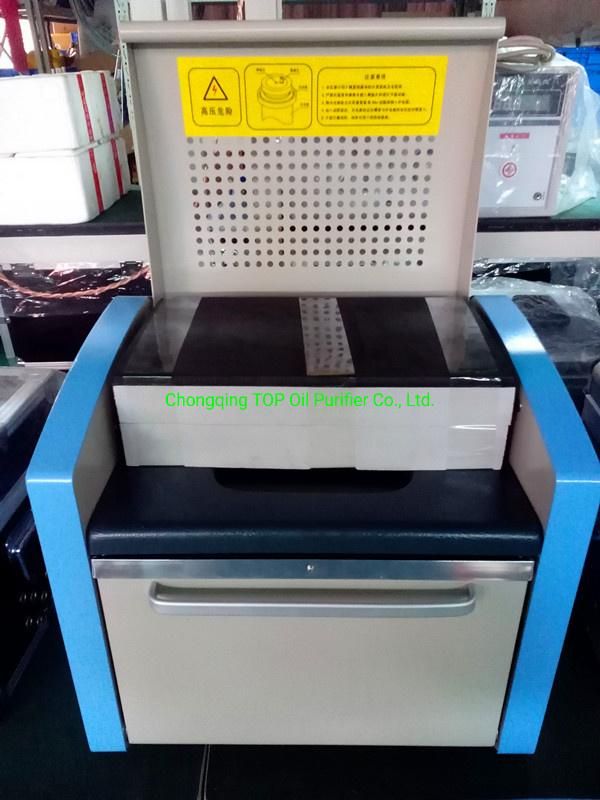

ASTM D924 Insulating Oil Tan Delta and Capacitance Tester (TP-6100A)


Product Application
Standard Test Method for Dissipation Factor (or Power Factor) and Relative Permittivity (Dielectric Constant) of Electrical Insulating Liquids

TP-6100A Insulating oil dielectric loss and resistivity tester, TP-6100A  is based on IEC and GB/T5654-2007 design and manufacturing of Liquid insulating material of relative permittivity, dielectric loss factor
and DC resistivity measurements. Used for measuring the insulation oil and  other  dielectric loss  factor  of liquid insulating medium and DC resistivity. The instrument is characterized by integrated structure, and
integrates the dielectric loss of grease cup, temperature controller, temperature sensor, dielectric loss test  bridge, AC test power, standard capacitor, high resistance meter, DC high voltage source and other major
components. The instrument adopts full digital technology and all of the intelligent  automatic  measurement,  is equipped with large screen (240*128) LCD display , the test results can be automatically stored and printed  output, so that the operator without professional training will be able to use it proficiently.


Product Features
1.Grease cup used in line with the national standard GB/T5654-2007 of the three-electrode  structure,  inter-electrode spacing 2mm, can eliminate the  stray capacitance and leakage effects on  dielectric loss  test results

2.The instrument adopts the medium frequency induction heating, PID temperature control algorithm.  This  heating method has the advantages of the oil cup and the heating body non-contact,  even heating,  fast  speed, convenient control, strict control of the temperature in the temperature error within the preset range.

3.Internal standard capacitor of SF6 gas-filled three-electrode  capacitance of the  capacitor dielectric loss  and electrical capacity independent of ambient temperature, humidity and other effects, the instrument
accuracy is ensured even after prolonged use.

4.AC test power supply using AC-DC-AC conversion, effectively  avoid the fluctuations in mains  voltage and  frequency on dielectric loss measurement accuracy effect. Even a generator, the instrument can work properly.

5.Perfect protection function; When there is over voltage,over current or high-voltage short circuit,  instruments  can quickly cut off pressure, and issues a warning message. When the temperature of the sensor failure or
not connected, the instrument will also issue a warning message.

6.There is a temperature limiting relay in the medium frequency induction heating furnace. When temperature  above 120 degrees, the instrument frees the relay and stops heating.

7.More convenient the experimental parameter is set. Temperature setting range 0~125ºC, AC  voltage setting  range 500~2200V, DC voltage setting range 0~500V.

8.Using a large-screen LCD display with backlight,  clear display. Friendly interface, simply follow  the Chinese  menu prompt, enter the command, the instrument can be automatically tested. And automatically store and  print test results.

9.Built-in real-time clock, the test date, time may be retained with the test results, display and print.

10.Air electrode cup calibration function. Measurement of air electrode cup capacitance and dielectric  loss factor, in order to determine air electrode cup cleaning and assembly condition. The calibration data  is automatically saved, in order to facilitate the calculation of relative permittivity and DC resistivity.



Safety Measures

1. using electromagnetic induction heating technique, even heating, fast temperature rise speed,
short time.
2. the output voltage 500V ~ 2000V is continuous and adjustable, suitable for different sample the
voltage level required.
3. the temperature control is accurate, is not affected by environment temperature influence.
4. high measurement accuracy, stable, reproducible data.
5. a boot detection circuit, no grounding or earthing is not good to give a hint.
6. a short-circuit protection circuit, short circuit and high voltage output circuit.

Technical Parameter
Electrode gap :       2mm
Maximum working voltage:2KV,50HZ
The empty cup capacitance:60±5pF
The empty cup dielectric loss  : ≤5×10-5
Liquid capacity      :40ml
Power supply voltage:AC220V±10%

Power frequency:50Hz/60Hz ±1%

Measuring range:

Electric capacity    5pF~200pF

Relative capacitivity1.000~30.000

Dielectric loss factor0.00001~100

DC Resistivity 2.5MΩm~20TΩm

Measuring accuracy:

Electric capacity± (1% of reading +0.5pF)

Relative capacitivity±1% of reading

DC Resistivity±10% of reading

Resolution:

Electric capacity 0.01pF

Relative capacitivity 0.001

Dielectric dissipation factor 0.00001

Measured temperature range:0~125ºC

Temperature measurement error:±0.5ºC

Test Voltage AC(RMS):500~2200V Continuously adjustable, frequency 50Hz

Test Voltage DC:0~500V  Continuously adjustable

Power dissipation:100W

External dimensions:500×360×420

Total weight:22Kg


Procuct Diagram


1. the high voltage pole ( outer electrode )
2. the measuring electrode ( electrode )
3. insulating magnetic column ( high frequency porcelain )
4. a compression nut
5. shielding electrode
6. an insulating magnetic column ( high frequency porcelain )
7. Mounting body
8. a mounting body of measuring electrode leading-out terminal
