• Automatic Range Shift：0~100ppm, 0~1000ppm, 0~25%.
• Repeatability Error：<=1.5%
• Transport Package：Standard Export Wooden Box Packaging
• Specification：144 * 144 * 330mm (W*H*D)
• Trademark：CYKY
• Origin：Zhengzhou, China
• HS Code：8411820000
• Production Capacity：100pieces,Month

Basic Info.

Automatic Range Shift 0~100ppm, 0~1000ppm, 0~25%. Repeatability Error <=1.5% Transport Package Standard Export Wooden Box Packaging Specification 144 * 144 * 330mm (W*H*D) Trademark CYKY Origin Zhengzhou, China HS Code 8411820000 Production Capacity 100pieces/Month

Product Description

Eight ranges Zirconia oxygen analyzer (desktop) with Measuring range  0.1ppm~50%O2

Introduction of Zirconia Analyzer:
CY-802 zirconia oxygen content analyzer is an intelligent instrument composed of a single-chip microprocessor. Most functions are realized through the software, such as: parameter setting, parameter modification, upper and lower limit alarm setting, instrument zero calibration, range calibration, output linear analog signal adjustment, real-time data transmission, etc. The instrument is suitable for the following fields:
1) Automatic analysis of air separation oxygen preparation, air separation nitrogen preparation, and oxygen content in chemical processes
2) Analysis of oxygen content in protective gas in the electronics industry
3) Analysis of oxygen content in the protective gas of high temperature sintering furnaces such as magnetic materials
4) Analysis of oxygen content in glass and building materials industry and analysis of oxygen content in various industries

Features of Zirconia Analyzer:
Selection of high-quality zirconia detection elements has the characteristics of long life and fast response.
• Adopt large-screen dot-matrix liquid crystal display, which can display parameters such as oxygen quantity, temperature, date, time, etc.
• Full Chinese man-machine dialogue menu is adopted, which is intuitive and convenient to operate.
• Adopting convection-diffusion structure, reducing the influence of flow on measuring trace oxygen.
• The instrument has a total of eight ranges from micro to constant, and the range is automatically converted.
• The upper and lower limit alarm points can be set arbitrarily within the full range.
• With paperless recorder function, automatically record the change curve of oxygen concentration with time.
• With automatic storage of measurement data, the storage interval is set by the user.
• With 0~10mA or 4~20mA current signal output.
• The instrument has a standard RS232C communication port, which can be connected to a serial printer or to achieve two-way communication with a computer.

Technical parameters of Zirconia Analyzer:

Measuring range	0.1ppm~50%O2
Automatic range shift	0~100ppm, 0~1000ppm, 0~25%.
Basic error	±3%FS (>100ppm); ±5%FS (≤100ppm)
Repeatability error	≤1.5%
Response time	T90<30 seconds
Zero drift	±3%FS/7d (>100ppm); ±5%FS/7d (≤100ppm)
Range drift	±3%FS/7d (>100ppm); ±5%FS/7d (≤100ppm)
Output signal	4~20mADC (Allow external load <800Ω) 0~10mA DC (Allow external load <1600Ω)
Alarm relay contact capacity	220VAC/1A
Power consumption	≤50W
Power supply	220V±10%; 50Hz±5%
Ambient temperature	0~40ºC
Relative humidity	no more than 90% (except condensation)
Atmospheric pressure	local atmospheric pressure
Sample gas temperature	0~40ºC
Sample gas pressure	<0.2Mpa
Sample gas flow	300ml/min
Appearance size	144×144×330mm (W×H×D)
Install hole cut	138×138mm
Weight	7kg

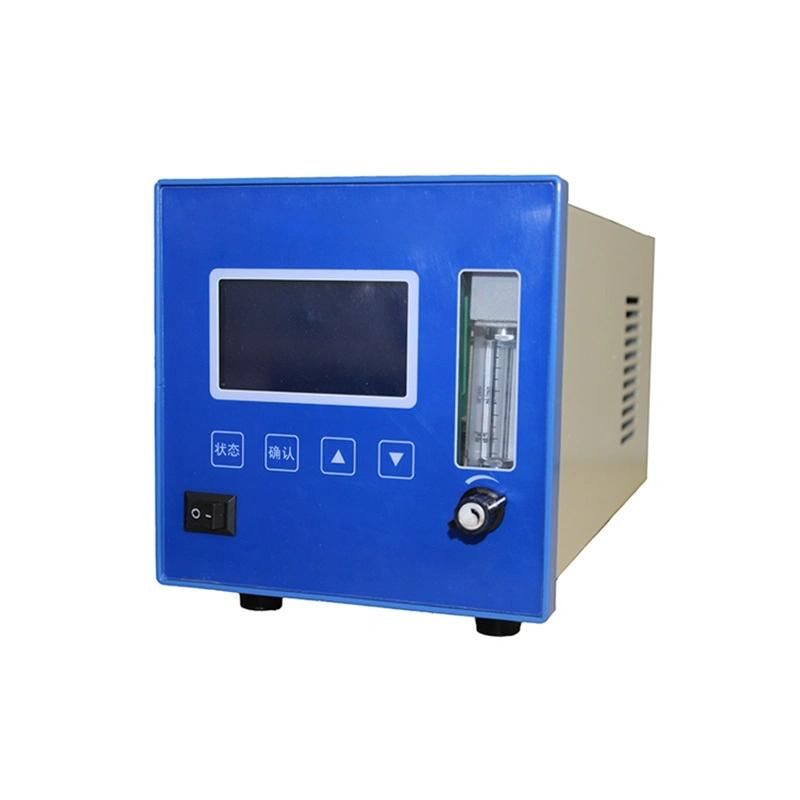

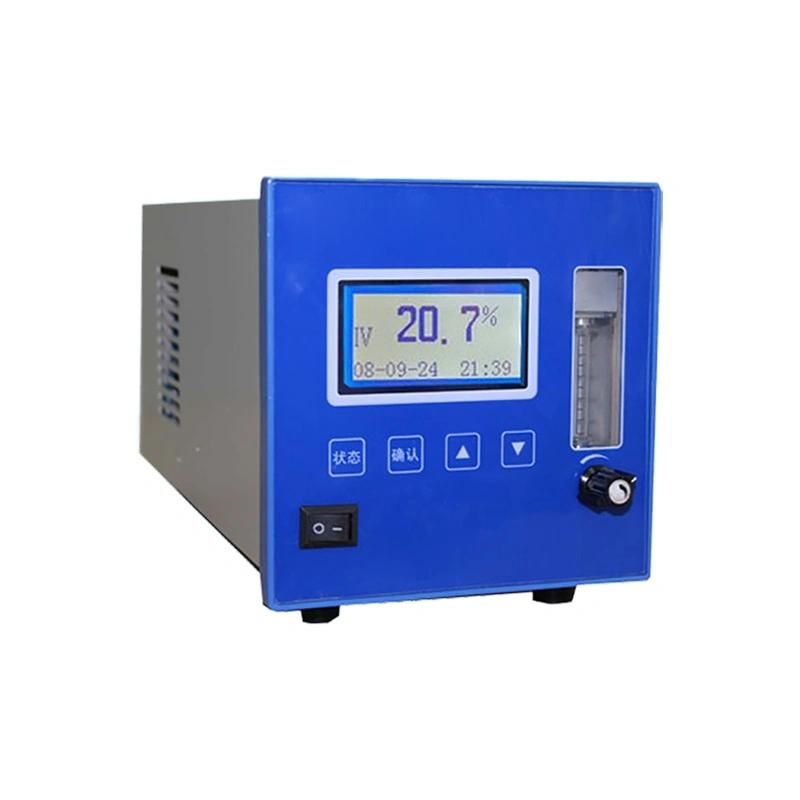

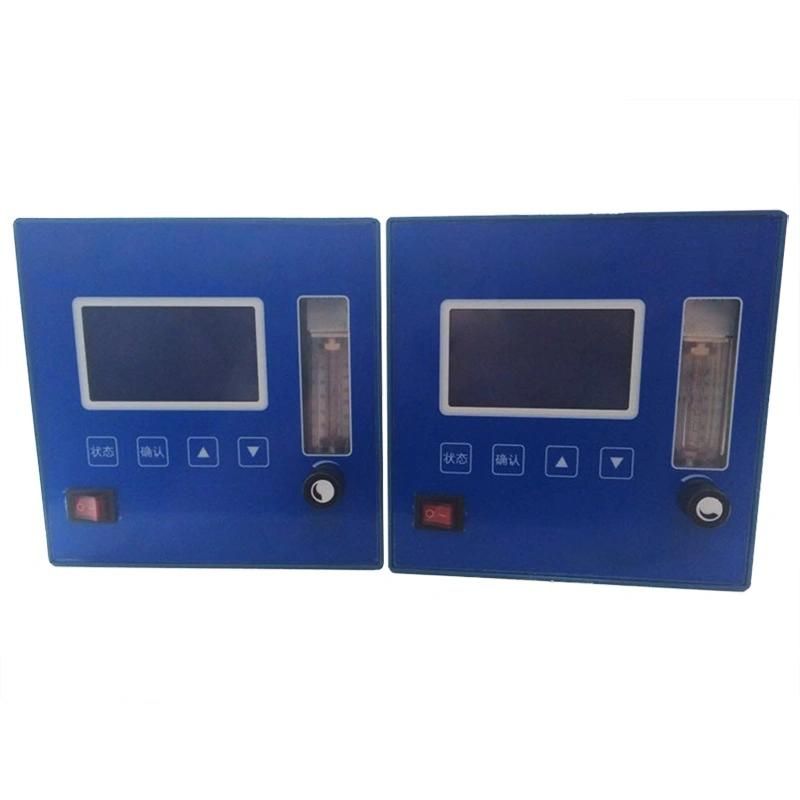

Related photos of Zirconia Analyzer:

Founded in 2005, Zhengzhou CY Scientific Instrument Co., Ltd. is a company specializing in the development and production of laboratory technology research equipment. The products are mixed, pressed, burned, cut, ground, polished, coated, analytical equipment and related consumables. Products include laboratory sintering equipment, coating equipment and so on. At present, it has been exported to 25 countries and regions such as the United States, Europe, and Southeast Asia, and has been well received by various scientific research units.

We have a mature technology research and development team, the number of technicians is 33, the company has 150 people, more than 500 square meters of office space, the factory covers an area of about 1,500 square meters located in Zhengzhou High-tech Zone Electronic Industrial Park. The products are mainly located in the research market, serving scientific research in the labs of universities and colleges, and can also customize products according to your needs.

Q. Are you a manufacturer or a trading company?

A. We are professional laboratory instrument manufacturers, have their own design team and factory, have mature technical experience, and can guarantee the quality of products and the optimal price.

Q. How is your company's product after-sales service system?

A. The product warranty period is 12 months, we can provide lifetime maintenance. We have professional pre-sales and after-sales departments that can respond to you within 24 hours to resolve any technical issues.

Q. How long is your delivery time? If I want to customize the instrument, how long does it take?

A.1. If the goods are in stock, it is 5-10 days. 2. We can provide customized services for our customers. It usually takes 30-60 days depending on the specifications of the custom instrument.

Q. Our country's power supply and plug are different. How do you solve it?

A. We can supply a transformer and plug according to your local requirements according to the power plug of different countries.

Q. How to pay?

A.T / T, L / C, D / P, etc., it is recommended to use Alibaba Trade Guarantee.

Q. How is the package of goods? Delivery methods?

A.1. Standard export fumigation sign wooden box packaging 2. Express, air, sea shipping according to customer requirements, find the most suitable way.

More questions, please contact customer service.
