• Model NO.：LE0050-10A
• High Accuracy：(5+L,200)µ M; L = Effective Range (mm)
• Max. Response Spee：72m,Min
• Scale Grating Pitch：20 Micron
• Scale Reference Point Pitch：50mm
• Operating Temperature：0 Degree to 40 Degree
• Transport Package：Standard Exporting Package
• Specification：SGS
• Trademark：Leader
• Origin：Guangdong
• HS Code：9031499090
• Production Capacity：500 PCS,Year

Usage:

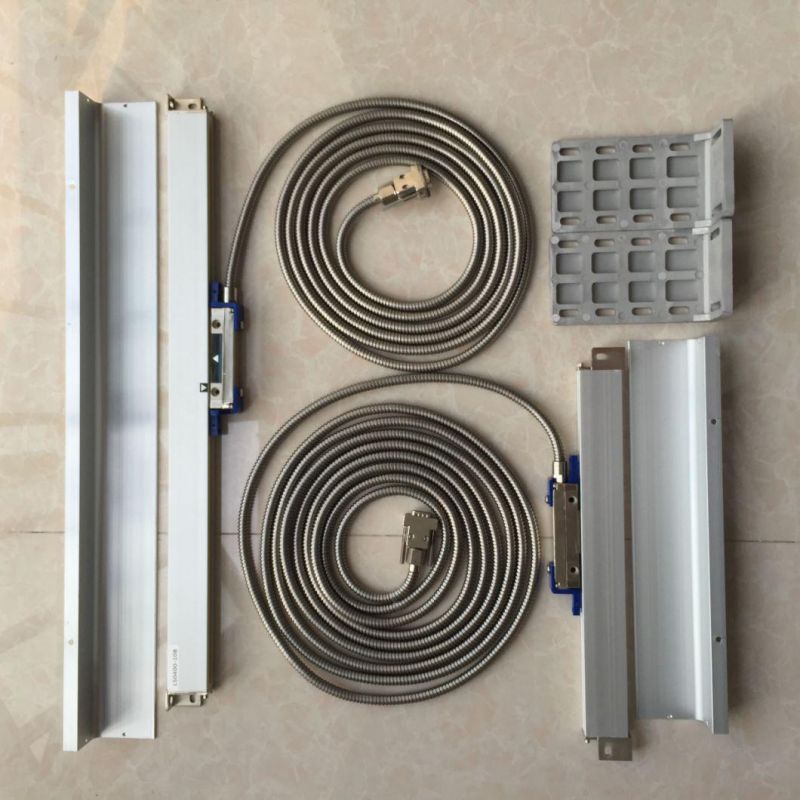

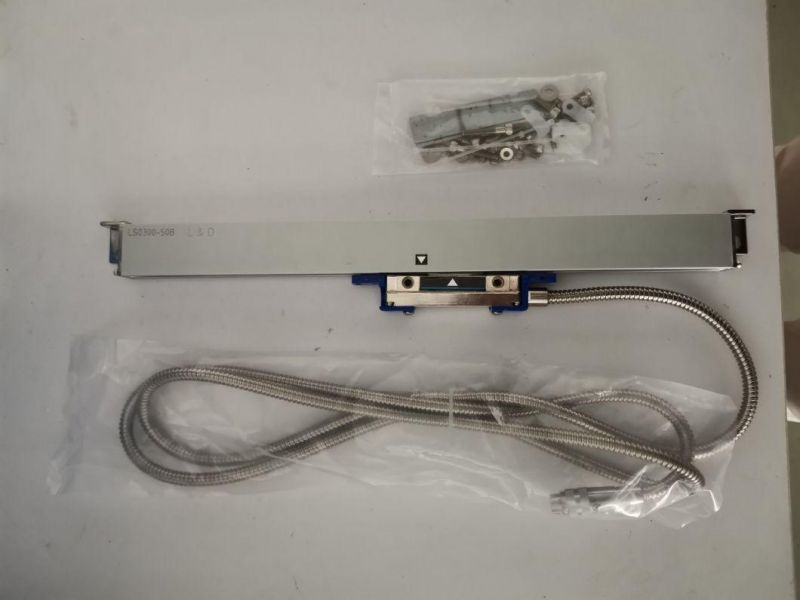

The linear encoder is used to accurately detect and display the displacement of machine tools or measuring equipment together with the digital readout, which is installed on the milling machine, lathe machine, drilling machine and so on.

Features:
1) High accuracy optical glass
2) Scale reference points at a 50mm pitch to determine datum point for machining
3) Using 5 sets of bearing, assures excellent repeatability, positioning, good sliding and durability
4) Special process of aluminum alloy for water/oil proof and anti-dust
5) Suitable for milling, drilling and grinding machines, lathers, XY-tables, etc
6) Enhanced vibration resistance
7) Top quality rubber lips to avoid contamination
8) Easy installation and maintenance

Parameters:
1) Resolution: 0.005mm (standard); 0.001mm (optional)
2) Effective range(ER): 2-128"(50mm-3200mm)
3) Output signal: 5V, TTL (standard); RS422(optional)
4) Output wave form: Two 90° Phase-shifted sinusoidal signals
5) High accuracy: ± (5+L/200)µ M; L = Effective range (mm)
6) Max. Response Speed: 72M/min
7) Scale grating pitch: 20μm
8) Scale reference point pitch: 50mm
9) Operating temperature: 0 degree to 40 degree
10) Extension cable:
If the travel of the linear encoder is from 50mm to 900mm, the cable is 2m long
If the travel of the linear encoder is from 1000mm to 1500mm, the cable is 5m long
If the travel of the linear encoder is from 1600mm to 3000mm, the cable is 10m long

ResER	50mm	100mm	150mm	200m	250mm
0.005mm	LE0050-50A	LE0100-50A	LE0150-50A	LE0200-50A	LE0250-50A
0.001mm	LE0050-10A	LE0100-10A	LE0150-10A	LE0200-10A	LE0250-10A
ResER	300mm	350mm	400mm	450mm	500mm
0.005mm	LE0300-50A	LE0350-50A	LE0400-50A	LE0450-50A	LE0500-50A
0.001mm	LE0300-10A	LE0350-10A	LE0400-10A	LE0450-10A	LE0500-10A
ResER	600mm	700mm	800mm	900mm	1000mm
0.005mm	LE0600-50A	LE0700-50A	LE0800-50A	LE0900-50A	LE1000-50A
0.001mm	LE0600-10A	LE0700-10A	LE0800-10A	LE0900-10A	LE1000-10A
ResER	1100mm	1200mm	1300mm	1400mm	1500mm
0.005mm	LE1100-50A	LE1200-50A	LE1300-50A	LE1400-50A	LE1500-50A
0.001mm	LE1100-10A	LE1200-10A	LE1300-10A	LE1400-10A	LE1500-10A
ResER	1600mm	1700mm	1800mm	1900mm	2000mm
0.005mm	LE1600-50A	LE1700-50A	LE1800-50A	LE1900-50A	LE2000-50A
0.001mm	LE1600-10A	LE1700-10A	LE1800-10A	LE1900-10A	LE2000-10A
ResER	2100mm	22000mm	2300mm	2400mm	2500mm
0.005mm	LE2100-50A	LE2200-50A	LE2300-10A	LE2400-50A	LE2500-50A
0.001mm	LE2100-10A	LE2200-10A	LE2300-10A	LE2400-10A	LE2500-10A
ResER	2600mm	2700mm	2800mm	2900mm	3000mm
0.005mm	LE2600-50A	LE2700-50A	LE2800-50A	LE2900-50A	LE3000-50A
0.001mm	LE2600-10A	LE2700-10A	LE2800-10A	LE2900-10A	LE3000-10A
