• Model NO.：GDD-1A
• Automatic：Volumetric Method Water Content Testing Equipment
• Features：Low Detect Limit, High Quality, Low Price
• OEM Supply：Yes
• Transport Package：Standard Export Packing
• Specification：58*37*34cm
• Trademark：GOLD
• Origin：Chongqing, China (Mainland)
• HS Code：9013809000
• Production Capacity：100 Set,Sets Per Month

Basic Info.

Model NO. GDD-1A Automatic Volumetric Method Water Content Testing Equipment Features Low Detect Limit, High Quality, Low Price OEM Supply Yes Transport Package Standard Export Packing Specification 58*37*34cm Trademark GOLD Origin Chongqing, China (Mainland) HS Code 9013809000 Production Capacity 100 Set/Sets Per Month

Product Description

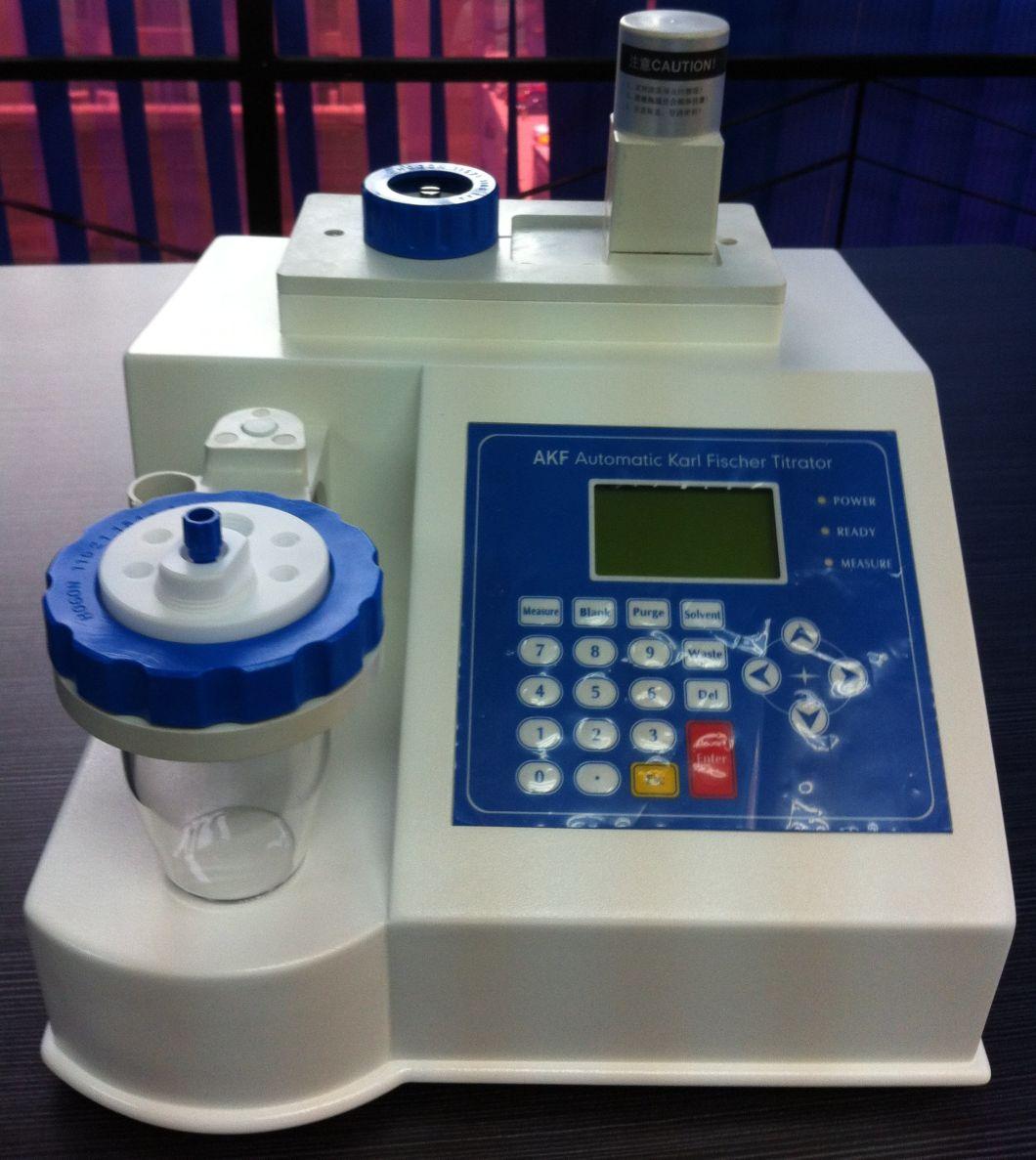

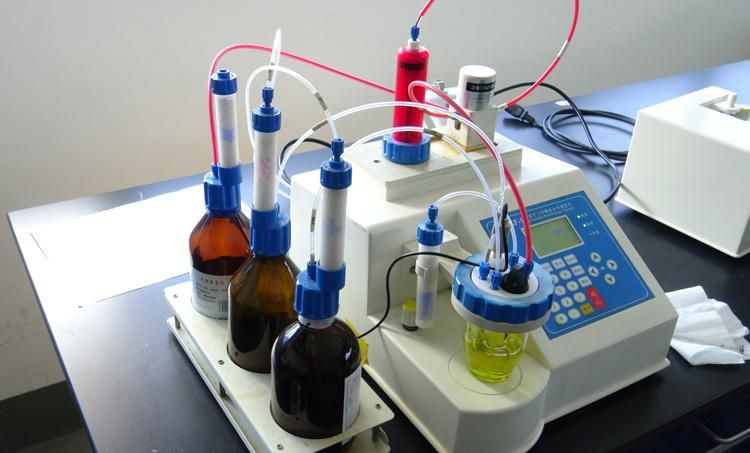

Automatic Karl Fischer Water Content Analyzer

Introduction:
Automatic Volumetric Karl Fischer water content analyzer adopts the newest mechanical electronic technology with humanistic interface.
It is reliable with wide measuring range(0.003%-100%), high precision and affordable for users.
Automatic Volumetric Karl Fischer water content analyzer can determine crystal water, adsorbent water in gas, liquid, solid samples.
It can automatically analyze, absorb and discharge liquid, adjust instrument failure, protect important parts, calibrate electrode parameters, etc.


Features:
1. It has dual platinum electrode polarization voltage to judge and show the reaction end-point,then stop titration.
2.Fully sealed system, in order to avoid ambient moisture's penetration.
3.By the function keys,the instrument can absorb reagent, measure, show end point, absorb solvent, discharge waste fluid, stir and adjust speed.
4.Displaying the mixed results simultaneously, titration dynamically display and automatic memory of test data.
5.Automatically deduct drifting value,automatically track the ambient moisture drifting and make sure the test data is precise.
6.The system is fully sealed,it can renew the solvent and discharge waste fluid  automatically, to avoid leak out toxic solvent.
7.Instrument status, dip stool sample volume, present time and drifting value,etc could be displayed instantly.
8.The Automatic Volumetric Karl Fischer water content analyzer runs smoothly, low noise.


Technical Parameters:

Item	Index
Measurement Range	0.003%-100%(water phase content)
Resolution	1μg
Titration repeatability	≤0.01
Titration linear coefficient	≥0.998
Error	≤2%
Test time	2-5min
Data storage	100 groups
Burette	200ml automatic burette
Titration accuracy	0.001ml
End-point Delay Time	10s-300s adjustable continuously
Power Supply	110~220V/50HZ
Gross weight	5.5kg

Certificate:
Exhabition:

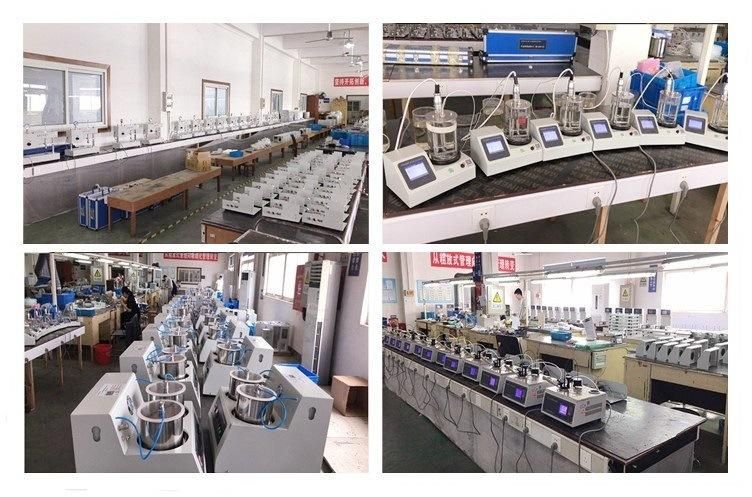

About us:
Chongqing Gold Mechanical & Electrical Equipment Co.,Ltd is a high-tech enterprise for researching, designing, developing and producing scientific and measuring instruments. With its continuous drawing of lessonas, unremitting innovation and borrowing of advanced technology from both at home and abroad, our company is now becoming a professional manufacture of oil tester,laboratory instrument,road building instrument.
