Industrial Online Turbidity / Salinity/ Free Residual Chlorine/ pH, Orp, Ec, TDS, RO, Do Tester with Sensor for Water Treatment (ZS-6850)
HEBEI JIRS IMPORT & EXPORT CO., LTD.- Display：LED
- Appliance：Water Treatment
- Certification：CE
- Measuring Range of Circulation Type：0-10,0-20,0-100, 0-400 Ntu
- Measuring Range of Submerged Type：0-500, 0-2000, 0-4000ntu
- Resolution：0.1%
Base Info
- Model NO.：ZS-6850
- Accuracy：+-1.5% (F.S.)
- Repetitive：+-1.0%
- Analog Output：Load <750 Omega; (4-20mA)
- Switched Output：2 Relays, 3A 220V AC,24V DC
- Power1：<=10W
- Power2：AC 220V+-10%, 50,60Hz
- Working Environment：Ambient Temp. 0-60c, Relative Humidity<=90% or Les
- Dimensions：96X96X115mm (H X W X D), 0.8kgs
- Hole Size：91X91mm ( H X W)
- Installation Mode：Panel Mounted
- Transport Package：Carton
- Specification：96*96*115mm, 0.8kgs
- Trademark：JIRS
- Origin：China
- HS Code：9028901000
- Production Capacity：100sets,Week
Description
Measuring Range Circulation Type:
0-10,0-20,0-100, 0-400 NTU Submerged Type:
0-500, 0-2000, 0-4000NTU
Measuring range can order as per request Display Large screen LCD Resolution 0.1% Accuracy ±1.5% (F.S.) Repetitive ±1.0% Analog output load <750Ω (4-20mA) Switched output 2 Relays, 3A 220V AC/24V DC Power ≤10W Power AC 220V±10%, 50/60Hz Working environment Ambient Temp. 0-60ºC, Relative Humidity ≤90% or less Dimensions 96×96×115mm (H X W X D), 0.8kgs Hole size 91×91mm H X W) Installation Mode Panel Mounted

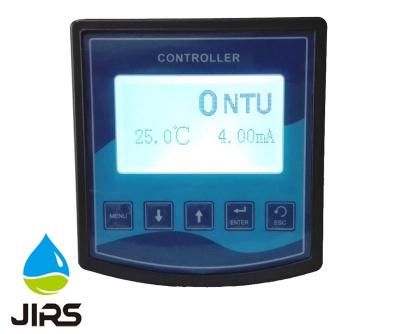

Front View:

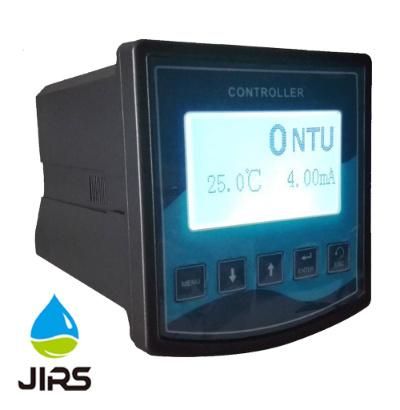

Side View:

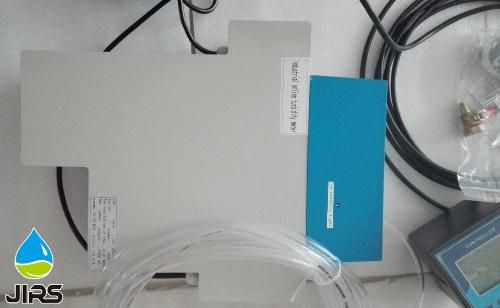

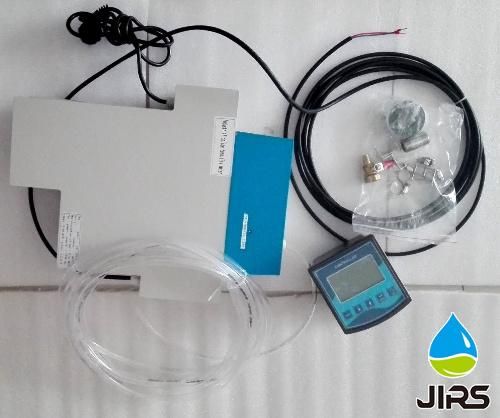

Circulation type- full set:

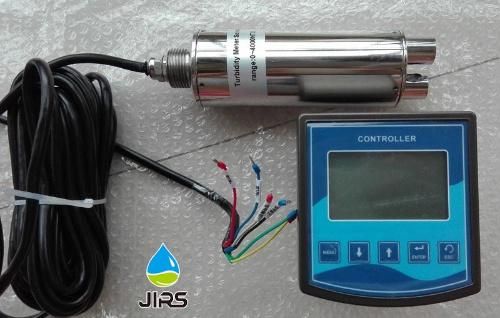

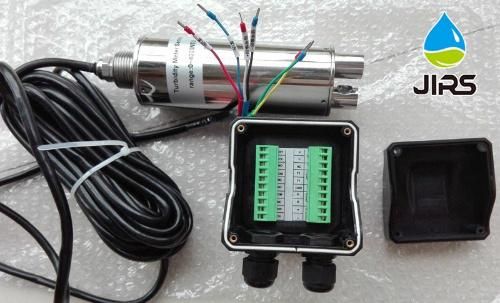

Submerged type- full set (with 1 m Length x G1" threaded submerged kit x S.S.316)
0-10,0-20,0-100, 0-400 NTU
0-500, 0-2000, 0-4000NTU
Measuring range can order as per request
Front View:
Side View:
Circulation type- full set:
Submerged type- full set (with 1 m Length x G1" threaded submerged kit x S.S.316)
