Electrochemical Multichannel Potentiostat
Wuhan Corrtest Instruments Corp., Ltd.- After-sales Service：Free
- Warranty：5 Years
- Number of Channels：4
- Customization：Support
- Potential Control Range：±10V
- Constant Current Control Range：±500mA
Base Info
- Model NO.：CS3104
- Application：Energy, Materials, Battery, Corrosion, etc
- Transport Package：Standard Carton
- Specification：4-channels
- Trademark：Corrtest
- Origin：China
- HS Code：9027809990
- Production Capacity：100 Sets,Year
Description
Bandwidth adjustment: automatic and manual, 8-decade frequency range
Techniques
*EIS module is included in only one channel of CS3104
Stable polarization
Simultaneous Measurements

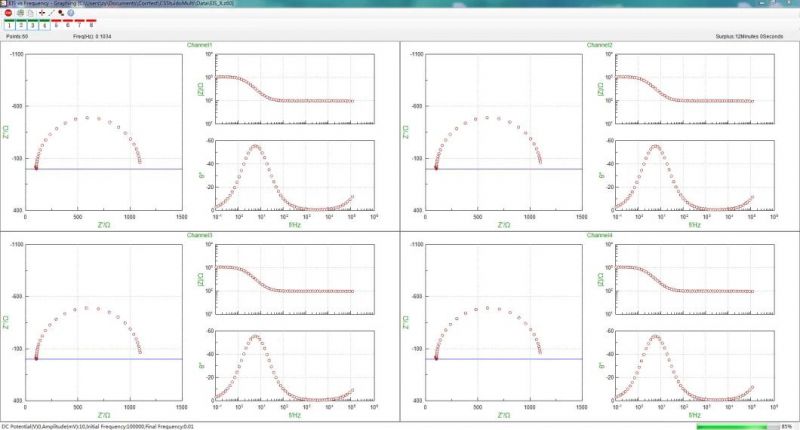

In each channel, the user can choose a same method. The parameters setting in each channel is the same. In the below picture for instance, choose four of the 8 channels to do EIS test, set the parameters in each channel once, then start EIS tests simultaneously.

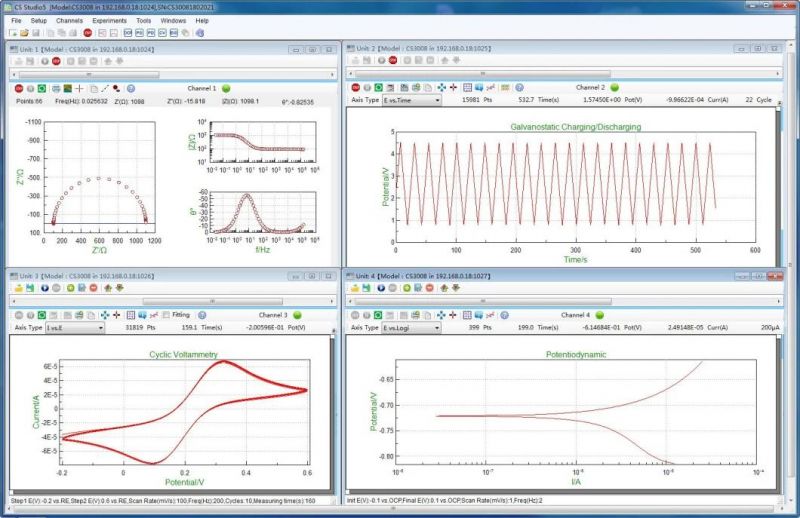

In each channel, the user can also choose different experiments. Set the parameters for experiment in each channel and start simultaneous measurements. As is shown in the below picture, EIS, galvanostatic charge and discharge, CV, and polarization curve tests are conducted at the same time.
Techniques
*EIS module is included in only one channel of CS3104
Stable polarization
- Open Circuit Potential (OCP)
- Potentiostatic (I-T curve)
- Galvanostatic
- Potentiodynamic (Tafel plot)
- Galvanodynamic (DGP)
- Multi Potential Steps
- Multi Current Steps
- Potential Stair-Step (VSTEP)
- Galvanic Stair-Step (ISTEP)
- Chronopotentiometry (CP)
- Chronoamperametry (CA)
- Chronocaulometry (CC)
- Linear Sweep Voltammetry (LSV)
- Cylic Voltammetry (CV)
- Staircase Voltammetry (SCV)
- Square Wave Voltammetry (SWV)
- Differential Pulse Voltammetry (DPV)
- Normal Pulse Voltammetry (NPV)
- Differential Normal Pulse Voltammetry (DNPV)
- AC Voltammetry (ACV)
- 2nd harmonic AC Voltammetry (SHACV)
- Fourier Transform AC Voltammetry (FTACV)
- Linear Stripping
- Staircase Stripping
- Square Wave Stripping
- Differential Pulse Voltammetry Stripping
- Normal Pulse Voltammetry Stripping
- Differential Normal Pulse Voltammetry Stripping
- Differential Pulse Amperometry (DPA)
- Double Differential Pulse Amperometry (DDPA)
- Triple Pulse Amperometry (TPA)
- Integrated Pulse Amperometric Detection (IPAD)
- EIS vs Frequency (IMP)
- EIS vs Time (IMPT)
- EIS vs Potential (IMPE)(Mott-Schottky)
- Cyclic polarization curve (CPP)
- Linear polarization curve (LPR)
- Electrochemical Potentiokinetic Reactivation (EPR)
- Electrochemical Noise (EN)
- Zero resistance Ammeter (ZRA)
- Battery Charge and Discharge
- Galvanostatic Charge and Discharge (GCD)
- Potentiostatic Charging and Discharging(PCD)
- Potentiostatic Intermittent Titration Technique (PITT)
- Galvanostatic Intermittent Titration Technique (GITT)
- Electrochemical Stripping/ Deposition
- Bulk Eletrolysis with Coulometry (BE)
- Rs Measurement
Simultaneous Measurements
In each channel, the user can choose a same method. The parameters setting in each channel is the same. In the below picture for instance, choose four of the 8 channels to do EIS test, set the parameters in each channel once, then start EIS tests simultaneously.
In each channel, the user can also choose different experiments. Set the parameters for experiment in each channel and start simultaneous measurements. As is shown in the below picture, EIS, galvanostatic charge and discharge, CV, and polarization curve tests are conducted at the same time.
