• Model NO.：TOC-2000,3000
• Weight：0-100Kg
• Power Source：AC220V±22V
• Customized：Non-Customized
• Detector：Ndir
• Measurement Range：0-30000mg,L (0-10000mg,L)
• Transport Package：Export Packing
• Specification：430*455*440mm
• Origin：China
• HS Code：9027500000
• Production Capacity：1000 PCS,Year

Basic Info.

Model NO. TOC-2000/3000 Weight 0-100Kg Power Source AC220V±22V Customized Non-Customized Detector Ndir Measurement Range 0-30000mg/L (0-10000mg/L) Transport Package Export Packing Specification 430*455*440mm Origin China HS Code 9027500000 Production Capacity 1000 PCS/Year

Product Description

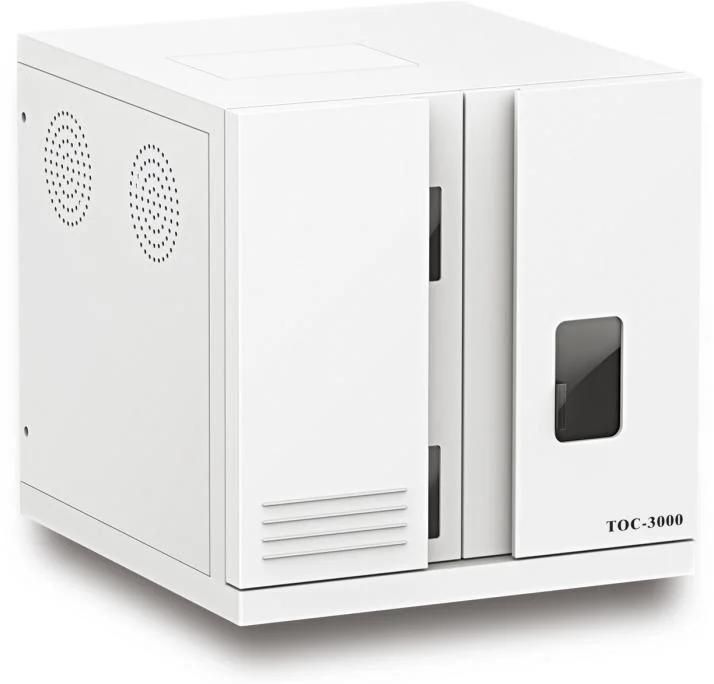

TOC Analyzer

General
TOC (Total Organic Carbon), which directly shows the total organic content, is regarded as a key factor to evaluate pollution potentials of organic compound in water.
Our TOC can meet requirements for application in water analysis, environment monitoring, pharmaceutical production, quality control, processing control etc.
So far, we have 2 models TOC: TOC-2000 (Catalytic combustion oxidation) and TOC-3000 (Wet chemical oxidation by UV) which are widely used for quality control of drinking water, industrial water, sewage and waste water. Meanwhile, it has wide application in monitoring of River, Lake, Sea and surface water.



Features

1. Signal management system with our own patent law which has great advantages of online setting, real-time monitoring, self testing and flow speed control to ensure high performance and safe operation.
2. Low current system design also ensures operation safety.
3. Different temperature setting for various samples ensures complete sample digestion so as to get more accurate measuring data.
4. Adjust cooling module power according to sampling volume which improves drying performance to ensure dry gas into the detector.
5. Automatic leak check system to avoid operation mistakes and improve instrument performance, so as to ensure operation safety and instrument's safety
6. Flow rate controlling system to avoid any effect caused by flow rate fluctuation which ensures accurate data.
7. TOC detector with 24 bits data solution extends monitoring range. Controlling system with 32bin processing technology greatly improves performance.

Specification

Model	TOC-2000	TOC-3000
Detector	NDIR	NDIR
Parameters	TC, TIC, TOC	TC, TIC, TOC, NPOC
Digestion Mode	High Temperature Combustion	Wet chemical oxidation by UV
Operation Mode	PC Control	PC Control
Application	Liquid Sample, Gas Sample(coming soon), Solid Sample(coming soon)	Liquid Sample, Gas Sample(coming soon)
Gas Requirement	Oxygen, Nitrogen≥99.995%	Nitrogen≥99.995%
Measurement Range	0-30000mg/l	0-10000mg/l
Detection Limit	50μg/l	5μg/l
Repeatability	3%	3%
Maximum Salinity	85g/l	85g/l
Power	220±10V,50/60HZ, 1KW	220±10V,50/60HZ, 1KW
Size	430*455*440mm	430*455*440mm
