Dual Block Digital Reactor with 30 Positions
Shanghai Lianhua Industrial Co., Ltd.- After-sales Service：on-Line Support
- Warranty：One Year
- Application：Laboratory Heating Sample
- Detect Time：1-999 Minutes
- Measurement Range：45-190 Degree
- Accuracy：0.5 Degree
Base Info
- Model NO.：5B-1B(V8)
- Number of Cuvettes：15 Vials X 16 mm + 15 Vials 16 mm (Dual Block)
- Transport Package：Express, Carton
- Specification：380x240x150mm
- Trademark：Lianhua or no logo
- Origin：China
- HS Code：9031809090
- Production Capacity：50000 Units , Year
Description
1 >Product Introduction

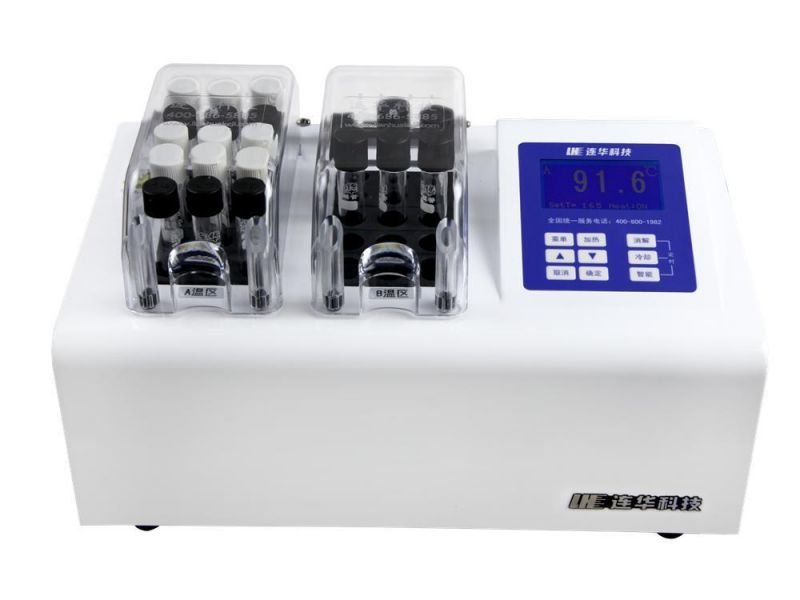

Independent double heating block 30 positions reactor.
2 >Functional characteristics
(01) Independent double heating block: Support two digestion temperature at the same time, total 30 positions.

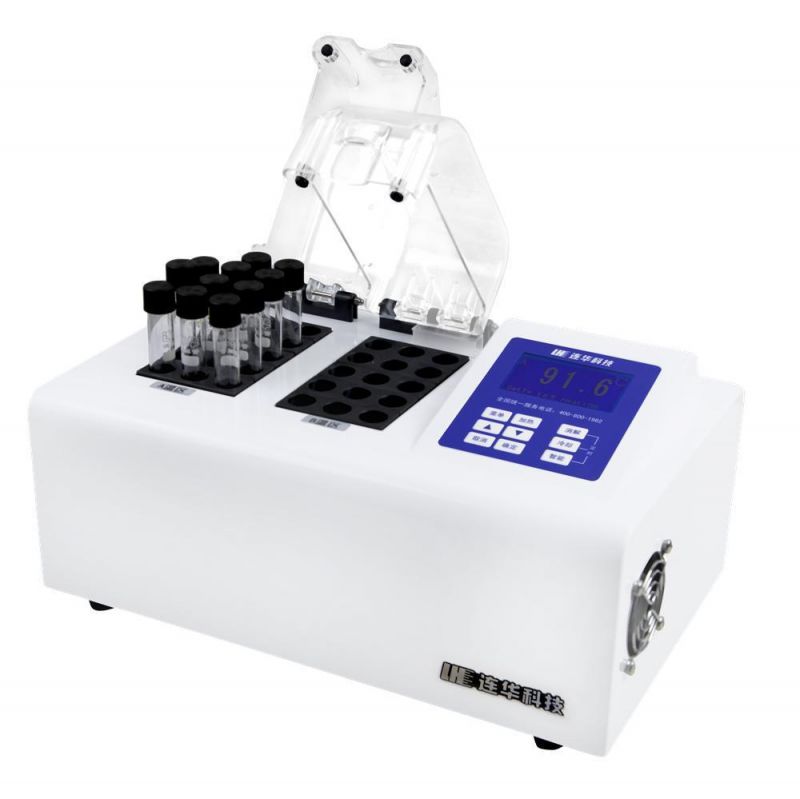

(02) With transparent protective cover.
(03) High quality material: Aviation material, prevent scald effectively.
(04) LCD display.
(05)Temperature from 45 to 190°C and digestion time is free to control.
(06)Automatically stops heating and power supply after timing;
(07)Providing a digital timer with automatic switch-off feature and audible signal to alert technicians.
(08) Automatical timer when the temperature is raised to preset temperature.
(09) User can distinguish water samples by the digital number of the holes.
3 >Technical Parameters
| Instrument name | Intelligent Double Temperature Model Reactor |
| Instrument model | 5B-1B(V8) |
| Sample positions | 30 |
| Heating rate | Heated from room emperature to 165 °C in 10 minutes |
| Temperature accuracy | ±0.5°C |
| Digestion temperature | 45-190°C |
| Pre-storing | COD,TP,Total nitrogen |
| Timing accuracy (SEC / h) | 0.2 |
| timing switch | 3 |
| Digestion quantity | 15 |
| Digestion capacity | 0-10ml |
| Digestion tube diameter | 16mm |
| Heating liquid depth | 80mm |
| Protective cover | Transparent integrated security protection |
| Display | LCD |
| Button operation | 9 |
| Time-delay protection | √ |
| Intelligent heating | √ |
