Lab Automatic Coulomb Coal Total Sulfur Analyzer

GUANGZHOU ICLEAR HEALTHCARE LIMITED
  • Element：Sulfur
  • Analysis：Combustion
  • Application：Sulfur Analyzer
  • Function：Storage
  • Weight：57kg
  • Power Source：AC220V±22V

Base Info

  • Model NO.：CHL-5E-AS3200B
  • Conforms to Method：GB,T 214, ISO20336
  • Min Analysis Time：3min
  • Analysis Resolution：0.01%
  • Max. Sampleloading：20 Sample Per Batch Automatically
  • Sample Mass：45-55mg for Coal, 80-100mg for Oil
  • Transport Package：Wooden Packing
  • Specification：Dimensions(L*W*H): 996mm*530mm*412mm
  • Trademark：ICLEAR
  • Origin：China
  • Production Capacity：300pieces,Year

Description

Model5E-AS3200 Automatic Sulfur AnalyzerConforms to MethodGB/T 214, ISO20336Analysis Resolution0.01%Max. Sample Loading20 sample per batch automaticallySulfur Range0.01%-30% customized range availableMin. Analysis Time3minOperation Temp0-1200°c selectable (for coal 1150ºC is recommended, for oil 920ºC is recommended.)Temp.Control Precision±3ºCSample Mass45-55mg for coal, 80-100mg for oilPower SupplySingle phase, AC220V±10%, 50/60Hz, 3kWNet Weight57kgDimensions(L×W×H)996mm×530mm×412mm

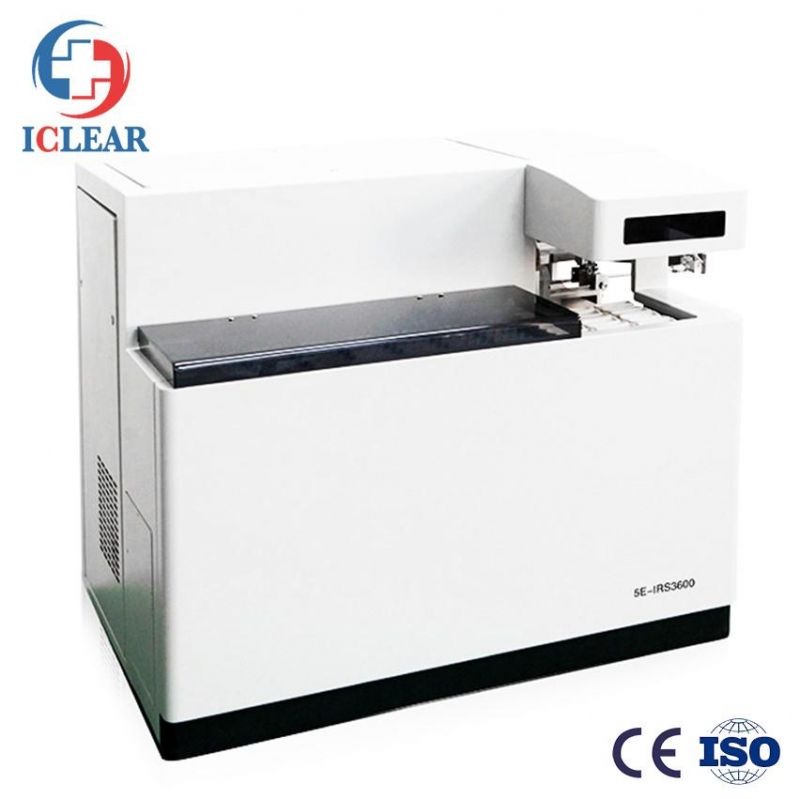

Automatic Infrared Sulfur Analyzer
5E-IRS3600
Lab Automatic Coulomb Coal Total Sulfur Analyzer
Lab Automatic Coulomb Coal Total Sulfur Analyzer
Lab Automatic Coulomb Coal Total Sulfur Analyzer
Lab Automatic Coulomb Coal Total Sulfur Analyzer
Features:
High Automation
1. Unique dual oxygen lance to increase the combustion efficiency.
2. Maximum throughput with auto-loader, available for 60 samples per batch and easy to add or reduce sample quantity during analysis.
3. Patented sample delivering system realizes smooth work flow of pulling and discharging samples.
4. The sample mass can be automatically sent to the computer by balance connection.
5. Available for unattended operation by intelligent sensor.
6. Auto self-diagnosis and auditory alarm.

Accuracy and Stability
1. Top quality ultra-low drift infrared cell to ensure stability of the testing results.
2. Reliable single Si-C spiral tube heating components.
3. Unique gas tightness structure to avoid the effect of SO2 in air.

Environmental Protection
Exhaust emissions ventilation system to avoid air pollution of laboratory.
 Model5E-IRS3600 Automatic Infrared Sulfur AnalyzerConforms to MethodAS 1038.6.3.3, ASTM D1552, ASTM D3177, ASTM D4239, ASTM D5016,
ISO19579, GB/T 214, GB/T 25214, GB/T 28732, BS 1016Max. Sample loadingUp to 60 sample per batch manuallyAnalysis MethodInfrared absorptionAnalysis Resolution0.001%Sulfur Range0.01%-30% Customized range availableAnalysis Time per Sample≤120sAnalysis Temp.1350ºCTemp.Control Precision±1ºCSample Mass200mg-400mg (300mg is recommended)Power SupplySingle phases, AC220V±10%, 50/60Hz, ≤4kWNet Weight70kgDimensions(L×W×H)750mm×650mm×700mm> if the machine broke after a period of use, can I return it back and get a refund?
