• Model NO.：SYD-264
• OEM：Yes
• Automaticity：Self-Automatic
• Transport Package：By Wooden Case
• Specification：270mm*160mm*600mm
• Trademark：Shangyi
• Origin：China
• HS Code：9031809090
• Production Capacity：999,Month

Basic Info.

Model NO. SYD-264 OEM Yes Automaticity Self-Automatic Transport Package By Wooden Case Specification 270mm*160mm*600mm Trademark Shangyi Origin China HS Code 9031809090 Production Capacity 999/Month

Product Description

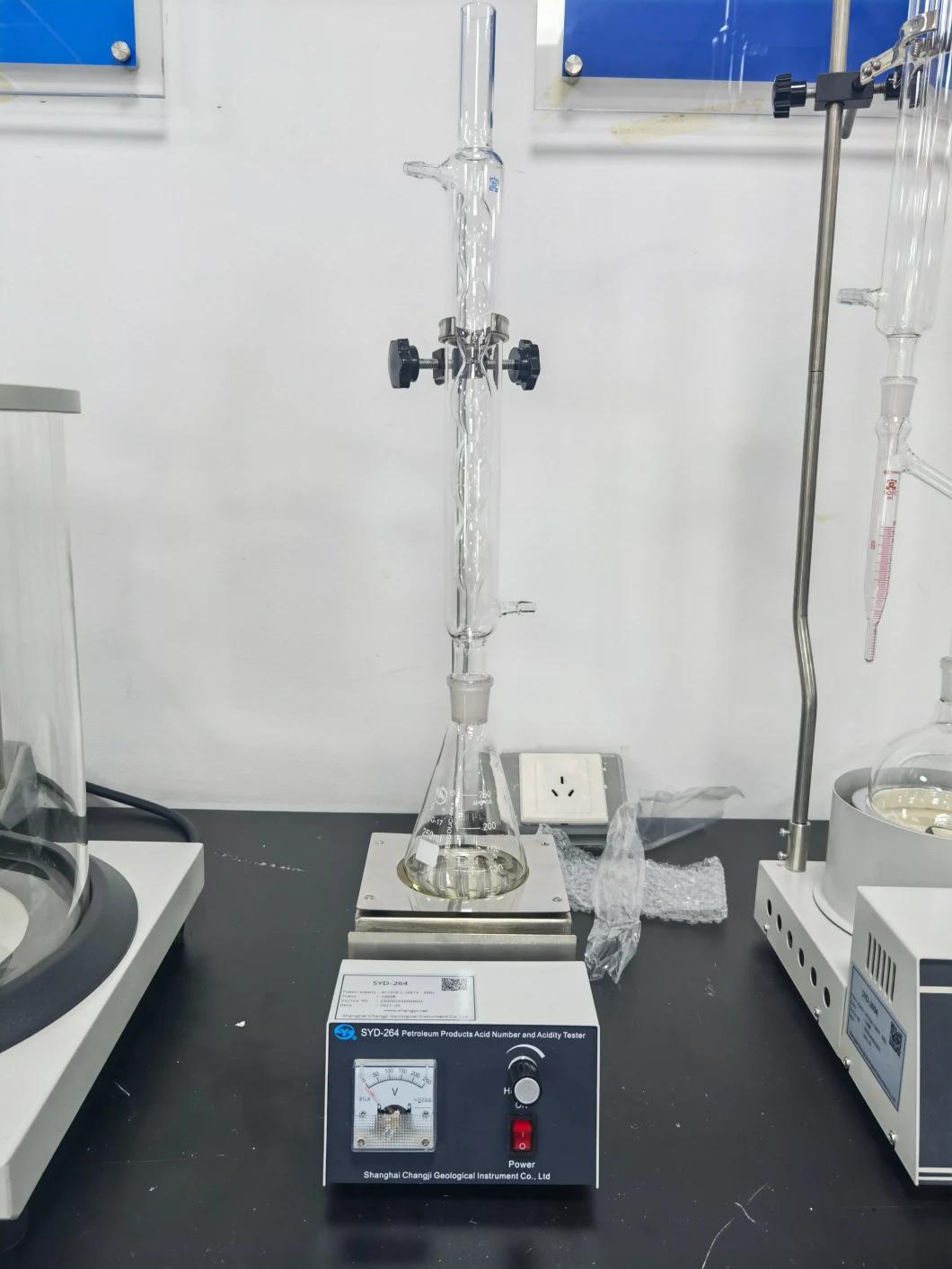

SYD-264 Acid Number and Acidity Tester
Summary
  The instrument is designed and made as per the National Standard of People's Republic of China GB/T264 and ASTM D664 Standard Test Method for Acid Number of Petroleum Products and GB/T258 Standard Test Method for Acidity of Gasoline, Kerosene and Diesel Oil. It is suitable to determine acidity of gasoline, kerosene and diesel oil without any ethyl liquids, and the acid number of petroleum products. The test method uses ethanol to extract acid component in the sample and then titrates it using alkali solution.
  The instrument is also suitable to determine acid number of transformer oil and turbine oil as per the National Standard of People's Republic of China GB/T7599 Test Method for Acid Number of Transformer Oil, Turbine Oil in Service.

I. Main technical features
1. The instrument is fully designed as the requirements of GB/T264,GB/T258
2. It adopts electric furnace to heat.Heating power is continuously adjustable from 100W~1000W.
3. Small design and stainless steel electric furnace table.Easy to install and operate.

II. Main technical specifications
1. Power supply: AC 220 V±10%, 50 Hz;
2. Power range of heater: 100 W~1000 W, continuously adjustable.
3. Precision of titration tube: scale division is 0.02 ml
4. Ambient temperature: ≤35 ºC
5. Relative humidity: ≤85%
6. Maximum Power consumption: 1200 WIII,SYD-264 Acid Number and Acidity Tester Accessories and Documents List

No.	Name	Unit	Qty	Memo
1	Conical flask(250 × 24)	Piece	2
2	Condenser pipe(300/240 × 2 spherical)	Piece	1
3	Buret (2ml, pedestal)	Piece	1
4	Adjustable heater	Set	1
5	Support rod	Piece	1
6	Condenser pipe holder	Pair	1
7	Buret seat (wooden)	Piece	1
8	Fuse(6A,Φ5×20)	Piece	2
9	Power line(250V6A)	Piece	1
10	Operation manual	Piece	1
11	Quality certificate	Piece	1
12	Product guarantee	Piece	1

IV,SYD-264 Acid Number and Acidity Tester's Reagent and Auxiliary Equipments

No.	Name	Specification	Quantity	Memo
1	Potassium hydroxide	Analytical pure 10g	1 bottle
2	Ethyl alcohol 95%	Analytical pure 500ml	4 bottles
3	Alkali blue 6B	100g	1 bottle
4	Cresol red	100g	1 bottle

Notes:
1,The reagent and equipments for installing the instrument are supplied by end-users themselves.
2,The usage,management and saving of poisonous and harmful reagent,pls operate according to the relative principle.
3,PLS read the operation manual and industry standard before using the instrument.
