Combustible Gas Toxic Gas CH4 Ndir Sensor Fixed Gas Detector

HENAN WEIGUO INTELLIGENT TECHNOLOGY CO., LTD.
  • After-sales Service：Online Service
  • Warranty：1 Years
  • Brand：Airradio
  • Customized：Customized
  • Portable：Non Portable
  • Certification：CE, RoHS

Base Info

  • Model NO.：WD6200
  • Gas：H2S
  • Type：Non-Dispersive Infrared Analysis
  • Measuring Gas：Combustible,Catalytic Sensor
  • Gas Detected：Toxic Gas & O2,Electrochemical Sensor
  • Target Gas：Vocs CO2 Gas,Pid Sensor

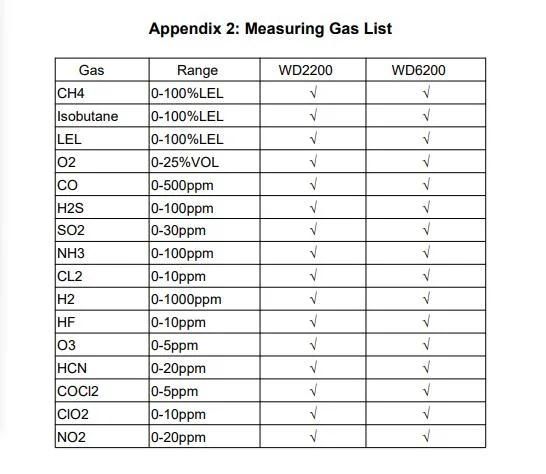

  • Measuring Range：Refer to Our Gas List
  • Sensor Life：5 Years
  • Measuring Type：Diffuse Naturally
  • Response Time：Equal or Less Than 10s
  • Signal Output：Signal Output
  • Cable / Distance：1.5 mm2, 3 Wire, Shielded,1000m (Maximum)
  • Ingress Protection：IP65
  • Dimension and Weight：293 X 263 X 108mm, About 2.7kg
  • Approval：Ex D Iic T6
  • Housing Material：Chamber: Aluminum Alloy Sensor Cover: Stainless St
  • Operation Voltage：DC24V
  • Consumption：<2W
  • Transport Package：Carton
  • Specification：293 x 263 x 108mm
  • Trademark：Airradio
  • Origin：China
  • Production Capacity：50000piece,Year

Description

Measuring gasCombustibleCatalytic sensorMeasuring gasToxic gas & O2Electrochemical sensorMeasuring gasCO2 gasNDIR sensorMeasuring gasVOCsPID sensorMeasuring rangeRefer to our gas listRefer to our gas listMeasuring accuracy±5%F.S.±5%F.S.Sensor lifeCatalytic sensor3 yearsSensor lifeElectrochemical2 years (1 year for O2 sensor)Sensor lifeNDIR sensor5 yearsSensor lifePID sensor0.6 to 1 yearMeasuring typeDiffuse naturallyDiffuse naturallyResponse timeCatalytic sensorT90≤30sResponse timeElectrochemicalT90≤60sResponse timeNDIR sensorT90≤10sResponse timePID sensorT90≤10sSignal output 4-20mAAlarm output signa 3 programmable relaysCable / distance 1.5 MM2, 3 wire, shielded,1000m (maximum)Conduit connection G3/4"Mounting type Wall mountedWorking temperature Toxic gas: -20ºC~+50ºC   Combustible: -40ºC~+70ºCWorking humidity ≤95%RH (no condensation)Operation voltage DC24V±25%Consumption <2WIngress Protection IP65Housing material Chamber: Aluminum alloy
Sensor cover: Stainless steelDimension and weight 293 x 263 x 108mm, about 2.7kgApproval Ex d IIC T6

Combustible Gas Toxic Gas CH4 Ndir Sensor Fixed Gas Detector

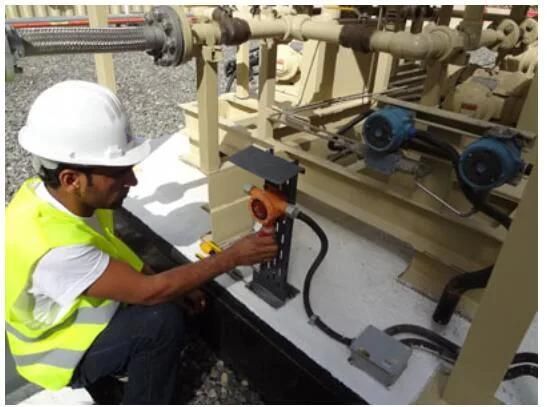

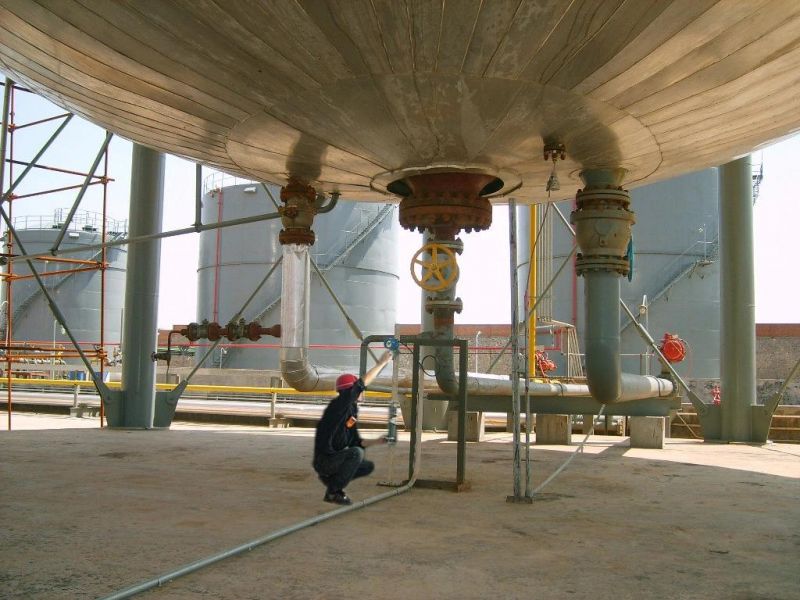

Application and Successful application Cases

Steelworks, Petrochemical plants, Shipyards, Water treatment plants, Mines, Power plants, Food industry etc.
Combustible Gas Toxic Gas CH4 Ndir Sensor Fixed Gas DetectorCombustible Gas Toxic Gas CH4 Ndir Sensor Fixed Gas Detector

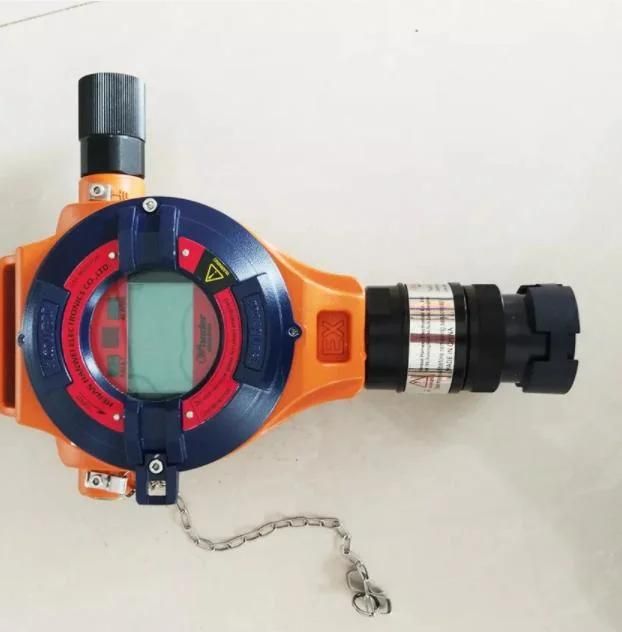

Detail Image
Combustible Gas Toxic Gas CH4 Ndir Sensor Fixed Gas DetectorCombustible Gas Toxic Gas CH4 Ndir Sensor Fixed Gas Detector

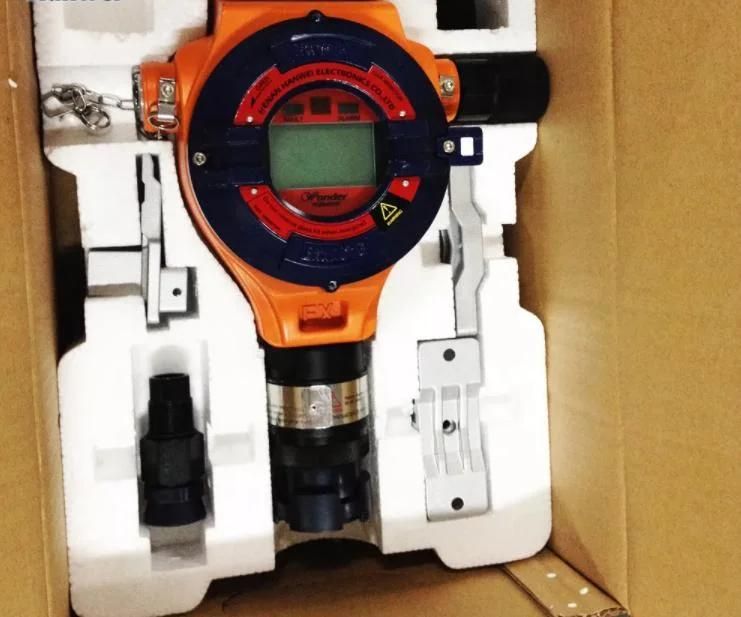

Packaging & Delivery
Combustible Gas Toxic Gas CH4 Ndir Sensor Fixed Gas DetectorCombustible Gas Toxic Gas CH4 Ndir Sensor Fixed Gas Detector

Company Profile
We are a leading manufacturer of sensors for listed companies (SZ30007)in China. There are more than 20 subsidiaries (around core sensors)at home and abroad, many world-renowned equipment manufacturers also have our sensors commercially,  Like HoneywellVega,Draeger all our partner.There are also many European companies as well as Italian companies.
