• Model NO.：JT-4
• Acrylic Round Beaker：0.6L,Φ95mm,H130mm
• Speed Range：10~1000rpm,in 1rpm Increment
• Speed Accuracy：±0.5%
• Speed Gradient：10~1000 ,S. Just for Round Beaker
• Running Time：Each Step: 0-99min, 10 Steps Each Program
• Transport Package：Standard Export Package
• Specification：Gross Weight: 11
• Trademark：BIOBASE
• Origin：Shandong, China
• Production Capacity：2000unit,Month

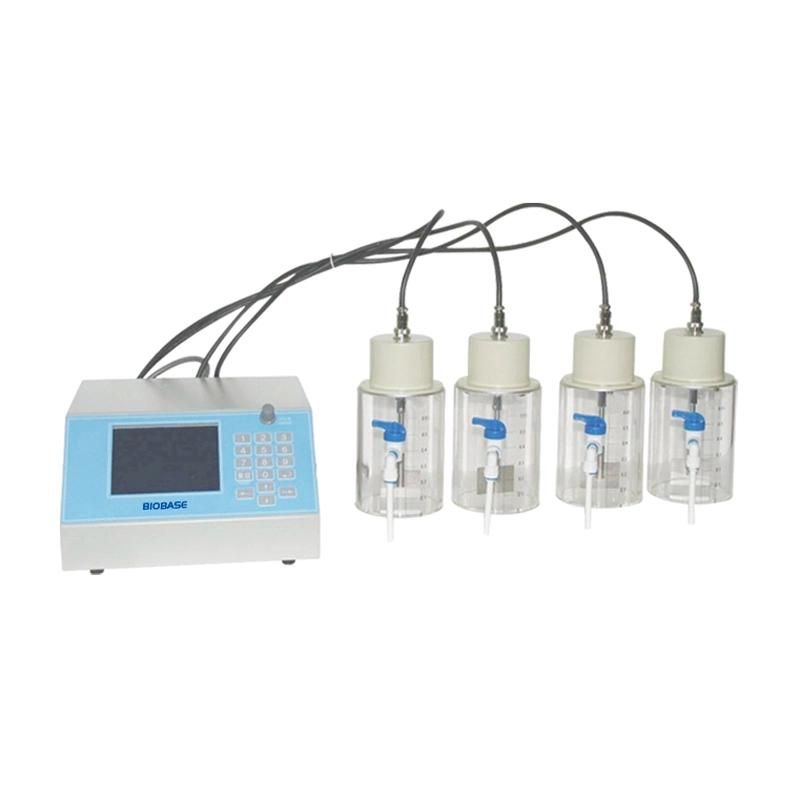

BIOBASE carry out the jar test during procedure of water treatment Jar Tester with cheap price

It is used to simulate the processes of adding additives, reaction, coagulation and settling which happen during the procedure of water treatment (including purification of drinking water and sewage treatment),widely used in scientific research,water supply plant and sewage treatment plant,colleges and universities,water treatment agent manufacturer etc.

Futures of Jar Tester

*LCD display

*Can store 12 groups of programs

*Synchro run, independent run

*Automatic  calculating G & GT value (speed gradient )

*Automatic agent dosing and elevating

Model

BJT-2

BJT-4

BJT-6

Type

Two Beakers
Portable

Four Beakers
Portable

Six Beakers
Desktop

Acrylic Round Beaker

1.0L,Φ110mm,H180mm

0.6L,Φ95mm,H130mm

1.0L,Φ110mm,H180mm

Acrylic Square Beaker

/

/

1.5L, 110×110×170mm

Speed Range

10~1000rpm,in 1rpm increment

Speed Accuracy

±0.5%

Speed Gradient

10~1000 /s. Just for round beaker

Running Time

Each step: 0-99min, 10 steps each program

Temp. Range

0-50ºC

Temp. Accuracy

±1ºC

Power Consumption

40  W

80  W

180 W

Power Supply

AC110/220V±5%,50/60Hz

External Size(W*D*H )mm

540*330*170
Include Carrying Case

550*390*210

Include Carrying Case

1080*350*400

Package Size( W*D*H)mm

560*470*250

610*450*270

950*480*530

Net Weight(kg)

7.2
Include Carrying Case

9.5

Include Carrying Case

30

Gross Weight(kg)

8.5

11

33
