• Model NO.：SPT-H
• HS Code：90248000
• Production Capacity：100PCS,Year

Basic Info.

Model NO. SPT-H HS Code 90248000 Production Capacity 100PCS/Year

Product Description

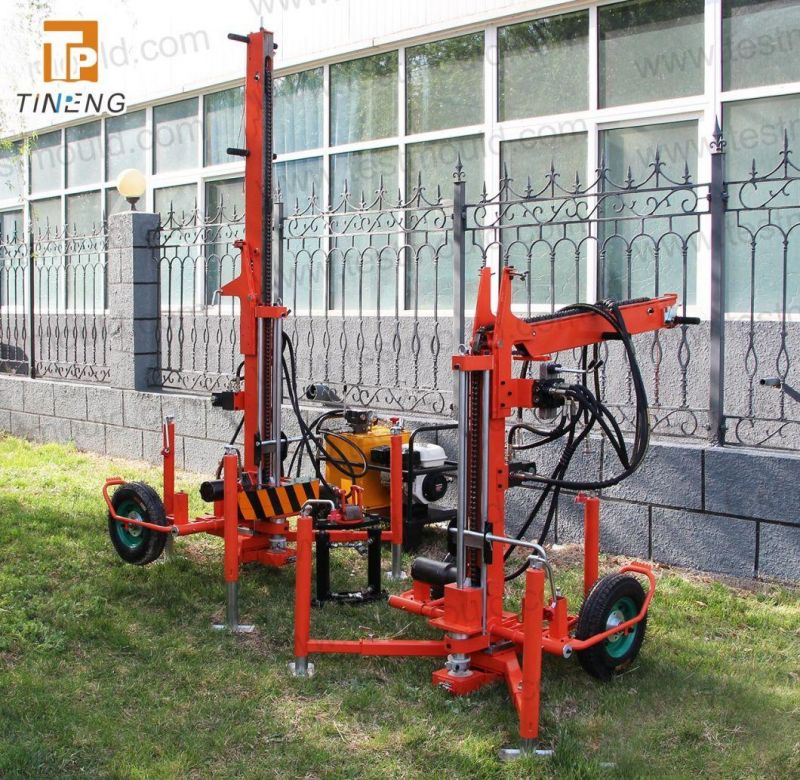

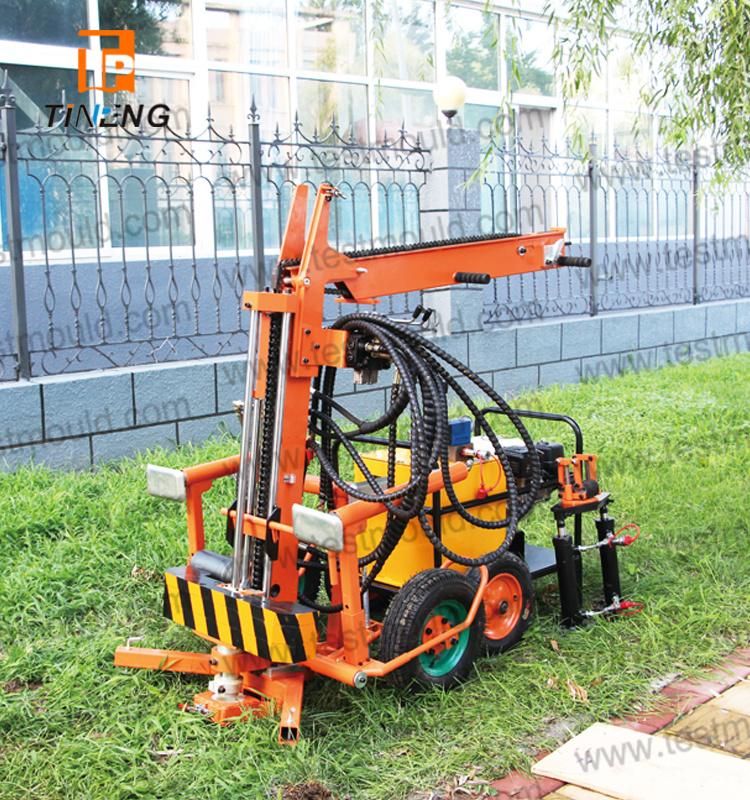

DPSH universal Dynamic Probing Rig for DPL, DPM, DPH and SPT

Manually transported dynamic probing rig on wheels with hydraulic motor and folding mast, suitable for super-heavy dynamic probing and SPT too.
The dynamic probing rig SPT-H can be used for soil-bearing capacity tests, compaction tests and for soil sampling. Dynamic probing standards DPL (10kg), DPM (30kg), DPH (50kg), DPSH (63.5kg) as well as SPT can be carried out.
Drop height can be varied between 500 and 750 mm by means of an adaptor bracket.
The integrated three-legged foot with crank legs allows for soil sampling at ease. The dynamic probing rig SPT-H is driven by a hydraulic motor fed by a separate hydraulic power pack.
Furthermore the SPT-H version offers the vital advantage that the hydraulic power unit can serve a rod extraction unit as well.

Features


1. The dynamic probing rig SPT-H is a highly functional soil investigation machine, easy to transport due to the folding mast feature.
2. It is versatilely suitable for working in confined spaces and is displaced in outdoor terrains by hand.
3. It features a three-legged foot with crank legs for solid erection on site. Suitable for perpendicular working in all positions.
4. Dynamic Probing DPL, DPM, DPH and SPT.
