Analysis Instrument

Home > Product > Gas Analyzer

K800IR Fixed Infrared Gas Detection Transmitter with Acousto-Optic Alarm

Nanjing KELISAIKE Safety Equipment Co., Ltd.
  • Warranty：1 Year
  • Brand：Kelisaike
  • Customized：Customized
  • Portable：Non Portable
  • Certification：CE
  • Gas：H2S

Base Info

  • Model NO.：K800IR
  • Type：Electrochemical Gas Analyzer
  • Voltage：DC 24V
  • Operating Temperature：-20 Degree ~ 50 Degree
  • Signal Output：4 to 20mA
  • Explosion-Proof Grade：Ex D Iic T6
  • Certificate：CE
  • Detection Range：0-100ppm
  • Low Alarm：10ppm
  • High Alarm：20ppm
  • Transport Package：Carton
  • Specification：1.8kg
  • Trademark：KELISAIKE
  • Origin：Nanjing, China
  • HS Code：8531100000
  • Production Capacity：300

Description

Gas TypeDetection RangeResolutionResponse TimeAlarm Set Point (low/high)CH40~5%VOL0.1%VOLT90≤60scustomizedCO20~5%VOL
(0-5000ppm)0.01%VOL
(1ppm)T90≤60scustomizedK800IR Fixed Infrared Gas Detection Transmitter with Acousto-Optic Alarm
Power supplyDC 24V
Output signal4-20mA standard industrial signal output
Operating temperature-20°C~ 50°C
DisplayBacklight LED
Relative humidity15%~90% RH (non-condensing)
Atmospheric pressure86~106Kpa
Explosion-proof gradeEx d IIC T6
Warranty1 year

Common Used Gas Detection List
No.Detection gasRangeAccuracy90% response timeMin readoutLow/high alarm
1PH30-5ppm±5%(F.S)≤25s0.01ppm0.3ppm/5ppm
2O20-30%vol±5%(F.S)≤15s0.1%vol18%vol/23%vol
3EX(LEL/CH4)0-100%lel±5%(F.S)≤15s1%lel25%lel/50%lel
4CO0-2000 ppm±5%(F.S)≤25s1 ppm50ppm/100ppm
5H2S0-100 ppm±5%(F.S)≤30s1 ppm10ppm/20ppm
6NO20-20 ppm±5%(F.S≤25s0.1 ppm3ppm/10ppm
7NO0-250 ppm±5%(F.S)≤60s1 ppm25ppm/50 ppm
8SO20-100 ppm±5%(F.S)≤30s0.1 ppm2 ppm /10 ppm
9CL20-20 ppm±5%(F.S)≤30s0.1 ppm1 ppm /10 ppm
10NH30-200ppm±5%(F.S)≤50s1 ppm25 ppm /50 ppm
11H20-1000 ppm±5%(F.S)≤60s1 ppm50 ppm /100 ppm
12HCN0-50ppm±5%(F.S)≤200s0.1ppm10ppm/20ppm
13HCL0-20ppm±5%(F.S)≤60s0.1ppm5ppm/10ppm
14CH4(IR)0-5%vol±5%(F.S)≤60s0.01%volcustomized
15CO2(IR)0-5%vol
(0-5000ppm)		±5%(F.S)≤60s0.1%vol
(1ppm)		customized
16PID(VOCs)1-1999ppm±5%(F.S)≤200.1ppmcustomized
17C3H80-5%vol±5%(F.S)≤60s0.01%volcustomized
18O30-10ppm±5%(F.S)≤30s0.02ppm1ppm/2ppm

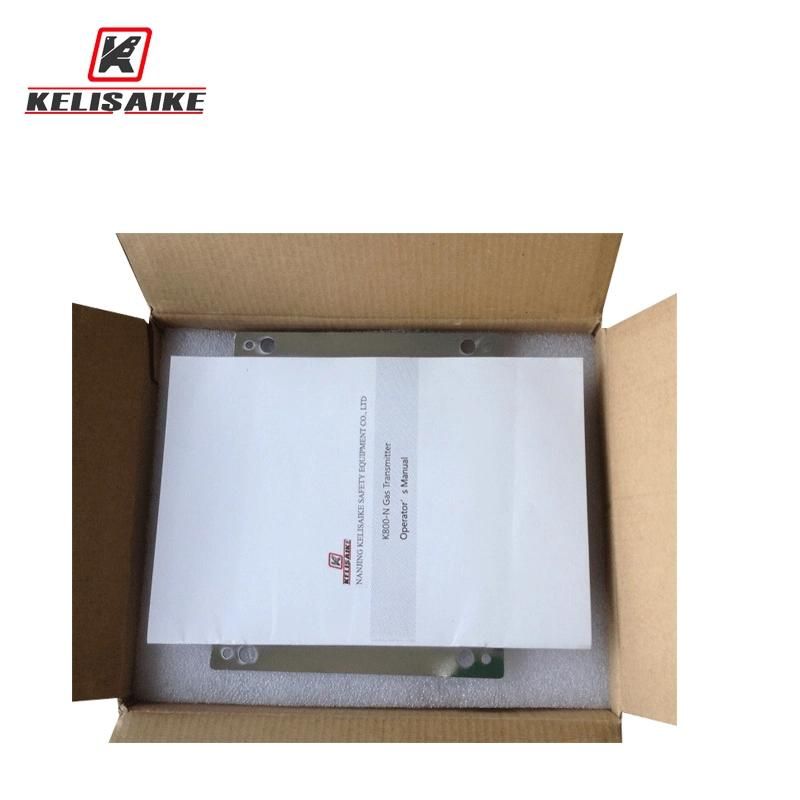

>>>Packing
K800IR Fixed Infrared Gas Detection Transmitter with Acousto-Optic Alarm

K800IR Fixed Infrared Gas Detection Transmitter with Acousto-Optic Alarm
K800IR Fixed Infrared Gas Detection Transmitter with Acousto-Optic Alarm

K800IR Fixed Infrared Gas Detection Transmitter with Acousto-Optic Alarm
>>>Our Services
1. For all our products, we offer a 1 year warranty and life-long maintenance.
2. All inquiries will be replied in 24 hours.
3. We will provide technical support; our engineers will help to solve the problems you met.
4. We can provide OEM and ODM service.
5. Our factory is located in Nanjing city, welcome to visit our factory.
6. All products will be fully checked and well packed before shipment, and qualification certificate will be provided.

>>>Calibration
For the calibration of KELISAIKE products, please feel free to contact us for help.

>>>Why choose KELISAIKE?
1. Mutual benefit : We have our own factory.So compared other comprtitors,the price will be more favorable in the same quality..
2. Professional engineers: We have 3 engineers who have experience more than 10 years and more than 5 engineer assistants works on the gas detection line, with Hi-Tech equipments.We offer more accurate and stable products.
3. Customize : We have strong R&D team that can custom product as your request.
4. Free OEM service : (a) Silk-printing your Logo(≥100PCS).  (b) Design your color box(≥500PCS).
5. Mix order : We accept mix order, different model and small quantity order.
6. After service:(a) 1 Year warranty. (b) If you found any inferior-quality products from us, we will send new ones to replace for free in your next order after confirmed.

>>>FAQ
Q: Are you a manufacturer?
A: Sure. We are the professional safety equipments manufacturer and have the experience of produce and market over 12 years in this field.
Q: Are you provide customization?
A: Of course. It includes gas type, gas detection range, gas alarm point etc.Please contact us about the detailed specifications.
Q: Could I order one piece sample for the quality test?
A: Sure. We recommend to check the sample before order.
Q: If I order big quantity, what's the good price?
A: Please send the details enquiry to us, such as the Item Number, Quantity for each item, Quality request, Logo, Payment Terms, Transport method, Discharge place etc. We will make the accurate quotation to you as soon as possible.
