• Model NO.：TP-002C
• Power Supply：AC220V±22V 50Hz
• Total Power：500W
• Ambient Temperature：10ºC-30ºC
• Environment Humidity：≤85%
• Dimensions：390 mm×270 mm×430 mm
• Weight：12kg
• Transport Package：Export Standard Wooden Case
• Specification：390 mm*270 mm*430 mm
• Trademark：TOP
• Origin：Chongqing
• HS Code：9031809090
• Production Capacity：100 Sets,Month

Basic Info.

Model NO. TP-002C Power Supply AC220V±22V 50Hz Total Power 500W Ambient Temperature 10ºC-30ºC Environment Humidity ≤85% Dimensions 390 mm×270 mm×430 mm Weight 12kg Transport Package Export Standard Wooden Case Specification 390 mm*270 mm*430 mm Trademark TOP Origin Chongqing HS Code 9031809090 Production Capacity 100 Sets/Month

Product Description

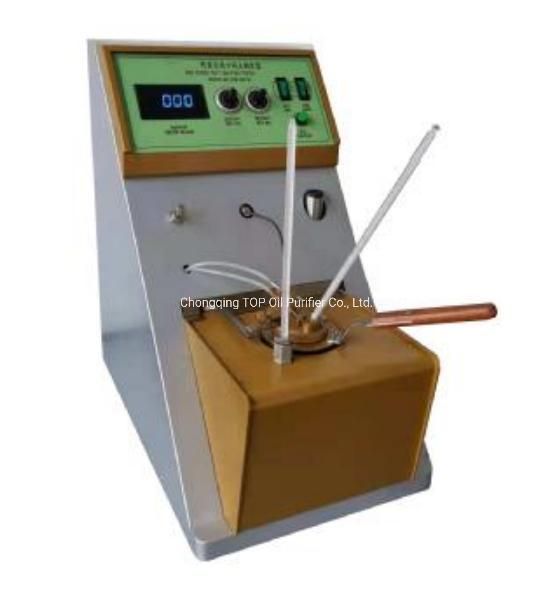

TP-002C Abel closed flash point tester

• Applicable standard:GB/T 21789 ,ISO13736 , IP 170
• Applicable range:Suitable for the determination of flash point of petroleum products and other liquids between -30 ° C and 70 ° C
• Features:
  • Electric ignition, automatic completion of switching, ignition, etc..
  • Digital display heating voltage, intuitive and clear, easy to control heating process.
  • Heating uses a solid state regulator to control the rate of temperature rise.
  • Electric ignition, eliminating the human error of the sweep time.
  • The test cup is covered with a stirring device, which can be freely disassembled for easy test.
  • Stirring rate continuously adjustable to meet the needs of different samples.
•  Technical parameters:
  • Test range:-30~70ºC(-30 ~ 18.5 °C need to be connected to a low temperature circulating cold bath)
  • Flame diameter:3~4mm
  • Heating rate:1ºC/min
  • Stirring motor:0-40  rev/min (continuously adjustable)
• Working conditions:
  • Power supply:AC220V±22V 50Hz
  • Total power:500W
  • Ambient temperature:10ºC~30ºC
  • environment humidity:≤85%
  • Gas source: liquefied petroleum gas or propane.
  • working environment:No dust and corrosive gases, no strong magnetic field interference, inside the fume hood
• Dimensions and weight:
  • Dimensions:390 mm×270 mm×430 mm
  • Weight:12kg
  • Work description (use in the range of 19 to 70 ° C)

Operation:

1. First, fill the heating bath from the water injection port on the inclined surface of the instrument (this water should be about 10 °C lower than the room temperature), and add the test cup bath in the middle of the heating bath to the water with a depth of not less than 38 mm.
2. Take the sample into the test cup, cover the test cup cover, push the slide on the lid into the pull rod, and put the stirring upper sleeve into the lower sleeve to connect the gas hose.
3. Plug in the bath thermometer and sample thermometer.
4. After checking, connect the 220V power supply and turn on the power switch.
5. Adjust the heating potentiometer so that the sample in the test cup is heated at a rate of 1 ° C / min, and simultaneously turn on the stirring switch to adjust to the appropriate speed.
6. When the temperature of the test sample reaches 9 °C below the expected flash point, press the ignition switch to perform the ignition test.
7. An ignition test was performed for  every  0.5 °C increase.
8. The temperature at which the flash point occurs is recorded when a flash point occurs.
9. At the end of the test, turn off the power. Clean the test cup and top cover to prepare for the next test.
