• Model NO.：DO-6800
• Accuracy：Ug,L: +-1.0%Fs, Mg,L: +-0.5%Fs, +-0.3c
• Temp. Compensation：Ntc 10K, 0.0c-60.0c, Auto Temperature Compensation
• Current Output：Isolation to Protect, 4 ~ 20mA Signal Output
• Contact Capacity：10A,220V AC (Resistive Load)
• Output Load：Load <500omega; (0-10mA), Load <750omega; (4-20mA)
• Power：AC 220V+-10%, 50,60Hz
• Working Environment：Ambient Temp. 0-60c, Relative Humidity<=90%
• Dimensions：96X96X115mm(H X W X D), 0.9kgs
• Hole Size：91X91mm (H X W)
• Installation Mode：Panel Mounted
• Transport Package：Carton
• Specification：96*96*115 mm, 0.9kg
• Trademark：JIRS
• Origin：China
• HS Code：9028901000
• Production Capacity：100sets,Week

Basic Info.

Model NO. DO-6800 Accuracy Ug/L: +-1.0%Fs, Mg/L: +-0.5%Fs, +-0.3c Temp. Compensation Ntc 10K, 0.0c-60.0c, Auto Temperature Compensation Current Output Isolation to Protect, 4 ~ 20mA Signal Output Contact Capacity 10A/220V AC (Resistive Load) Output Load Load <500omega; (0-10mA), Load <750omega; (4-20mA) Power AC 220V+-10%, 50/60Hz Working Environment Ambient Temp. 0-60c, Relative Humidity<=90% Dimensions 96X96X115mm(H X W X D), 0.9kgs Hole Size 91X91mm (H X W) Installation Mode Panel Mounted Transport Package Carton Specification 96*96*115 mm, 0.9kg Trademark JIRS Origin China HS Code 9028901000 Production Capacity 100sets/Week

Product Description

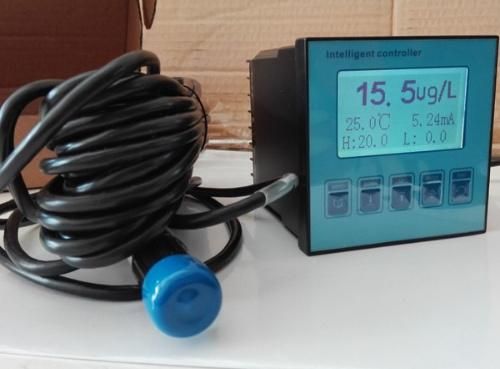

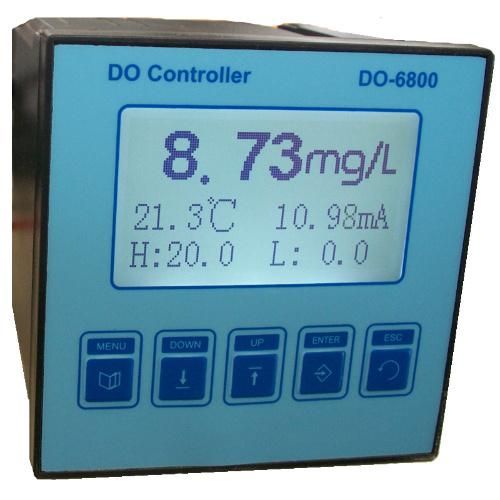

Online Dissolved Oxygen/Temperature controller
Code: DO-6800

Description:

1. DO-6800 online Dissolved Oxygen Temperature Transmitting Controller is a micro computerized precision instrument.
2. The large LCD display, English menu operation.
3. Multi-parameter display at the same time: the value of dissolved oxygen, temperature, output current, alarm points, etc. Intuitive and easy to read, and alarm for range over run
4. Screen displays alarm status and accompanied by a switch ON / OFF signal output
5. Automatic Temperature Compensation: Automatic 0ºC to 60ºC
6. Communication  function  (optional):  RS-485  communication  interface (MODBUS protocol is partially compatible), 4 to 20 mA current output corresponding to the DO value can be set freely.
7. Notepad: can store 50 measurements, the user can record measurement data.
8. Hysteresis amount can be set freely to avoid frequent switching relay action
9. Watchdog function: to ensure that the instrument will not crash
10. Core devices from famous foreign brands
11. Restore the factory settings. Power-down protection> 10 years

Application:
Widely used in the detection and control of dissolved oxygen in various water treatments, boiler water deoxygenization, environmental monitoring, aquaculture and other fields.

Main technique Specification:

Function                                  Model	DO-6800 online Dissolved Oxygen Temperature Transmitting Controller
Measuring Range	0.00 - 20.00 mg /L , 0 - 200.0 ug /L, (optional) 0-60ºC
Resolution	0.1 ug/L, 0. 01 mg/L, 0.1ºC
Accuracy	ug/L: ±1.0%FS; mg/L:±0.5%FS, ±0.3ºC
Display	Large Screen Multi-parameters LCD
Temp. Compensation	NTC 10K, 0.0ºC-60.0 ºC Automatic temperature compensation
Current output	isolation to protect, 4 ~ 20mA signal output
Control output	two sets of ON / OFF relay contacts, divided into the high point, low alarm signal , optically isolated output.
Contact capacity	10A/220V AC (Resistive Load)
Output load	load <500Ω (0-10mA), load <750Ω (4-20mA)
Power	AC 220V±10%, 50/60Hz
Working environment	Ambient Temp. 0-60ºC, Relative Humidity ≤90%
Dimensions	96×96×115mm(H X W X D), 0.9kgs
Hole size	91×91mm H X W)
Installation Mode	Panel Mounted
