Portable 4oxv Oxygen Purity Online Gas Analyzer (P860)
BeiJing Cape Golden Gas System Company LTD- After-sales Service：Supplied, Onsite, Online
- Warranty：18 Months
- Brand：Cape-Golden
- Customized：Customized
- Portable：Portable
- Certification：CE, ISO13485, ISO9001
Base Info
- Model NO.：P860
- Gas：O2
- Type：Electrochemical Gas Analyzer
- Monitor：Five-Digital Dynamic LED Monitor, Visible Display
- Measure Mode：Air in-Flowing or Convection Diffusing
- Sample Gas Flow：150~300ml,Min
- Signal Output：4~20mA

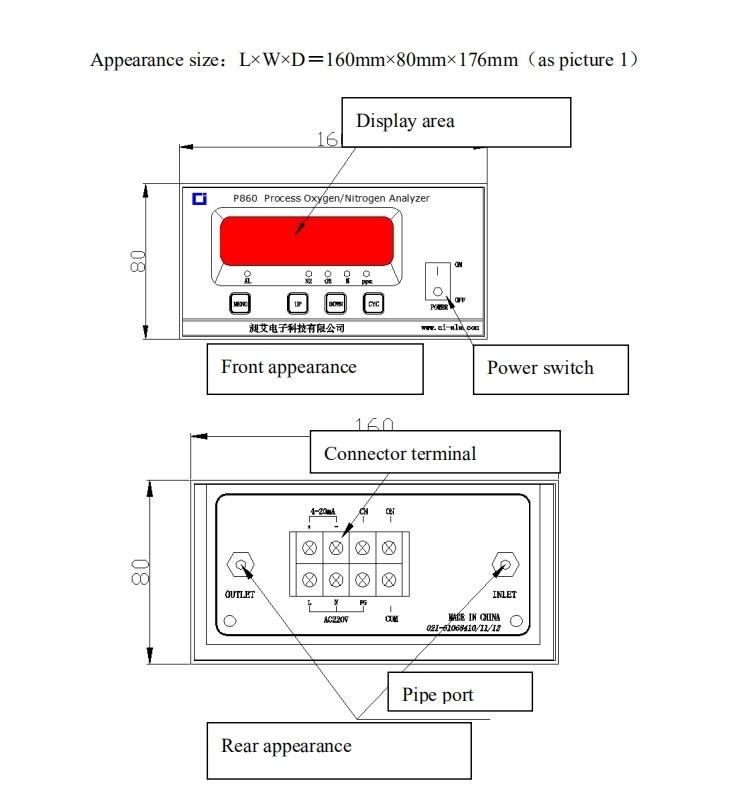

- Appearance Dimension：160mm×80mm×176mm (W×h×d)
- Weight：1kg
- Transport Package：Sea,Air Packing
- Specification：P860
- Trademark：Cape Golden
- Origin：Beijing, China.
- HS Code：9027100090
- Production Capacity：200 Units Per Month
Description
Feature
- New pattern long-life conversion ion current tester with fast response and high sensitivity Oxygen Analyzer.
- N2 or O2 concentration display.
- Checking the sensor working state automatically and unique double-line working change mode extending the sensor's life.
- Setting alarm value freely.
- High precision, automatic temperature compensation, eliminating the impact of environmental temperature Oxygen Analyzer.
Technical Specification
| Monitor | Five-digital dynamic LED monitor, visible display window: 90mm×25mm |
| Measure Range | 10ppm~21%, 100ppm~21%, 1000ppm~21% O2 |
| Measure Mode | Air in-flowing or convection diffusing |
| Sample Gas Flow | 150~300ml/mim |
| Accuracy | ±2% F.S |
| Response Time | 90% of FS reading ≤20 seconds |
| Ambient Temp | -10ºC~+50ºC |
| Ambient Humidity | <80%RH |
| Stability | <±1%.FS (168h) |
| Signal Output | 4~20mA |
| Power Supply | 220±10% VAC, 50/60Hz, the power loss ≤6VA |
| Sensor Life | 20000 hours at 25ºC and 1 atm |
| Warranty | 12 months analyzer; 12 months sensor |
| Weight | 1kg |
| Appearance Dimension | 160mm×80mm×176mm (W×H×D) |
| Opening Size | 151mm×75mm |
