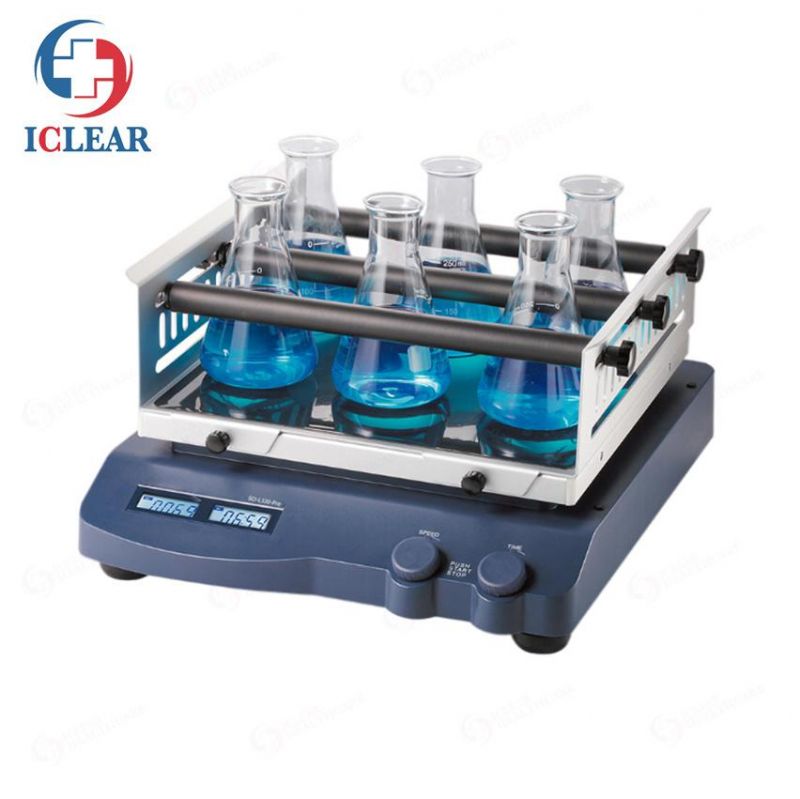

LCD Display Numerical Control Linear Shaker Laboratory Three-Dimensional Shaker
GUANGZHOU ICLEAR HEALTHCARE LIMITED- After-sales Service:Online Technical Support
- Warranty:1 Year
- Display:Digital Display
- Power Supply:100-240V
- Certification:CE
- Weight:13.5kg
Base Info
- Model NO.:CHL-L330Pro
- Voltage:100-240V,50,60Hz
- Max.Load Capacity:7.5kg
- Time Settings Range:1min-19h59min
- Speed Range:100-350rpm
- Power:30W
- Motor Type:Brushless DC Motor
- Transport Package:Carton
- Specification:370*420*100mm
- Trademark:ICLEAR
- Origin:China
- Production Capacity:100 Units,Month
Description
CHL-L330Pro
Key Features
Max. load capacity is 7.5kg(L330) and 2.5kg(L180) with platform.
Double LCDs for independent display of time and speed.
Wide range of platforms for use with a variety of vessels.
Maintenance- free brushless DC motor.
Over speed detection and protection.Specifications CHL-L330Pro Amplitude 10mm Max. load capacity (with platform) 7.5kg Motor type Brushless DC motor Motor input power 28W Motor output power 15W Power 30W Time settings range 1min-19h59min Speed range 100-350rpm Speed display LCD Timer display LCD Voltage 100-240V, 50/60Hz Protection class IP21 Dimension [W x D x H] 370×420×100mm Weight 13.5kg Permissible ambient temperature and humidity 5-40°C 80%RH Data connector RS232 CHL-O330Pro
Key Features
• Max. load capacity is 7.5kg(O330) and 2.5kg(O180) with platform
• Double LCDs for independent display of time and speed
• Used with a wide variety of accessories
• Maintenance- free brushless DC motor
• Over speed detection and protection
• Remote function provides PC control and data transmissionSpecifications CHL-O330Pro Orbital diameter 10mm Max. load capacity (with platform) 7.5kg Motor type Brushless DC motor Motor input power 28W Motor output power 15W Power 30W Time settings range 1min-19h59min Speed range 100-500rpm Speed display LCD Timer display LCD Voltage 100-240V,50/60Hz Protection class IP21 Dimension [W x D x H] 370×420×100mm Weight 13.5kg Permissible ambient temperature and humidity 5-40°C 80%RH Data connector RS232 Specifications CHL-R330Pro Tilt angle 9° Max. load capacity (with platform) 10kg Motor type DC motor Motor input power 40W Motor output power 24W Speed range 10-70rpm Speed display LCD Timer display LCD Time settings range 1min-19h59min Voltage 100-240V, 50/60Hz Power 50W Weight 9kg Permissible ambient temperature and humidity 5-40°C 80%RH Dimension[W×D×H] 360×410×200mm Protection class IP21 CHL-D3309Pro
Key Features
• Three-dimensional rocking motion with an angle of 9°
• Max. load capacity is 5kg with platform
• Speed range of 10-70rpm
• Double LCDs for independent display of time and speed
• Various of platform accessoriesSpecifications CHL-D3309Pro Tilt angle 9° Max. load capacity (with platform) 5kg Motor type DC motor Motor input power 40W Motor output power 24W Speed range 10-70rpm Speed display LCD Timer display LCD Time settings range 1min-19h59min Voltage 100-240V, 50/60Hz Power 50W Weight 9kg Permissible ambient temperature and humidity 5-40°C 80%RH Dimension[W×D×H] 360×430×106mm Protection class IP21 > if the machine broke after a period of use, can I return it back and get a refund?
iClear HealthCare has a secure procedure to do the product return and repair, please check our service
policy for more information. > I have NO experience buying medical stuff in China. Is the quality good?
There are multiple options in China for medical equipment, iClear HealthCare aims to provide high-quality products at a competitive price. > How long will it take to reach me after the payment?
By Express, it takes 5-7 working days to arrive;
By Air, 3-4 days to the international airport;
By Sea, around 25-55 days to the seaport. >> Can you help set up a clinic or provide complete equipment for hospital projects?
We have a series of complete solutions for clinics and hospital equipment setup. iClear HealthCare has helped set up several clinics and 2 hospitals in East Asia, African, and Saudi and supply all the medical equipment. These projects have saved a lot of time, money, and energy for our customers.
Key Features
Max. load capacity is 7.5kg(L330) and 2.5kg(L180) with platform.
Double LCDs for independent display of time and speed.
Wide range of platforms for use with a variety of vessels.
Maintenance- free brushless DC motor.
Over speed detection and protection.
Specifications
Key Features
• Max. load capacity is 7.5kg(O330) and 2.5kg(O180) with platform
• Double LCDs for independent display of time and speed
• Used with a wide variety of accessories
• Maintenance- free brushless DC motor
• Over speed detection and protection
• Remote function provides PC control and data transmission
Specifications
CHL-R330Pro
Key Features
• Rocking motion angle 9°
• Max. load capacity is 10kg with platform
• Speed range of 10-70rpm
• Double LCDs for independent display of time and speed
• Wide range of platforms for use with a variety of vessels
Specifications
Key Features
• Three-dimensional rocking motion with an angle of 9°
• Max. load capacity is 5kg with platform
• Speed range of 10-70rpm
• Double LCDs for independent display of time and speed
• Various of platform accessories
Specifications
