• Model NO.：GD-7305A
• Display：LCD Display
• Maximum Power Consumption：2000W
• Certificate：ASTM D1401; GB,T 7305; ISO 6614
• OEM Service：Available
• Structure：Vertical Structure
• Transport Package：Standard Wooden Case
• Specification：550mm*340mm*720mm
• Trademark：GOLD
• Origin：Chongqing, China
• HS Code：9031809090
• Production Capacity：100 Set,Sets Per Month

Basic Info.

Model NO. GD-7305A Display LCD Display Maximum Power Consumption 2000W Certificate ASTM D1401; GB/T 7305; ISO 6614 OEM Service Available Structure Vertical Structure Transport Package Standard Wooden Case Specification 550mm*340mm*720mm Trademark GOLD Origin Chongqing, China HS Code 9031809090 Production Capacity 100 Set/Sets Per Month

Product Description

Introduction:
GD-7305A Water separability teater  is designed and made as per standards GB/T7305 Petroleum oils and synthetic fluids - Determination of demulsibility characteristics, GB/T7605 Determination of demulsibility characteristics of turbine oils in service and ASTM D1401 Standard Test Method for Water Separability of Petroleum Oils and Synthetic Fluids.
Water separability tester is suitable to determine the water separability of petroleum oils and synthetic fluids.
The demulsibility characteristics tester can be widely used in fields of petroleum, electricity, chemical industry, colleges and scientific research institutions.


Main Technical Features:
GD-7305A  Water separability teater adopts small bath and desktop structure. It is easy to operate and good-looking. It is the improved product of our company.
GD-7305A  Water separability teater adopts electric motor to stir automatically. The temperature is accurate and uniform. It can do determination for 3 samples one by one.
The lifting of stirring device is convenient. The stirring paddle has good concentricity with cylinders. No tremble or touching the cylinder wall.
GD-7305A  Water separability teater adopts LCD to show the diagram. Intuitive and clear.
Man-machine dialog. Menu type input.Easy to use.



Main Technical Parameter:

1	Temperature range	(Room temp.∼110)ºC
2	Temperature control accuracy	±0.02ºC
3	Stirring rate	(1500±15)r/min
4	Stirring time	(0~99)min
5	Timing	(0~99)h
6	Testing hole	4 sample
7	Power supply	AC(220±10%)V, 50Hz
8	Maximum power consumption	1500W
9	Ambient temperature	(5∼40)ºC
10	Relative humidity	≤85%

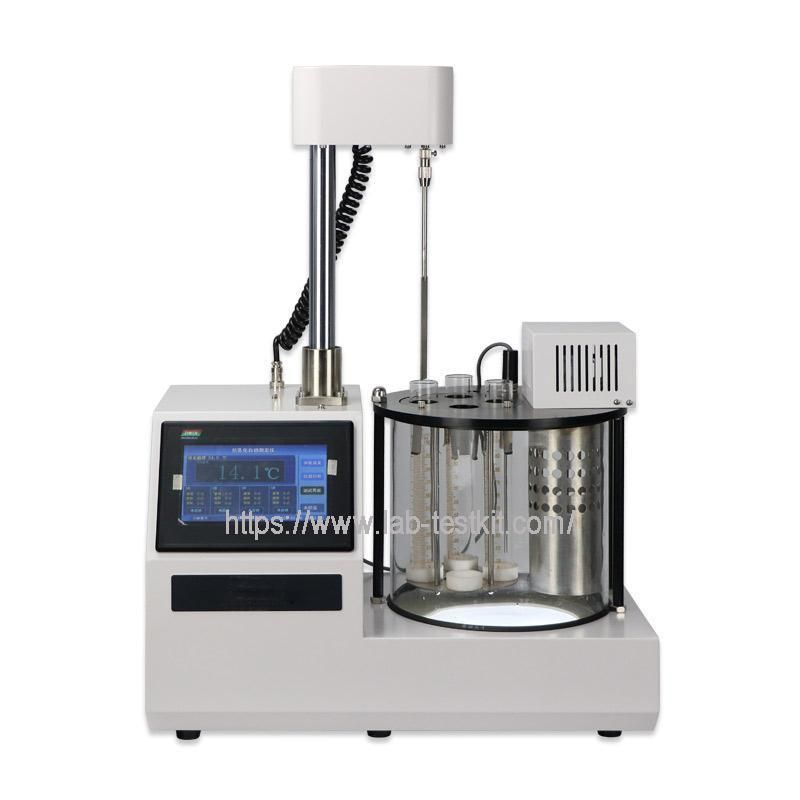

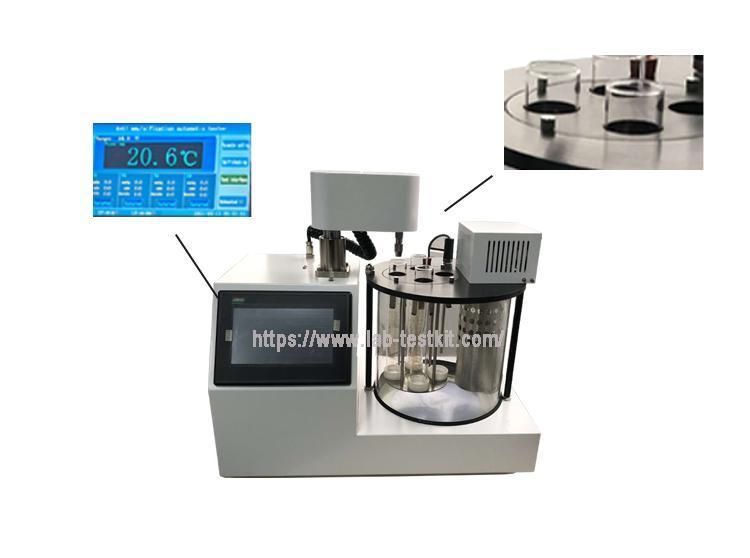

 Images of the Water Separability Tester:
