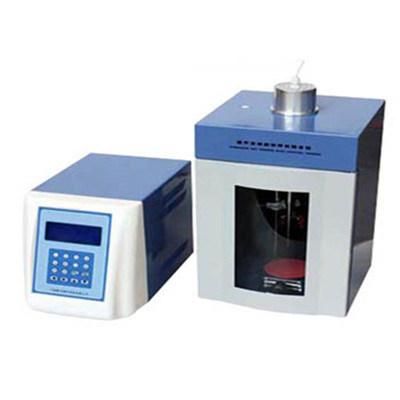

China High Quality Economic Type Ultrasonic Cell Disruptor
Biobase Meihua Trading Co., Ltd.- After-sales Service：Online Technical Support
- Sample Type：Cell
- Processing Method：Disruptor
- Warranty：1 Year
- Environment：Normal Pressure and Temperature
- Display：Digital Display
Base Info
- Model NO.：UCD-1500
- Performance：Automatic
- Power Supply：220V
- Weight：0-50kg
- Certification：CE, ISO
- Customized：Customized
- Name：Ultrasonic Cell Disruptor
- Frequence(kHz)：19.5-20.5
- Size：400*400*560mm
- Max.Working Time：99h59min59s
- Consumption：0-1500W
- Color：White
- Gross Weight：30kg
- Transport Package：Carton
- Specification：400*400*560mm
- Trademark：BIOBASE
- Origin：China
- Production Capacity：500,Month
Description
Application:
Widely used in the field such as biology, chemistry, microbiology, pharmacology, physics, zoology, agronomy, medical science, pharmacy for teaching, scientific research and production.
Technical Parameters
Model
UCD-150
UCD-250
UCD-500
UCD-650
UCD-950
UCD-1200
UCD-1500
UCD-1800
UCD-2000
Frequency (KHz)
20-25
20-25
20-25
20-25
20-25
19.5-20.5
19.5-20.5
19.5-20.5
19.5-20.5
Crushing Capacity(ml)
0.2-150
0.2-250
0.2-400
0.2-500
0.2-700
10-1000
50-1500
50-1800
50-2000
Standard Amplitude-change Pole? (mm)
Anyone among below amplitudes. More amplitudes will be optional
12
OptionalAmplitude-changePole ? (mm)
2,3,6,8
2,3,6,8,
10
2,3,6,8,10,
12
2,3,6,8,10,
12,
2,3,6,8,10,
12,
10,15,20,
25
10,15,20,22
,25
10,15,20
,25
10,15,20,25
,28
Consumption(W)
0-150
0-250
0-500
0-650
0-900
0-1200
0-1500
0-1800
0-2000
PowerSupply
AC220V/110V±10%,50/60Hz;
Package Size (W*D*H)
400*400*560mm(acoustic chamber)
570*350*470mm(main body)
Gross Weight(kg)
30
