• Model NO.：TPV-8
• Trademark：TOP
• Origin：China
• HS Code：9027809900
• Production Capacity：200 Sets,Month

Basic Info.

Model NO. TPV-8 Trademark TOP Origin China HS Code 9027809900 Production Capacity 200 Sets/Month

Product Description

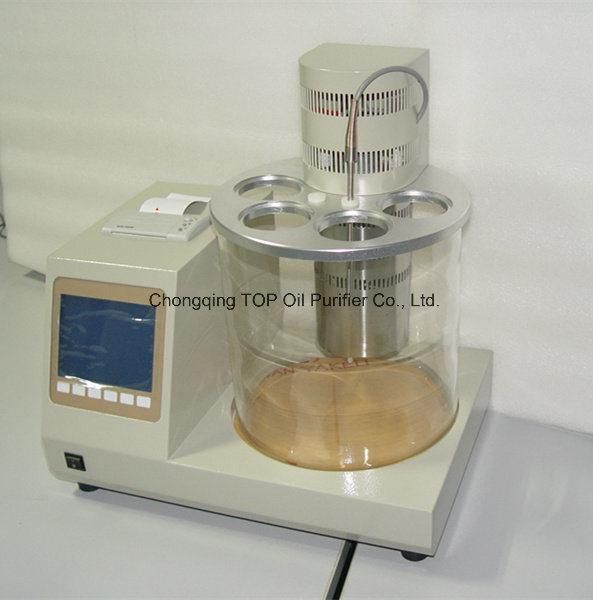

Engine oil astm d445 kinematic viscosity apparatus portable (TPV-8)


Product Application

The Determinator, applicable to GB26588, GB1814, ASTM D445, IP71, and other determining methods, adopts precise digital
temperature controller  to control temperature, with advantage of digital display, high accuracy of temperature control, time-reckoning via digital stopwatch and uniform temperature of homoeothermic waterbath. It not only can be installed with four
viscometers for testing simultaneously, but also can be high-viscosity homoeothermic waterbath for other testing.





Product Features

1. Adopts imported precise digital temperature controller to control temperature of bathtub and highlighted digital stopwatch for
timing, easy to operate.
2. Equipped with ten-liter homoeothermic bathtub with advantages of uniform temperature and effective temperature control.
3. Equipped with stainless steel heater and components, anti-corrosion and durable; and employed with annular typed daylight
lamp for lighting, easy to observe.
4. The Determinator, with four viscometer installing holes, can test four types of oil for testing simultaneously.
5. Capillarimeter clutch is three-point vertical type, with advantage of flexible and convenient operation and reliable grasp.


Technical Parameter

Performance Standards	GB265-88 ,GB1814,ASTM D445,IP71, etc.
Capillary Viscometer	Conform to SH/T0173-92 Technical Conditions of Glass Capillary Viscometer Conform to JJG155 Verification Regulation of Routine Capillary Viscometer
Method of Display	Precise digital temperature controller              Highlighted digital stopwatch calculagraph
Temperature Control Range	Arbitrary setting between room temperature and 150ºC
Testing Range	Kinematic viscosity:0.5~20000mm2/ Kinetic viscosity:0.3~40000mPa.s
Temperature Control  Accuracy	±0.1ºC
Timing Accuracy	±0.1S
Timing Range	0.1S-999.9S
Homoiotherrmal Bathtub	300×300mm double layer
Temperature Testing Components	Precise imported platinum electric resistance
Stirring Speed	1520Rounds/Min
Highest Power	1800W
Sample Installing Quantities	4 pieces
Working Environment	Ambient temperature: 15--35ºC   Ambient Humidity: <85%
Power Supply	220V ac±10%50Hz±1Hz
Dimension(largest)	220*190*500(L*W*H)
Weight	12Kg
