• Model NO.：ColorMeter SE
• Transport Package：Export Standard Packaging
• Specification：CE, ISO 9001, ISO 14001 confirmed
• Trademark：Nanbei
• Origin：Henan
• HS Code：9027300000
• Production Capacity：1000 Sets,Month

Basic Info.

Model NO. ColorMeter SE Transport Package Export Standard Packaging Specification CE, ISO 9001, ISO 14001 confirmed Trademark Nanbei Origin Henan HS Code 9027300000 Production Capacity 1000 Sets/Month

Product Description

Product description

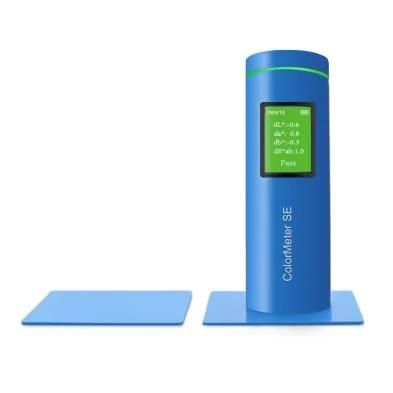

ColorMeter SE Widely Using Portable Type Colorimeter

ColorMeter SE is the basic model of the ColorMeter series, which can meet the basic color test requirement, but it is different from the traditional colorimeter. It adopts the geometry of D/8 which is same as spectrophotometer, small size to make it more convenient to use; the instrument can be wirelessly connected with Android or IOS devices, and the color can be managed from the mobile phone APP; it has the function of finding the closet color to find the color you want. It is widely used for color control in plastics, printing, packaging, textile, clothing and other industries

Part 1. Instrument Function Introduction

1. Adopt international used D/8 (Diffused Illumination, 8 degree viewing) geometry and SCI mode to make measurement more accurate
2. Adopt spectral sensor to provide reflectance data which make its performance is nearly same as spectrophotometer.
3. To get correct LCIE-Lab, ΔE*ab and reflectance curve under light source D65 or D50.
4. Pass or fail judgment can be seen directly from the ColorMeter SE screen to make color QC much easier.

Portable and Massive Color Card Database

1. It can connect with mobile phone APP to create database to upload the color shades from printing, paint, textile color cards.
2. No need to carry big and heavy color card, we can find color card database from ColorMeter SE APP and find the closed/similar color easier and faster.

Innovation Design for Auto Black and White Calibration

1. Auto instrument black and white calibration for easier and correct color test;
2. APP will remind for calibration if instrument works for long time;
3. From APP we can do manual calibration and set calibration interval

Single Instrument for Test and Save Test Value

1. 1.14 inches IPS display screen to show color information

Data can be saved on instrument and instrument data can be synced into APP.

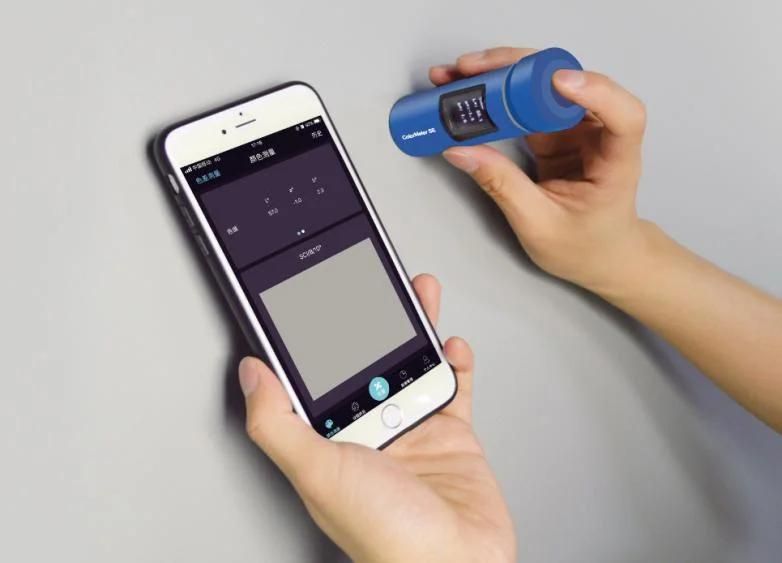

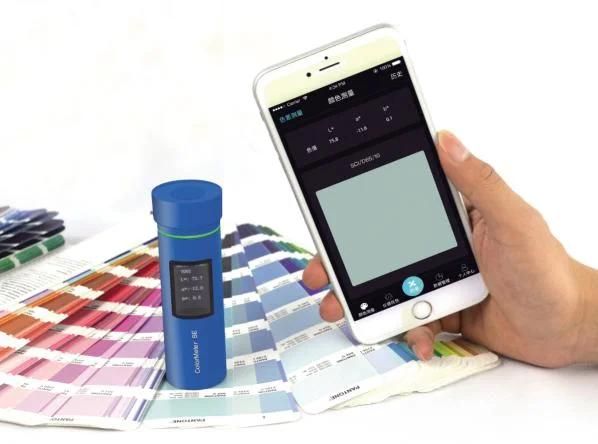

App Operate
Cloud database, more convenient to view and upload

1. Official color card databases are available;
2. Personal users can update color information to cloud and share between different instruments which make color management much easier.

Enterprise users can create and manage their own color card library and formula information in the cloud and share the information to their customers and suppliers through the unique invitation code.

Part 2. Technical Data

Model	ColorMeter SE
Geometry	D/8 ,Specular Component Included(SCI)
Color Spaces and Indices	CIE-Lab,ΔE*ab, reflectance curve
Light Source	LED(Full Wavelength Balanced LED Light Source)
Measure Aperture	8mm
Repeatability	ΔE≤0.1(when a white tile is measured 30 times at 5-second intervals after calibration)
Measurement Time	1.5s
Interface	USB (only for charging)
Illuminants	D65
Observer	10°
Screen	IPS Full Color Screen(135*240,1.14inch)
Battery	4.2V/500mAh,Rechargeable, 5,000 continuous tests
Language	English and Chinese
Calibration	Auto
Software Support	Android , IOS
Weight	About 90g
Instrument Size	Diameter 31mm,Height 102mm

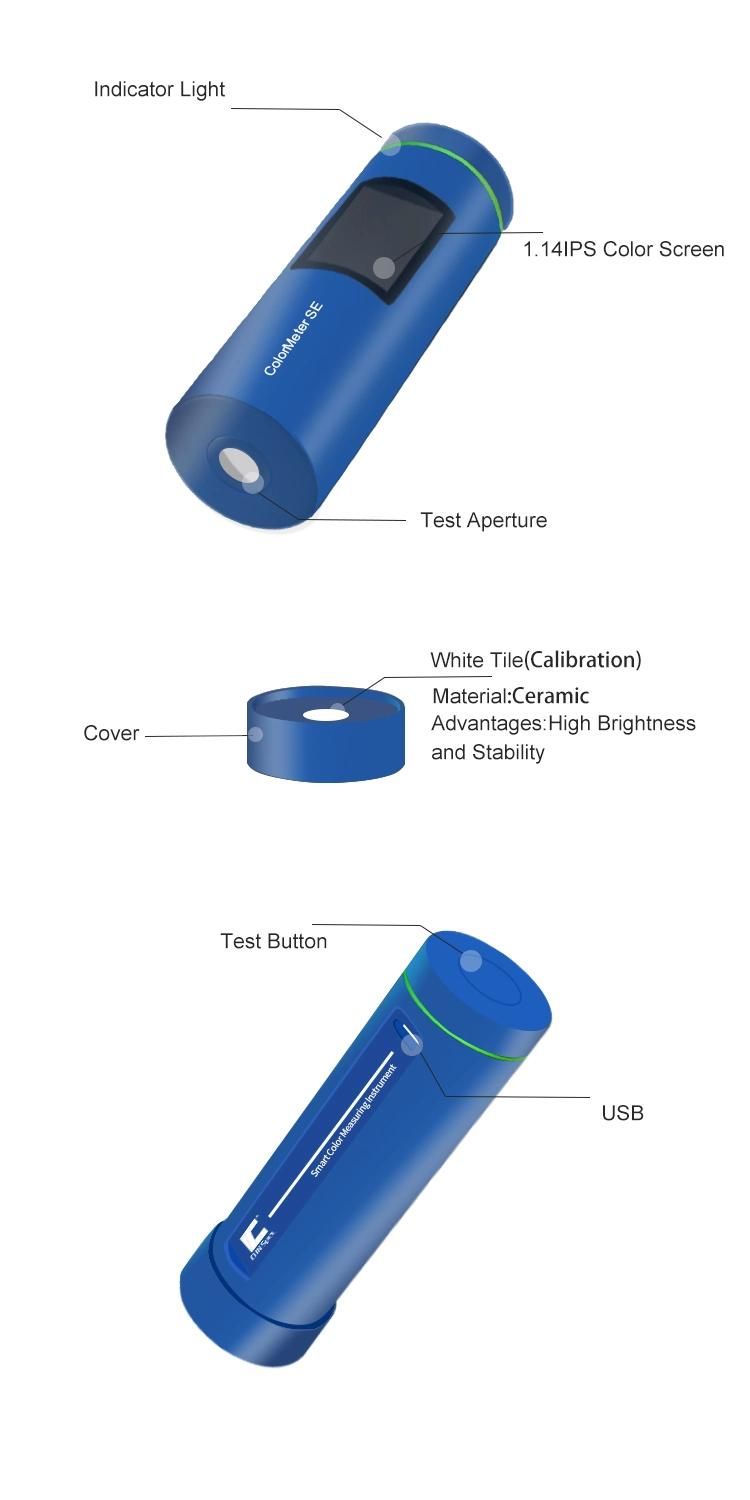

Part 3. Detail Pictures

FAQ

1. How can I choose the suitable one?
Dear customer, please tell us your detailed requirements by mail or online, we will recommend the suitable one as your request.
2. Does your price is competitive?
Dear customer, we make sure to offer you the best quality with competitive price.
3. How can I pay?
Dear customer, we accept many payment term, such as T/T, Western Union…
4. When I receive it after pay?
Dear customer, normal models can be delivered with 5-7days, please contact us to check transport time to your address.
5. How to deliver?
Dear customer, we can send by Express, by Sea and by Air.
6. Is will be broken during transport?
Dear customer, please do not worry, we do standard export package.
7. What should I do if I do not know how to use?
Dear customer, please do not worry, manual user will be sent together, you can also contact us with more technological support.
8. What should I do if some parts broken?
Dear customer, please do not worry, we have 12months warranty except  wear parts. You can also buy parts from us after 12months.


Pre-sale service

· 24hours online to ensure quick response to customers' inquiry or online message;

· Guide customers to choose the best suitable machine model;

· Offer detailed specification and competitive prices;

Contract execution

· Machine production will be arranged strictly according to the contract;

· Machine photos will be sent to you for inspection during production;

· Send customs clearance documents by DHL;

· Update latest news after delivery and prepare customs clearance;

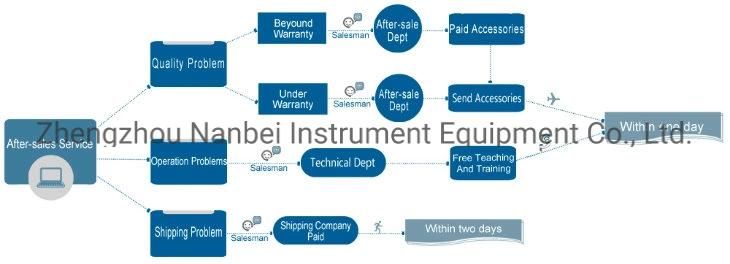

After-sale service

· 12 months warranty except for wear parts;

· Broken spare parts (except for wear parts) will be sent for free due to quality problems;

· In time response to customers technical problems;

· New products update for customers' reference

Our Company:
Since 2008, We have become a professional laboratory instrument manufacturer.
Since the establishment of the International Department in 2010, the products are exported to Europe, America and Asia and Africa!
Whether it is technology, factory area, multi-language sales. We are all professional!

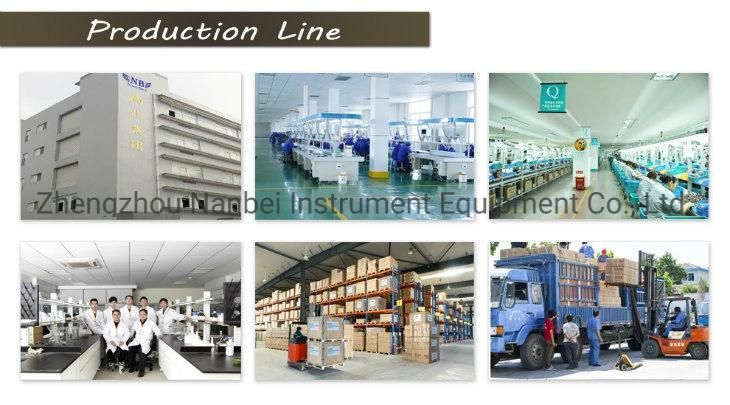

Factory Show:


Certification:
Our products have international certifications such as SGS, CE, ISO!

Warranty And After-sale Service
♥♥We Supply 1 Year Warranty , And Lifelong Free Technical Guiding And Training♥♥
