Laboratory Gel Imaging Analysis System
Kunshan Agritop Technology Co., Ltd.- After-sales Service：Lifetime Maintenance
- Warranty：1 Year
- Effective Pixel：1280*1024
- Pixel Density：10 Bit
- Filter：590(Nm)
- Signal to Noise Ratio：56 dB
Base Info
- Model NO.：JY04S-3C
- Dimensions：254nm (11W) 365nm(11W)
- Transport Package：Standard Sea Freight Package
- Specification：29kg
- Trademark：OEM
- Origin：Zhejiang
- HS Code：9031809090
- Production Capacity：500PCS ,Month
Description

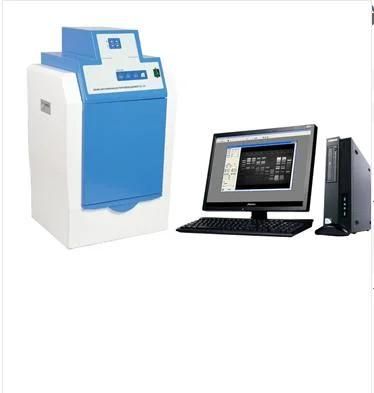

Name: Laboratory Gel Imaging Analysis System
Model : JY04S-3C
Introduction
The gel imaging analysis system has been widely applied in molecular laboratories. With the help of high resolution CCD and zoom lens, the weak electrophoresis band which is difficult to identify by the naked eye can be obtained. The special filter group can effectively filter out the background noise and noise, and at the same time control the pollution of EB and the leakage of ultraviolet lamps. Mark or edit, arrange the experiment report, print and transmit on the Internet, get rid of the tedious operation process of the laboratory staff, and make the operation of the laboratory easily.
Model : JY04S-3C
Introduction
The gel imaging analysis system has been widely applied in molecular laboratories. With the help of high resolution CCD and zoom lens, the weak electrophoresis band which is difficult to identify by the naked eye can be obtained. The special filter group can effectively filter out the background noise and noise, and at the same time control the pollution of EB and the leakage of ultraviolet lamps. Mark or edit, arrange the experiment report, print and transmit on the Internet, get rid of the tedious operation process of the laboratory staff, and make the operation of the laboratory easily.
Technical parameters
| Effective pixel | 1280*1024 |
| Pixel density | 10 bit |
| Pixel size | 5.4*5.4 μm |
| resolving power | 1.4 megapixel |
| Signal to noise ratio | ≥ 56 db |
| sensitivity | it can detect double stranded DNA with less than 20pg EB staining |
| camera | imported low illumination high resolution digital CCD |
| Zoom lens | F=1:1.2 |
| filter | 590(nm) |
| UV projection area | 210*210mm |
| Visible light projection area | 210*250mm |
| Wavelength of reflected ultraviolet light source | 302nm |
| Projected UV lamp power | 254 365nm |
| Reflected ultraviolet lamp power | 302nm (8w) |
| Dimensions | 254nm (11w) 365nm(11w) |
| Net weight | 29kg |
