Integrated Structure Sulfur Content Analyser for Coal-Water Slurry Dry Coal Sample

Changsha Suny Electronic Technology Limited
  • Element：Sulfur Analyzer
  • Analysis：Infrared Analysis
  • Display：Digital
  • Application：Coal Industrial
  • Frequency：50±1HZ
  • Performance：Automation

Base Info

  • Model NO.：YX-DL,IR
  • Weight：0-100Kg
  • Power Source：AC220V±22V
  • Customized：Non-Customized
  • Product Description：Integrated Sulfur Analyzer
  • Warranty：1year
  • Sample Feeding：Manual
  • Testing Time：180s for One Sample
  • Temperature：1300ºC
  • Power Supply：220V, 50,60Hz
  • Transport Package：Standard Export Package
  • Trademark：Labkits
  • Origin：Hunan China
  • Production Capacity：500PCS,Month

Description

Basic Info.

Model NO. YX-DL/IR Weight 0-100Kg Power Source AC220V±22V Customized Non-Customized Product Description Integrated Sulfur Analyzer Warranty 1year Sample Feeding Manual Testing Time 180s for One Sample Temperature 1300ºC Power Supply 220V, 50/60Hz Transport Package Standard Export Package Trademark Labkits Origin Hunan China Production Capacity 500PCS/Month

Product Description

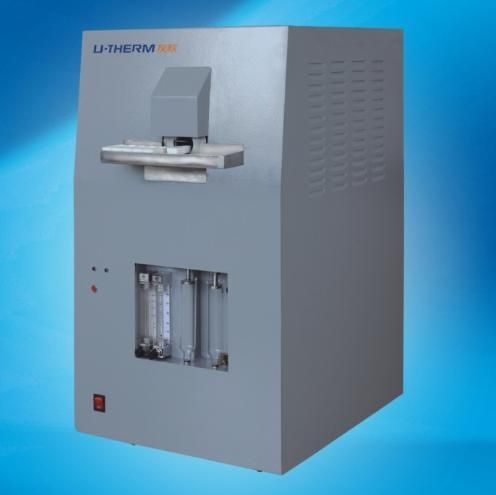

Item: Integrated structure sulfur content analyser for coal-water slurry dry coal sample
Model: YX-DL/IR
Integrated Structure Sulfur Content Analyser for Coal-Water Slurry Dry Coal Sample

Application Area

It is applicable in the industry such as electrical power, coal, commerce inspection, environment protection, metallurgy, papermaking, petrochemical, earth probe, and the research institution or quality inspecting organization to measure the sulfur content in the materials of coal, cinder, coke, catalyst, minerals, rock, and petrochemicals.


Features:

1.  Software self-diagnose function
2. Advanced IR module with low drift, thus to ensure high precision and reliability
3. Advance heating element and combustion tube to ensure long life-span
4. Optimized gas circuit design to make sure no air leakage
5. With special sealing structure to prevent sulfur in air come into the furnace and affect the testing results
6. With waste gas handling system, thus to avoid the air pollution inside the laboratory
7. The testing results can be edited in software, while the statistic function of software can give average value, standard difference, relative difference and etc.
8. Balance can be linked for auto weight measuring, and internet connection available for data sharing.


Technical parameters:

· Sample feeding: manual

· Testing range: 0.01%~10% (expandable according to requirements)

· Testing method: Infrared Spectrum Absorption Method

· Sample Weight: Coal and Coke with 300mg, oil with 100mg

· Testing Time: 180s for one sample

· Temperature: 1300ºC

· Power Supply: 220V, 50/60HZ

· Power: ≤ 1.5 KW

· Dimension: 540mm*450mm*760mm

· Weight: 65KG
