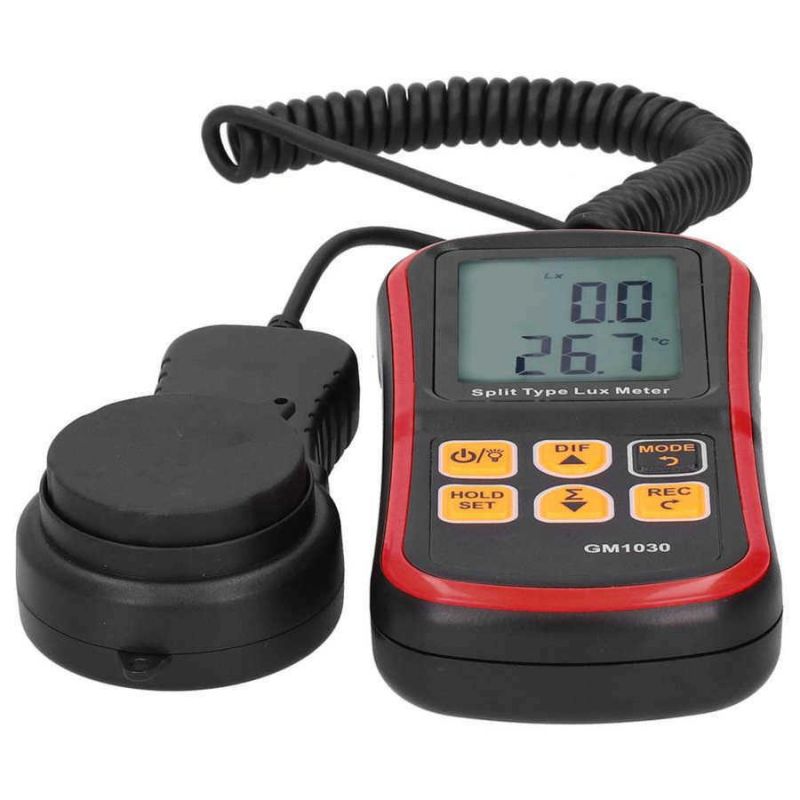

Digital Lux Meter Bt Photometer Luxmeter Split Type LCD Handheld Illuminometer Luminometer Light Meter Lux
Dongguan Mengtai Instrument Co., Ltd.- Type：Visual Light Meters
- Warranty：1 Year
- Measuring Range：0-200.000lx
- Accuracy：3%+1
- Power Supply：1.5V 3 X AAA Battery
- Transport Package：Carton Package
Base Info

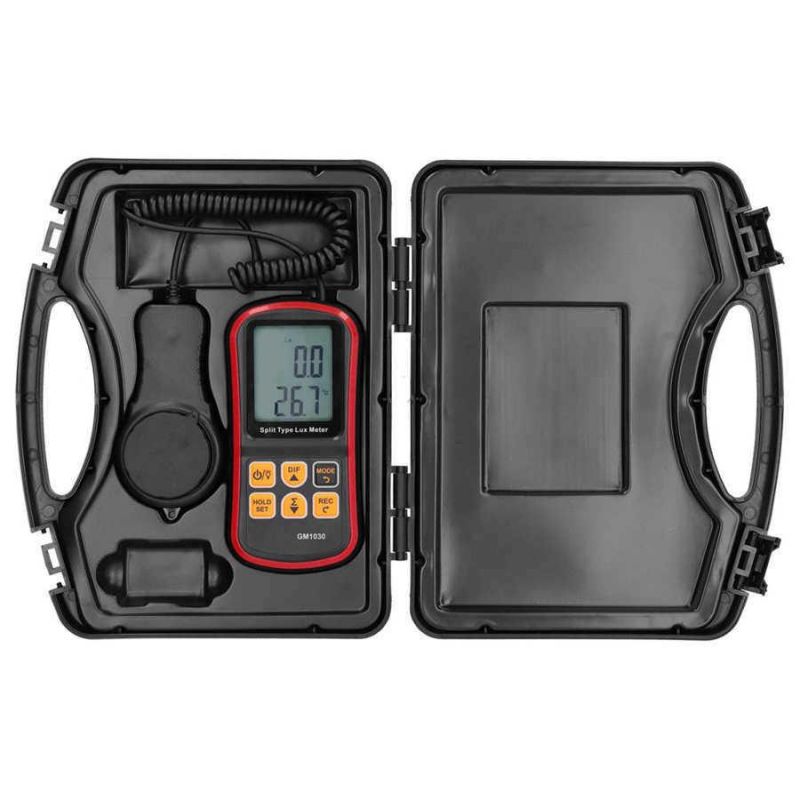

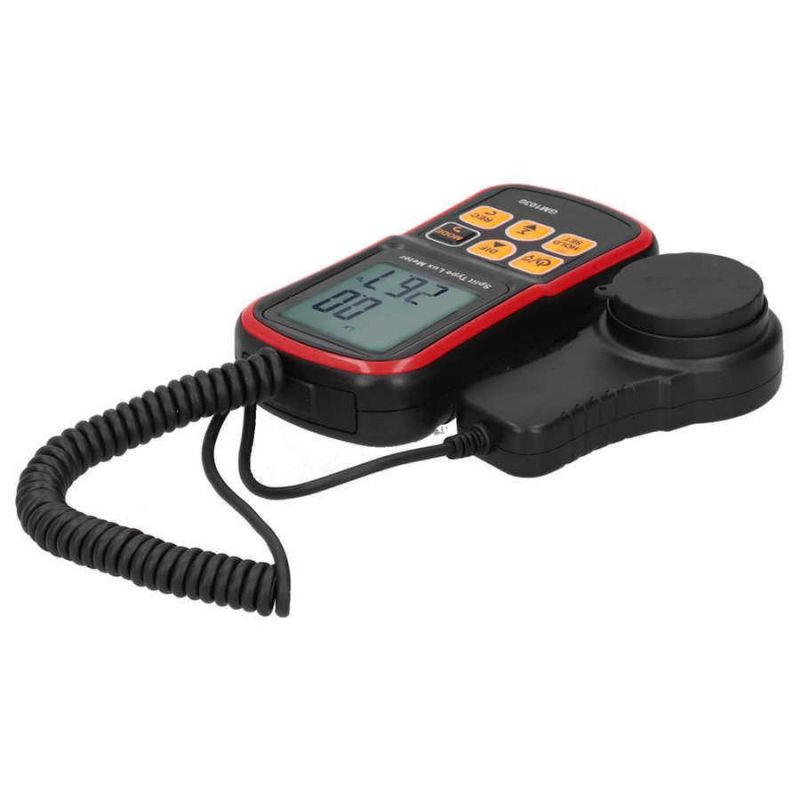

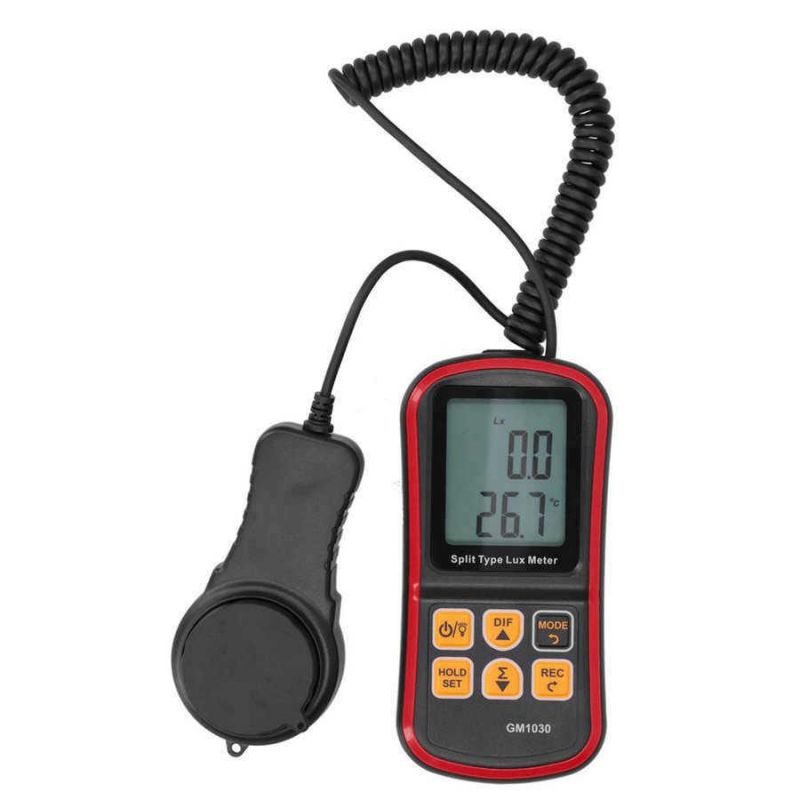

- Model NO.：GM1030
- Specification：16*8*4cm
- Origin：China
- HS Code：9031499090
- Production Capacity：50000piece,Month
Description
Measurement Function: Illuminance and Temperature, Illuminance Difference, Illuminance Maximum and Illuminance Minimum
Illuminance Probe: Silicon Photodiode
Temperature Probe: NTC Thermistor
Illuminance Range: Total Range: 0~200,000Lx
Divided into 4 Levels:
×1: 0~199.9Lx Minimum Resolution: 0.1Lx
×10: 20.0x10~199.9x10Lx Minimum Resolution: 1Lx
×100: 20.0x100~199.9x100Lx Minimum Resolution: 10Lx
×1000: 20.0x1000~199.9x1000Lx Minimum Resolution: 100Lx
Illumination Accuracy:
×1: ±3%rdg+5dgts
×10: ±3%rdg+10dgts
×100: ±4%rdg+10dgts
×1000: ±4%rdg+10dgts
Temperature Range: -20 ~ 50ºC (-4~122ºF)
Temperature Accuracy: ±1.0ºC
Repeatability: ±2%
Refreshing Rate: 2 Times/Sec
Illumination and Temperature Unit: Lx (lx)/ºC (degrees Celsius) Lx (lx)/ºF (degrees Fahrenheit) FC (foot candles)/ºC (degrees Celsius) FC (foot candles)/ºF (Fahrenheit)
Illumination Data Storage: maximum storage of 2000 (automatic storage) maximum storage of 60 (manual storage)
Power Supply: 3 x 1.5V AAA Dry Battery (Battery Not Included)
How to Use:

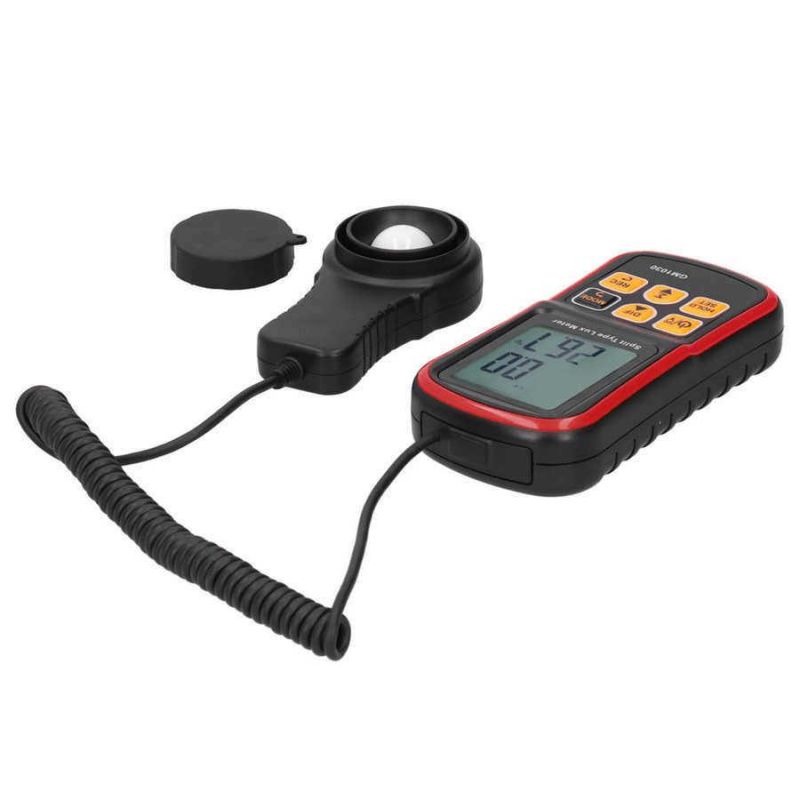

1: Open the illuminance meter receiving cover
2: Install the battery 3 x 1.5V AAA (this product does not include)
3: Press the power button and move the receiver as close as possible to the measured light source (the gear is automatically adjusted according to the strength of the light source)
4: According to the buttons on the panel DIF (difference), REC (record), etc., select according to measurement requirements
