En ISO 1716 Oxygen Bomb Calorimeter for Gross Heat of Combustion
Chongqing Advanced Technology Co., Ltd.- After-sales Service:Response in 12 Hours
- Warranty:12 Months
- Test Standard:En ISO 1716
- Bomb Capacity:(300 ± 50) Ml
- Crucible:Φ 25mm, Height 14-19 mm,Thickness 1 mm
- Timing Accuracy:0.5s
Base Info
- Model NO.:OBC-T
- Maximum Power:0.5kw
- Heat Capacity:About 10000j , K
- Temperature Range:(4.5-50) ºC
- Inner Cylinder Volume:2000ml
- Stirring Power:3W
- Strring Speed:375r,Min
- Display:LCD
- Ignition Time:5s
- Operation:Automatic
- Test Object:Building Material
- Function:Determine The Gross Heat of Combustion
- Transport Package:Plywood Case
- Specification:Stainless steel
- Trademark:AI
- Origin:China
- HS Code:9027809990
- Production Capacity:10 Sets,Month
Description
Basic Info.
Model NO. OBC-T Maximum Power 0.5kw Heat Capacity About 10000j / K Temperature Range (4.5-50) ºC Inner Cylinder Volume 2000ml Stirring Power 3W Strring Speed 375r/Min Display LCD Ignition Time 5s Operation Automatic Test Object Building Material Function Determine The Gross Heat of Combustion Transport Package Plywood Case Specification Stainless steel Trademark AI Origin China HS Code 9027809990 Production Capacity 10 Sets/MonthProduct Description
Standards:EN ISO 1716: Reaction to fire tests for products- Determination of the gross heat of combustion(calorific value);
GB/T 14402: Combustion performance test for building materials and products-Determination of the heat of combustion.
I.Main feature
1, The oxygen bomb calorimeter includes: calorimeter apparatus, high-pressure oxygen bomb, cold water installations, computer and control system (which can record and display the curve), LCD screen and software;
2, Crucible is made of stainless steel;
3, Box paint treatment; all internal parts are made of stainless steel, corrosion-resistant, easy to clean;
4, Ignition wire break can be detected, and automatic ignition.
5, The test procedure can automatically turn off.
6, Test abnormalities has sound alarm.
7, Control box with USB / RS232 serial port with an external brand desktop or laptop operating control;
8. High degree of automation, test procedure safe and reliable, easy to operate.
II.Technical Specifications of OBC-T Oxygen Bomb Calorimeter
1 | Bomb capacity | (300 ± 50) mL |
2 | Oxygen bomb pressure range | 0.5 ~ 3.5MPa, no leakage. |
3 | Crucible | Φ 25mm, height 14-19 mm,thickness 1 mm. Stainless steel material |
4 | Timer | accuracy of 0.5s |
5 | Maximum power | 0.5KW |
6 | Ambient temperature | (10 ~ 35) ºC, humidity ≤80%; |
7 | Heat capacity of the instrument | about 10000J / K |
8 | Heat repeatability error | ≤0.2% |
9 | Temperature range | (4.5-50) ºC |
10 | Temperature detection | 0.0001 ºC resolution, using the PT100 sensor |
11 | Inner cylinder volume | 2000ml; Oxygen bomb Sealing: oxygenation pressure 2.5 ~ 3.5MPa, no leakage |
12 | Stirring power | 3W; Strring speed: 375r/min |
13 | Ignition time | 5s |
14 | Ignition voltage | DC 12V |

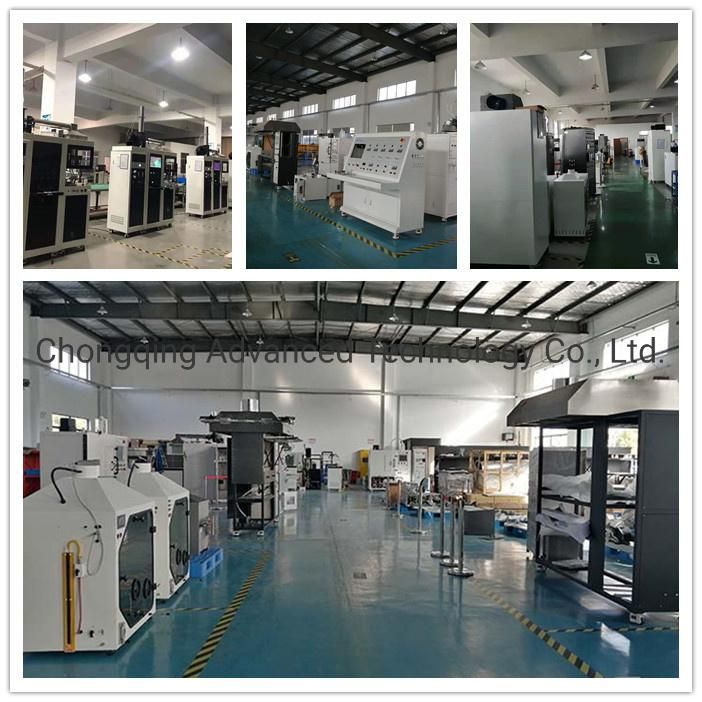

Factory overview
Customer Feedback
Germany
USA
Transporation
FAQ
1.What's the delivery time?
About 2 or 3 months .
2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD150/Day for every person.
