• Model NO.：AIC-701
• Color：White
• Testing Purposes：Specifies The Flame Propagation Test Method for Fa
• Shelf Fixture：Push-Pull
• Flame Height：Freely Adjustable
• Time Record：Automatic Recording, Digital Display
• Burner：Imported Merck Lamp
• Timing：Automatic Burner Timing
• Ignition Timing：0~99.99 Seconds Arbitrarily Set
• Transport Package：Plywood Case
• Specification：Stainless steel
• Trademark：AI
• Origin：China
• HS Code：9031809090
• Production Capacity：5 Sets,Month

Basic Info.

Model NO. AIC-701 Color White Testing Purposes Specifies The Flame Propagation Test Method for Fa Shelf Fixture Push-Pull Flame Height Freely Adjustable Time Record Automatic Recording, Digital Display Burner Imported Merck Lamp Timing Automatic Burner Timing Ignition Timing 0~99.99 Seconds Arbitrarily Set Transport Package Plywood Case Specification Stainless steel Trademark AI Origin China HS Code 9031809090 Production Capacity 5 Sets/Month

Product Description



Introduction
This Flame Propagation Apparatus is mainly designed based on NFPA 701,which regulations fabrics and films flame propagation test method for fabrics.And it applies to curtains and drapes, curtains, or other shelter materials windows, awning, tent, waterproof cloth and fabric structure similar construction and banners.



Standards
National Fire Protection Association (NFPA) NFPA 701: 2004 & 2009 Edition Test Method 1



Main Features
1, Box is designed with transparent viewing window;
2, Combustion chamber dimensions: length 940mm x width 505mm x height 705mm;
3, Electronic automatic ignition, import Merke lamp (Meker Burner) Burner;
4, Burner automatic timing; automatic timing reminder;
5, Ignition timing 0~99.99 seconds set arbitrarily, continued burning time and flame time are automatically recorded, digital display;
6, The flame height can be adjusted freely,flametemperature measuring device can be configured;
7, "Push-pull" rack fixture;
8, The burner is fixed to the sliding track, easy to operate, the needle can adjust the flame height;
9, Meter range: 0~1800cc/min;
10, Power supply: 220V, 50Hz, 30W.

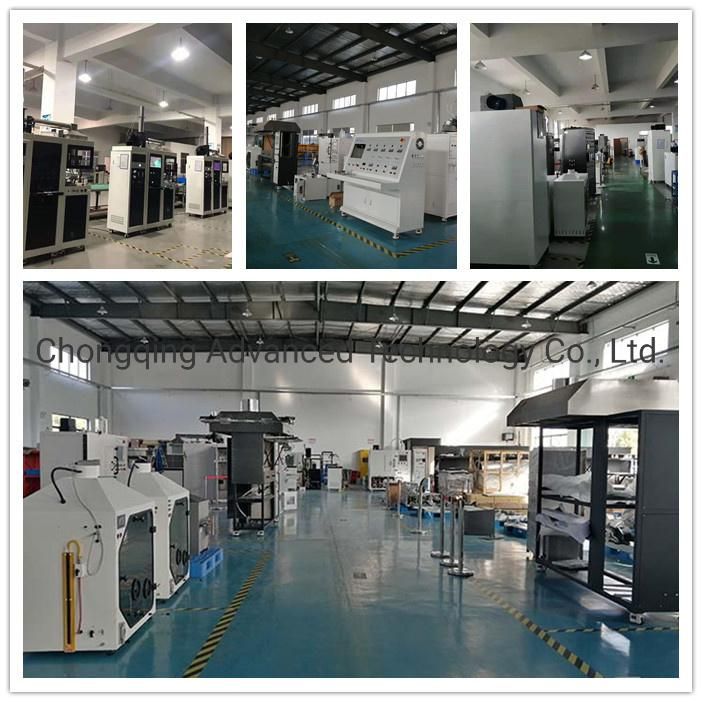

Factory overview

Customer Feedback

Germany

USA

Transporation

FAQ

1.What's the delivery time?
About 6 months.

2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.

3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.

4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD150/Day for every person.
