Ymj-Dseries Portable Leaf Area Meter

Zhejiang Top Cloud-Agri Technology Co., Ltd.
  • Warranty：One Full Year
  • Advantadge：Be Connected to Computer, Have English Software
  • Voltage：3.7V
  • Max Data Capacity：5000 Groups
  • Interface：USB
  • Transport Package：in Carton

Base Info

  • Model NO.：YMJ-D
  • Specification：ISO
  • Trademark：TOP
  • Origin：Zhejiang, China (Mainland)
  • HS Code：9031809090
  • Production Capacity：5 Set,Sets Per Day

Description

Basic Info.

Model NO. YMJ-D Specification ISO Trademark TOP Origin Zhejiang, China (Mainland) HS Code 9031809090 Production Capacity 5 Set/Sets Per Day

Product Description

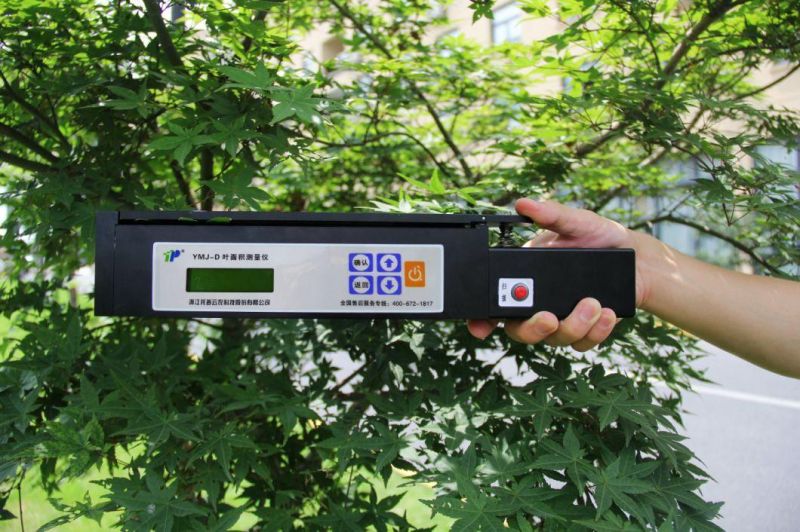

Name: Portable Leaf Area Meter

Model: YMJ-D

Ymj-Dseries Portable Leaf Area Meter


Characteristic
  1. The integrated design of host and probe is more convenient to operate.
  2. Adopt microcomputer technology and LCD liquid crystal display.
  3. High performance built-in rechargeable lithium battery, no external power supply, low voltage display, more suitable for field measurement.
  4. Many parameters of leaf can be measured: leaf area, leaf circumference, leaf length, leaf width, ratio of length to width,shape factor.
  5. The time and date function of the instrument can be saved with the measured data, which is helpful for inquiry.
  6. Can look up historical data on your mobile phone.

Technical parameters

Technical parameters:leaf area,leaf circumference, leaf length, leaf width, ratio of length to width
Test unit: millimeter, square millimeter
 Precision: ≤±2%
Area resolution: 0.1mm2    Length resolution: 1mm   Width resolution: 0.1mm
Measuring Length: ≤2000mm
Measuring Width: ≤213mm
Thickness: ≤3mm
Max Data capacity: 5000 Groups
Voltage:3.7V
