• Model NO.：SH220N
• Weight：0-50kg
• Certification：CE
• Customized：Non-Customized
• Product Name：Kjeldahl Digester
• Temperature Range：Rt + 5ºC to 450ºC
• Heating Insulation Method：Unique Air Duct Insulation Technology
• Digestion Tube：300ml, 42mm
• Capacity Per Bath：20PCS
• Power：220avc±10%
• Transport Package：Standard Export Package
• Trademark：Labkits
• Origin：Hunan China
• Production Capacity：5000PCS,Month

Basic Info.

Model NO. SH220N Weight 0-50kg Certification CE Customized Non-Customized Product Name Kjeldahl Digester Temperature Range Rt + 5ºC to 450ºC Heating Insulation Method Unique Air Duct Insulation Technology Digestion Tube 300ml, 42mm Capacity Per Bath 20PCS Power 220avc±10% Transport Package Standard Export Package Trademark Labkits Origin Hunan China Production Capacity 5000PCS/Month

Product Description

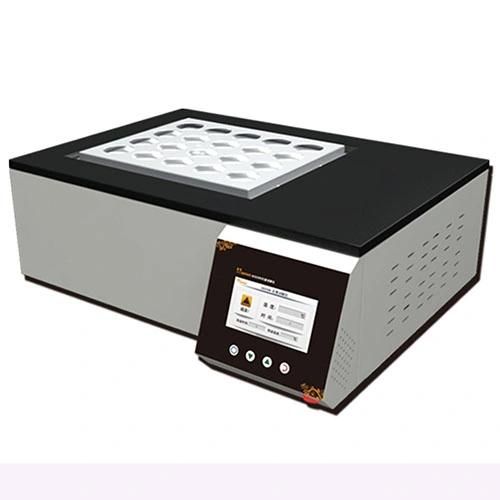

Item : Graphite Digester/Kjeldahl Digester/Kjeldahl Digestion Furnace for Lab
Model: SH220N

Features

1. Graphite block, Compare metal heating, the heating is more uniform;
2. Corrosion resistant design, PTEF coating is very useful when strong acid experiments;

3.  PID temperature control, to achieve 450ºC only need 25 minutes.
4.  4.3 inch color screen, display real running situation;
6.  Multi protection, such as Over-current protection, High temperature warning
Overload protection
7.  Gas collection hood system with suction pump (Suction Cap)
8.  Special air insulation design, when heating solution, liquid need backflow, we design special air flue to keep the whole tube near uniform temp

Tech Specifications

Temperature range	RT + 5ºC to 450ºC
Stability of the heating block temperature	± 0.1ºC
Precision of the heating block temperature	± 0.1ºC
Heating method	Infrared heating and high purity graphite conduction
Heating insulation method	Unique air duct insulation technology
Digestion tube	300mL, Φ42mm
Capacity per bath	20pcs
Power	220AVC±10%, 50Hz,  consumption: 3.6Kw
Dimension	515mm×421mm×211mm
Weight net	25Kg
