• Model NO.：NDK200-2
• Weight：0-100Kg
• Power Source：AC220V±22V
• Customized：Customized
• Item：Nitrogen Analyser
• Blocks Quantity：2 Pieces
• Time Range：99h59min
• Nitrogen Flow：0—10L,Min
• Power：400W
• Dimensions：260*220*500
• Transport Package：1 Set,Sets
• Specification：ISO certificate
• Trademark：NANBEI
• Origin：Henan, China (Mainland)
• HS Code：8419899090
• Production Capacity：500 Set,Sets Per Month

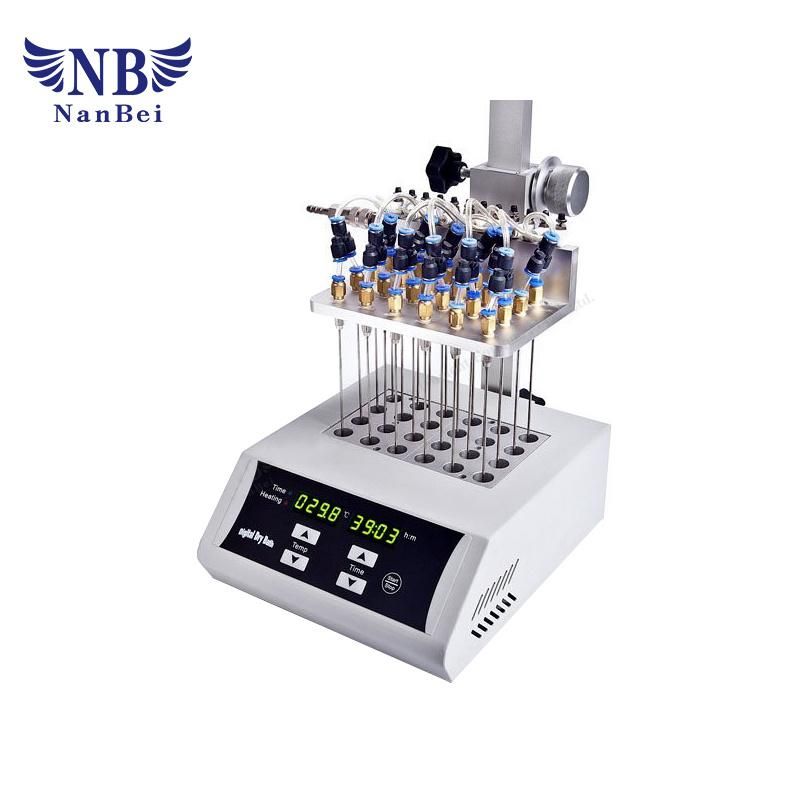

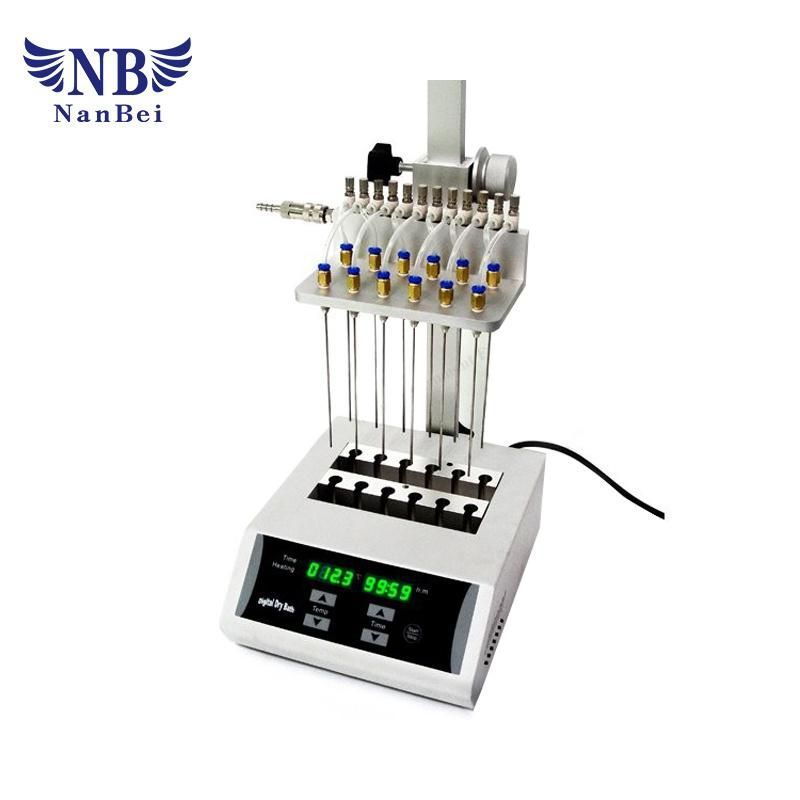

Model

NDK200-1

nitrogen concentrator

NDK200-2

 nitrogen concentrator

Temperature range

RT+5ºC to 150ºC

Heating time

≤30min (from 40ºC to 150ºC)

Temperature accuracy(40~100ºC)

±0.5ºC

Temperature accuracy(100~150ºC)

±1ºC

Temperature uniformity(100ºC)

±0.5ºC

Blocks Quantity

1 pieces

2 pieces

Time range

99h59min

Nitrogen flow

0-10L/min

Nitrogen pressure

≤0.1MPa

power

200W

400W

Dimensions

230x200x500 mm

260x220x500 mm

Blocks Selection

Refer to the "

Exchangeable blocks for

NDK Series"

Conventional configuration

Optional blocks from DT01A to DT18. Block can be interchanged easily.Optional flow regulating valve.

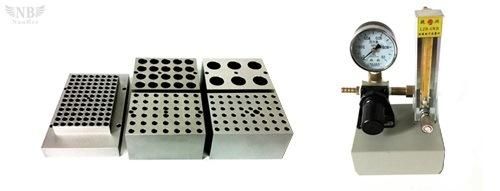

Blocks replacement for NDK Series

Type

Description

Block Dimension (mm)

DT01A

Φ6 mm x 12

95.5 x 76.5 x 50

DT02A

Φ7 mm x 12

DT03A

Φ10 mm x 12

95.5 x 76.5 x 50

DT04A

Φ12 mm x 12

95.5 x 76.5 x 50

DT05A

Φ13 mm x 12

95.5 x 76.5 x 50

DT06

Φ15 mm x 12

95.5 x 76.5 x 50

DT07

Φ16 mm x 12

95.5 x 76.5 x 50

DT08

Φ19 mm x 12

95.5 x 76.5 x 50

DT09A

Φ20 mm x 6

95.5 x 76.5 x 50

DT10A

Φ26 mm x 6

95.5 x 76.5 x 50

DT11A

Φ28 mm x 4

95.5 x 76.5 x 50

DT12A

Φ40 mm x 4

95.5 x 76.5 x 50

DT13A

0.5ml centrifugal tube x 12

95.5 x 76.5 x 50

DT14A

1.5ml centrifugal tube x 12

95.5 x 76.5 x 50

DT15A

2.0ml centrifugal tube x 12

95.5 x 76.5 x 50

DT16A

0.2ml tube x 12

95.5 x 76.5 x 50

DT17

Flat (96-hole

Enzyme Plate)

78 x 114 x 26

DT18

customized

customized

FAQ

1. How can I choose the suitable one?
Dear customer, please tell us your detailed requirements by mail or online, we will recommend the suitable one as your request.
2. Does your price is competitive?
Dear customer, we make sure to offer you the best quality with competitive price.
3. How can I pay?
Dear customer, we accept many payment term, such as T/T, Western Union…
4. When I receive it after pay?
Dear customer, normal models can be delivered with 5-7days, please contact us to check transport time to your address.
5. How to deliver?
Dear customer, we can send by Express, by Sea and by Air.
6. Is will be broken during transport?
Dear customer, please do not worry, we do standard export package.
7. What should I do if I do not know how to use?
Dear customer, please do not worry, manual user will be sent together, you can also contact us with more technological support.
8. What should I do if some parts broken?
Dear customer, please do not worry, we have 12months warranty except  wear parts. You can also buy parts from us after 12months.


Pre-sale service

· 24hours online to ensure quick response to customers' inquiry or online message;

· Guide customers to choose the best suitable machine model;

· Offer detailed specification and competitive prices;

Contract execution

· Machine production will be arranged strictly according to the contract;

· Machine photos will be sent to you for inspection during production;

· Send customs clearance documents by DHL;

· Update latest news after delivery and prepare customs clearance;

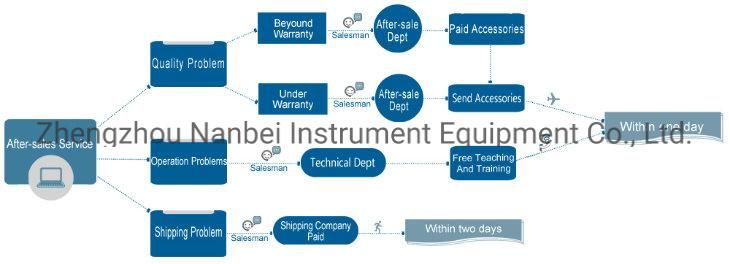

After-sale service

· 12 months warranty except for wear parts;

· Broken spare parts (except for wear parts) will be sent for free due to quality problems;

· In time response to customers technical problems;

· New products update for customers' reference

Our Company:
Since 2008, We have become a professional laboratory instrument manufacturer.
Since the establishment of the International Department in 2010, the products are exported to Europe, America and Asia and Africa!
Whether it is technology, factory area, multi-language sales. We are all professional!

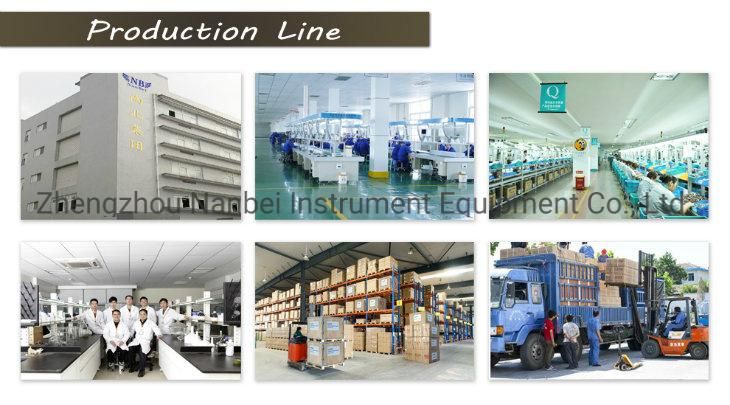

Factory Show:
