• Model NO.：JY-108SY
• Trademark：ODM
• Origin：China
• HS Code：90318090
• Production Capacity：300 Set,Sets , Week

Basic Info.

Model NO. JY-108SY Trademark ODM Origin China HS Code 90318090 Production Capacity 300 Set/Sets / Week

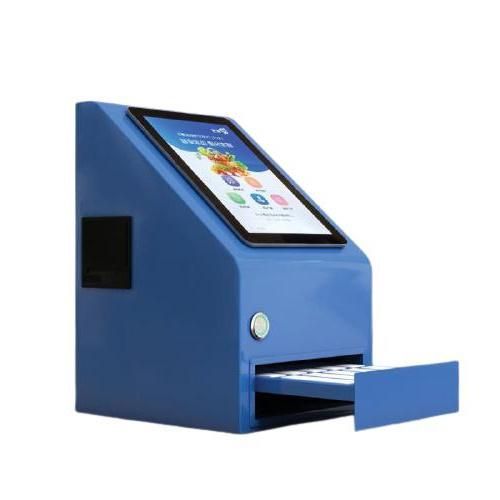

Product Description

Product manual

1. Testing scope requirements: livestock and poultry, eggs, aquatic products, honey, feed
2. Test item requirements: antibiotics, hormones and other drug residues
3. Testing method requirements: immune colloidal gold method
4. Detection signal processing method requirements: high-definition CCD image scanning technology
5. Test item curve increase and decrease requirements: able to add and delete standard curves of different test items and curve import function
6. Detection function: automatically distinguish valid cards, invalid cards, and concentration
7. Judgment function: qualitative and quantitative data judgment
8. Instrument display requirements: 10-inch or above color capacitive touch screen
9. Operating system requirements: Android operating system
10. Hardware requirements: 4-core clocked at 1.6GHz, 2G memory, with large-capacity data storage function, built-in SD card expansion function, storage of up to one million data.
11. Input and output function: intelligent Chinese and English input, handwriting input function, sample name and intelligent simple spelling input function of the inspected unit. Built-in speaker with video learning function.
12. Detection channels: 10
13. Test result: automatically judge the test result and display the concentration.
14. Detection speed: fast detection, the detection process is completed within 20-40 minutes, and the detection result and content are automatically judged.
15. Printing function: Built-in thermal printer, multiple printing modes, with self-adhesive wide-format printing certificate, thermal paper printing test report, the content meets the requirements of the "National Trial Implementation Plan for the Certification System for Edible Agricultural Products".
16. Data processing function: The instrument has data reading, processing, exporting, and transmitting functions, and the test record can be imported into a U disk.
17. Remote management function: The instrument can be remotely managed, remote upgrade, remote control, remote fault diagnosis, and remote training.
18. Communication function: Built-in wireless WiFi and RJ45 network port for direct access to the Internet. Can expand 4G, 5G Internet communication functions, and GPS/AGPS positioning.
19. Data networking function: real-time upload of inspection information and data of agricultural products to the supervision platform.
20. Security traceability function: QR code can be generated for agricultural product information, and the source of agricultural products and detection information can be traced by scanning the QR code, realizing the integration of traceability.
21. Measuring speed: <1s
22. Detection accuracy: CV value is less than 1% (standard card), the error between batches is less than 3%, and the sensitivity is higher than 0.001.
23. Detection output: Chromaticity detection, CT ratio detection, T-line detection, C-line detection and other automatic judgment functions.
24.Test items: Salbutamol, ractopamine, phenethanolamine A, furazolidone, nitrofurantoin, nitrofurazone, furantone, malachite green, chloramphenicol, fluoroquinolone, tetracycline, florfenicol, pentachloro Sodium phenate, sulfa, oxytetracycline, enrofloxacin, ofloxacin, norfloxacin, cephalexin, lactams, nitromiazole (metronidazole), gentamicin, streptomycin, Methoxypyrimidine, olaquindox, erythromycin, penicillin, quinolite metabolites, lincomycin, neomycin, kanamycin, tylosin, tilmicosin, thiamphenicol, melamine Wait
25. USB interface: 3
26. Network communication: wifi, RJ45, Bluetooth
27. Power supply: 220V


Configuration



Serial number	Name	Specification	Quantity
1	Veterinary drug residue detector	JY-108SY	1 set
2	Pipette	50-250µL	1 branch
3	Pipette	1000-5000µL	1 branch
4	Pipette	100-1000µL	1 branch
5	Pipette tip	5mL	1 package
6	Pipette tip	250µL	1 box
7	Pipette tip	1000µL	1 box
8	Plastic centrifuge tube	10mL	10
9	Plastic centrifuge tube	25mL	10
10	Beaker	250mL	1
11	Plastic washing bottle	500ml	1 piece
12	Electronic balance		1 set
13	Mixer		1 set
16	Centrifuge 50ml	4000 rpm	1 set
17	Sample concentrator		1 piece
18	grinder		1 piece
19	Oscillator		1 set
20	Water bath	Single hole	1 set
21	Malachite Green Test Card	10 pieces/box	1 box
22	Furantone Test Card	10 pieces/box	1 box
23	Fluoroquinolone Test Card	10 pieces/box	1 box
24	Chloramphenicol Test Card	10 pieces/box	1 box
25	Tetracycline Test Card	10 pieces/box	1 box
26	Sulfonamide Test Card	10 pieces/box	1 box
