• Model NO.：YX-DL
• Power Source：AC220V±22V
• Customized：Non-Customized
• Product Description：Integrated Sulfur Analyzer
• Furnace Temperature：1150 ºC
• Temperature Controlling Precision：± 2 ºC
• Dimension：620mm× 500mm× 370 mm
• Transport Package：Standard Export Package
• Trademark：Labkits
• Origin：Hunan China
• Production Capacity：500PCS,Month

Basic Info.

Model NO. YX-DL Power Source AC220V±22V Customized Non-Customized Product Description Integrated Sulfur Analyzer Furnace Temperature 1150 ºC Temperature Controlling Precision ± 2 ºC Dimension 620mm× 500mm× 370 mm Transport Package Standard Export Package Trademark Labkits Origin Hunan China Production Capacity 500PCS/Month

Product Description

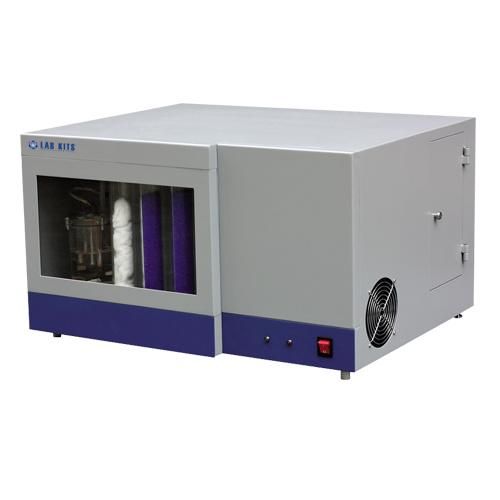

Item: Integrated structure sulfur content analyser for Coal
Model: YX-DL

1. Application area
It is applicable in the industry such as electrical power, coal, commerce inspection, environment protection, metallurgy, paper making, petrochemical, earth probe, and the research institution or quality inspecting organization to measure the sulfur content in the materials of coal, cinder, coke, catalyst, minerals, rock, and petrochemicals.

2. Technical parameters
Furnace temperature: 1150 ºC
Temperature controlling precision: ± 2 ºC
Sulfur testing resolution: 0.001 %
Sulfur testing range: > 0.01 %
Testing time: 5 min per sample
Sample weight: 45mg~100mg
Power Supply: 220V, 50/60HZ
Power: ≤3kw
Dimension: 620mm× 500mm× 370 mm
Weight: 46kg

3. Features
1. Adopting the integrated configuration, put the sample feeding device, electrical scale, vertical high temperature cracking furnace, electrolytic cell, stirrer, and gas purification system in a single container. Thus to make the instrument concise and graceful.
2. Testing time, normally about 5 minutes, can be automatically judged according to the different samples. System errors can be automatically corrected by software and the testing results is more accurate than GB (National Standard). Testing with the principle of coulometry, the testing time is shorter than Escar method and high temperature burn moderate method.
3.  Using the PID temperature controlling algorithm, hence the temperature control is more accurate and the temperature rise more quickly. Using contactless switches. Have overtemperature protection and electrolyte anti-backflow facility, thus to make the system safe and reliable.
4.  Adopting the multi-spots dynamic coefficient correcting method, the system error can be automatically corrected by software, hence to make the testing result more accurate.
5. Temperature control, sample feeding, electrolyzing, and calculation are done by the procedure. System automatically store testing results and print out. Using the dynamic windows operating interface, the operation is simple and easy.
6. Adopting the advanced USB technology, one computer can control several instruments. And the synthesized instrument can be composed combined with other instruments.
7. Completely support Windows systems; high stability; can link electronic scale and share data in long distance through network.

4. Configuration


Item	Quantity	Unit
Sulfur Analyzer	1	PC
High Precision Sulfur Testing Card	1	PC
Platinum Thermocouple	1	PC
JDB-771 Air Pump	1	PC
Electrolytic Cell	1	Set
Stirrer	1	PC
Drying Tube	2	PC
Φ40 Silicon Carbon Tube	1	PC
Φ24 Corundum Pipe	2	PC
Sample Feeding Facility	1	PC
Porcelain Boat	20	PC
Quartz Boat	2	PC
Quartz Crown Bar	2	PC
Seal Clamp	1	PC
Tungstic Oxide	1	Bottle
Silica Gel	1	Bottle
Wrench	1	PC
Screwdriver	1	Set
Socket Board	1	Set
Delay Fuse (3A)	5	PC
Fuse (32A)	5	PC
Controlling Cable	1	PC
Exhaust Pipe	1	PC
Offlet Pipe	3	PC
Application Software for Windows System	1	CD
Instruction Manual	1	PC
