Analysis Instrument

mm7200 Pin Moisture Meter

Shanghai Total Industrial Co., Ltd.
  • After-sales Service:1 Year
  • Warranty:1 Year
  • Display:Digital
  • Portable:Portable
  • Off Mode:Automatic
  • Transport Package:Carton

Base Info

  • Model NO.:MM7200
  • Trademark:ShowRange
  • Origin:China
  • HS Code:9025800000
  • Production Capacity:1000PCS,Month

Description

Basic Info.

Model NO. MM7200 Trademark ShowRange Origin China HS Code 9025800000 Production Capacity 1000PCS/Month

Product Description

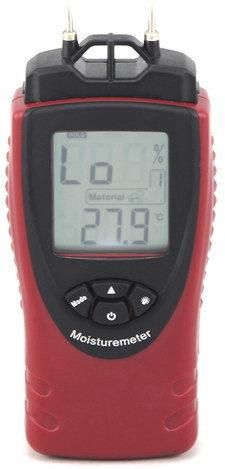

mm7200 Pin Moisture MeterSR8040 Multifunctional Moisture Meter
Key Features:
SR8040 designed to measure material moisture with manual and automatic range selection.
It can quickly measure different 7 material (Hard wood, Soft wood, Cement mortar, Lime mortar, Bricks) for moisture with resolution:0.1%, 0.2% accuracy, in the meanwhile, it display the temperature for º C, º F.
LCD backlight function make you reading easily even in the darkness. It is ideal for DIY, building and engineering project.
The Moisture meter has been designed to measure the material moisture, air temperature. Commonly used to measure the moisture contents in wood and building materials, and the air temperature.
SPECIFICATIONS:
The meter has been designed according to CE directive: 2004/108/EC
Parameters: % material moisture contents, temperatureº Cº F
Accuracy: Conductivity measurement: ±%2
Temperature: ±1º C
Resolution: 0.1% , 0.1º C, 0.1º F
Measurement range: 0.0%~95.7%, -10 ~ +50º C
Digital display: 3 digits
Measurement selection:
Material 1: 8.9~95.7%
(Hard wood such as Beech, Spruce, Larch, Birch, Cherry, Walnut and so on.)
Material 2: 7.1~80.0%
(Soft wood such as Oak, Pine, Maple, Ash-tree, Douglas fir, Meranti and so on.)
Material 3: 1.0~2.5% (Cement or Concrete plane, Plaster produce.)
Material 4: 0.0~3.3% (Anhydrite plane)
Material 5: 0.7~3.8% (Cement mortar)
Material 6: 0.5~7.4% (Lime mortar)
Material7: 0.0~23.4% (Bricks)
Accessories include:
Free 1.5V x3AAA batteries
Free protect cover
Free protective carrying case
Free Wrist Strap/String
User's Manual

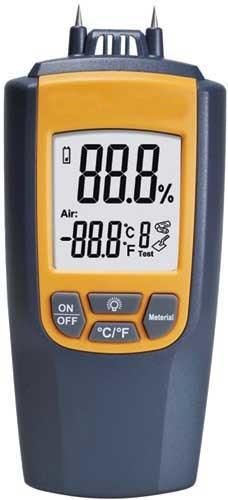

mm7200 Pin Moisture MeterSR6040 Multifunctional Moisture Meter

Specification:
Parameters: % material moisture contents. Temperature º C. º F
Range: 0.0%-95.7% , -10º C - 50º C
Accuracy: +/-2%. +/-1º C
Resolution: 0.1%. 0.1º C . 0.1º F
Digital Display: 3 digits

Measurement Selection:
Material 1 : 9.0-54.8% (Hard wood such as Beech ,Spruce , Larch. Birch , Cherry , Walnut)
Material 2 : 7.3-47.9% (Soft wood such as Oak , Pine , Maple, Ash-tree Douglas Fir, Meranti)
Material 3: 1.0-22.1% (Cement or Concrete plane , Plaster produce )
Material 4 : 0.0-11% (Anhydrite plane)
Material 5: 0.7-8.5% (Cement mortar)
Material 6 : 0.5-9.8% (Lime mortar)
Material 7 : 0.0-16.4% (Bricks)

Auto off: 10 minutes without operation
Operating Temperature: -10-60º C (-4-140º F)
power supply: 1.5V*3 AAA Battery
Size: 121*55*28mm
Weight: 105g
mm7200 Pin Moisture MeterMM318 Non-Invasive Inductive Moisture Meter
Features:
1. LCD display readings
2. Lock readings
3. Auto calibration
4. Low battery indicator
5. LCD display readings
6. Lock readings
7. Auto calibration
8. Low battery indicator
9. Detect Moisture of 4 different materials (drywall, masonry, softwood, hardwood)
10. Alarm if reading is out of range
11. LED bar indicates moisture content
12. Auto power off in 2 minutes inactive
Specification:
Product NameNon-Invasive Inductive Moisture Meter
ModelMM318
Measurement Range0%~53%, Softwood
0%~35%, Hardwood
Moisture readings of drywall and masonry are relative values
Measurement Precision±4% (Softwood, Hardwood)
Maximum Sense Depth3/4 inch (20mm)
Power Source9V Battery
Auto Power Off2 minutes inactive
BacklitYes
LED Moisture Content IndicatorYes
Working Temperature0~40°C
Storage Temperature-10~50°C
Storage Humidity5%~95%RH
WeightAbout 152g (w/o battery)
Dimension170×75×30mm

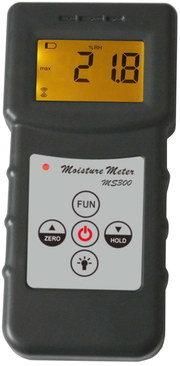

mm7200 Pin Moisture MeterMM300 Inductive Moisture Meter
Inductive moisture meter MM300 is used for measuring moisture content of wood, Timber, paper, Bamboo, Carton , concrete, metope, and other materials. It applicable of woodwork, paper making, flakeboard, furniture ,building, timber traders and other relevant industry.
Features:
1.1.It is portable, compact, easy to use and the moisture measurement readings are instant.
1.2.Digital display with back light gives exact and clearly reading although you stay at the somber conditions.
1.3.It will save time and expense by monitoring dryness and helps to prevent deterioration & decay caused by moisture whilst in storage, therefore processing will be more convenient and efficient.
1.4.The moisture meter operates by electrical resistance and has automatic temperature compensation.
1.5.Manual off at any time .Auto power off after 5 minutes from last operation.
1.6 Data hlold function.Low battery alert.
Specification
*Display:4 digital LCD
*Measuring range :0-70%
*Temperature:0-60°C
*Humidity:5%-90%RH
*Resolusion:0.1
*Accuracy: ± 0.5%n
*Power supply:
4x1.5 AAA size (UM-4) battery
*Dimensions:140mm×60mm×22mm
*Weight:119g (not including batteries)
*Guarantee:1 year
*Material Species: 10 kinds

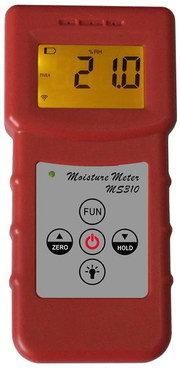

mm7200 Pin Moisture MeterMM310 Inductive Moisture Meter
Inductive moisture meter MM310 is used for measuring moisture content of wood, Timber, paper, Bamboo, Carton , concrete, metope, and other materials. It applicable of woodwork, paper making, flakeboard, furniture ,building, timber traders and other relevant industry.
Features:
1.1.It is portable, compact, easy to use and the moisture measurement readings are instant.
1.2.Digital display with back light gives exact and clearly reading although you stay at the somber conditions.
1.3.It will save time and expense by monitoring dryness and helps to prevent deterioration & decay caused by moisture whilst in storage, therefore processing will be more convenient and efficient.
1.4.The moisture meter operates by electrical resistance and has automatic temperature compensation.
1.5.Manual off at any time .Auto power off after 5 minutes from last operation.
1.6 Data hlold function.Low battery alert.
Specification
*Display:4 digital LCD
*Measuring range :0-99%
*Temperature:0-60°C
*Humidity:5%-90%RH
*Resolusion:0.1
*Accuracy: ± 0.5%n
*Power supply:
4x1.5 AAA size (UM-4) battery
*Dimensions:140mm×60mm×22mm
*Weight:119g (not including batteries)
*Guarantee:1 year
Material Species:20 kinds
Packing: 18PCS/CTN, CTN SIZE: 43.5*28*65CM,
G.W: 13.5KGS, Volume weight: 16KGS

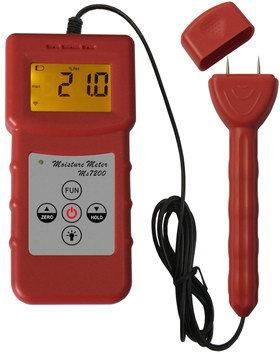

mm7200 Pin Moisture MeterMM7200 Pin Moisture Meter
Pin moisture meter MM7200  is used for measuring moisture content of wood ,Timber, paper, Bamboo, Carton, concrete, floor and other materials. It applicable of woodwork,paper making , flakeboard, furniture ,building, timber traders and other relevant industry.
Features:
*  Compact,portable ,easy to use.
*  Digital display with backlight.
*  Manual power off & Auto power off.
Measuring range: 0-80%
Resolution: 0.1
Display: LCD display
Accuracy: ±(0.5%n+0.1)
Power supply: 4x1.5V AAA (UM-4) battery
Battery indicator: low battery indicator
Material code: 3 kinds
Probe length: 8cm (including handle), pin length: 1.5cm
Packing: 2PCS/CTN, CTN SIZE: 50*22*15CM, G.W: 1.5KGS, Volume weight: 3.3KGS;1PCS/CTN, CTN SIZE: 25*21*7CM
