• Model NO.：TNFP-503
• Gross Weight：60kg
• Flame Height Level：25mm ± 2mm
• Nozzle Opening：0.19mm
• Display：LCD
• Color：White
• Applicating：Building Building Testing
• Transport Package：Plywood Case
• Specification：s
• Trademark：AI
• Origin：China
• HS Code：9031809090
• Production Capacity：30 Sets,Month

Basic Info.

Model NO. TNFP-503 Gross Weight 60kg Flame Height Level 25mm ± 2mm Nozzle Opening 0.19mm Display LCD Color White Applicating Building Building Testing Transport Package Plywood Case Specification s Trademark AI Origin China HS Code 9031809090 Production Capacity 30 Sets/Month

Product Description

Introduction

NFP 92-503 Electrical Burner Tester is used for French M Class fire test.Through the calibrated radiation furnace, the samples are radiated by heat, and the flame impact is applied at the same time. Then the combustion performance of the samples, such as the continuation of combustion, dropping and the damage length of the samples, is observed to judge whether the samples meet the requirements of the French M1 test.



Standard:

NFP 92-503: Electrical burner test used for flexible materials thickness no more than 5mm.



Technical parameter:

1.NFP 92-503 fire resistance tester consists of a control system, a heating device, a calibration device, a sample holder and a fan-shaped burner.

2.Electric control cabinet adopts sheet metal spray painting treatment.

3.The control system adopts PLC and touch screen to monitor the test process and results.

4.A standard thermal radiation test furnace is adopted, with a ceramic protective cover on the outside and a spiral metal rod placed in the center, so that the airflow heating is fast, uniform and stable.

5.Entry the target temperature on touch screen, the PID controls the heating temperature accurately.

6.Calibration device: Copper plate calorimeter, made of copper plate with diameter of 30 mm and thickness of 5 mm. K-type thermocouple is installed in the center position.

7.Sliding track is installed at the bottom of the test device. The switch between test position and calibration position is fast and convenient, and the location is accurate.

8.Calibration method: when the furnace is stabilized, move the heating device directly below the calorimeter and record the time when the temperature rises from 30 ºC to 80ºC for about 1 minute.

9.The sample holder is designed with 304 stainless steel, which is beautiful and durable.

10.Sample holder with turning device, with needle-shaped sample frame, easy to install the sample

11.After the sample installation is completed, the sample holder is turned over to the test position, the system automatically times, and the test begins.

12.During the test, the specimen is 30 mm away from the center of the upper mouth of the radiation furnace, and the angle inclines upward by 30 degrees.

13.Burner for flame shock is provided with NFP 92-503 Fire Resistance Tester.

14.NFP 92-503 Electrical Burner Tester has imported rotor flowmeter, adjustment of flame height accurately.

15.The equipment is equipped with flame gauge, it is convenient to detect the flame height. The flame height is 30mm.

16.NFP 92-503 Fire Resistance Tester tester is equipped with warning system, sound and light alarm mode prompts flame impact operation.

17.Dimension:1250*540*700mm3.

18.Weight:about 60 kg

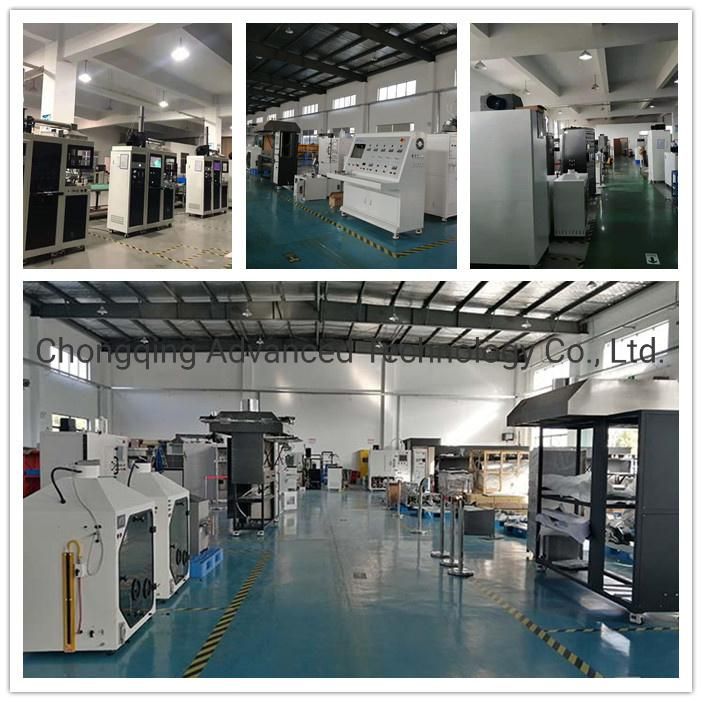

Factory Show

Customer Feedback

Germany

USA

Transporation

FAQ
1.What's the delivery time?
About 30 days .

2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.

3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.

4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD150/Day for every person.
