• Model NO.：GC-7890SD
• Chromatography Type：Gas Chromatography
• Transport Package：Wooden Case
• Trademark：TOP OIL TESTER
• Origin：Chongqing, China
• HS Code：9027
• Production Capacity：100 Sets,Month

Basic Info.

Model NO. GC-7890SD Chromatography Type Gas Chromatography Transport Package Wooden Case Trademark TOP OIL TESTER Origin Chongqing, China HS Code 9027 Production Capacity 100 Sets/Month

Product Description

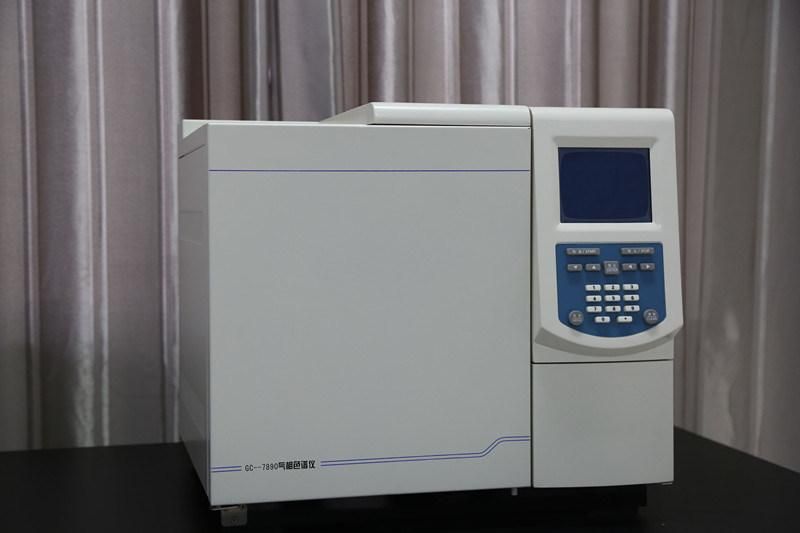

Transformer Oil Dissolved Gas Chromatography Analysis System GC-7890SD

Application:

This Power System Dedicated transformer oil dissolved gas analyzer and Gas Chromatography Analysis System runs by computer automatic control, all-keyboard operation and large-screen liquid crystal display according to the requirements of power system«dissolved gas component determination in insulation oil (chromatography) ,and is characterized by high-precision temperature control, stable and reliable performance, high sensitivity, good reproducibility and so on.The analyzer adopts double-pillar parallel shunt system ,equipped with TCD, double FID and methane conversion oven, and could achieve total analysis of nine components (H2,O2,N2,CH4,C2H2,C2H4,C2H6,CO, CO2)of dissolved gas in insulation oil by one time.

The analyzer can be employed for internal fault detection of power system oil and gas equipment, cooling medium analysis of hydrogen-cooled generators, impurity analysis of sulfur hexafluoride, the boiler flue gas analysis, gas analysis and environmental monitoring analysis. Due to its employment not only for special analysis, but also for general analysis, the analyzer becomes the most effective gas analytical instrument in petroleum, chemical engineering, mining and other systems.


Features

1. Large-screen LCD display; rich and intuitive displaying content; convenient to set parameters.
2. Unique microcomputer automatic ignition device.
3. Stable and reliable digital zero setting to avoid baseline instability caused by the zero setting of potentiometer.
4. Have analysis acquisition automatic start function to seriously guarantee the synchronization of analysis and acquisition.
5. Sample injector adopts ration card to guarantee accurate sample injection and good repeatability.
6. Intelligent back pullout automatic cooling system with frequency conversion function; with fast cooling speed; achieve real near room temperature operation.
7. Column adopts unique tracking temperature rising to avoid detector contamination caused by rapid heating of column chamber .
8. With gas stopping/leaking protection and prompts functions; maximize the protection for TCD tungsten and column from damage.
9. Temperature control adopts Multichannel Integration Solid-State Relay to make temperature control stable and reliable.
10. Fault self-diagnosis function. At any time to show failure cause and alarm indication.
11. Adopt microcomputer control, keyboard setting, LCD display, with memory function.
12. High performance detector and methanator. The detection capability completely meet the Electric Power Ministry's determination of gas component content in transformer oil.
13. Adopt one injection, second diffluence column with quick analysis speed and good repeatability.
14. Double hydrogen flame design to make low content hydrocarbons and high content CO, CO2 separately detected to avoid mutual interference.
15. Adopt new type column packing material, double column temperature flow to make the C2H2 detection time quicker, sensitivity higher and analysis period shorter.


Technical parameters

1. Column chamber temperature: room temperature +5ºC~420ºC, temperature control accuracy ±0.1
2. Detection chamber temperature: room temperature+15ºC~420ºC, temperature control accuracy ±0.1
3. Reburner temperature: room temperature+15ºC~420ºC, temperature control accuracy ±0.1ºC
4.TCD sensitivity, min detection concentration for H2<2ppm, O2<5ppm, N2<10ppm
5.FID detection concentration for hydrocarbons such as methane, ethylene, acetylene<0.1ppm; detection concentration for CO,CO2<2ppm.
6.TCD sensitivity, S>3000mv.ml/mg (benzene)

Related Certificates:

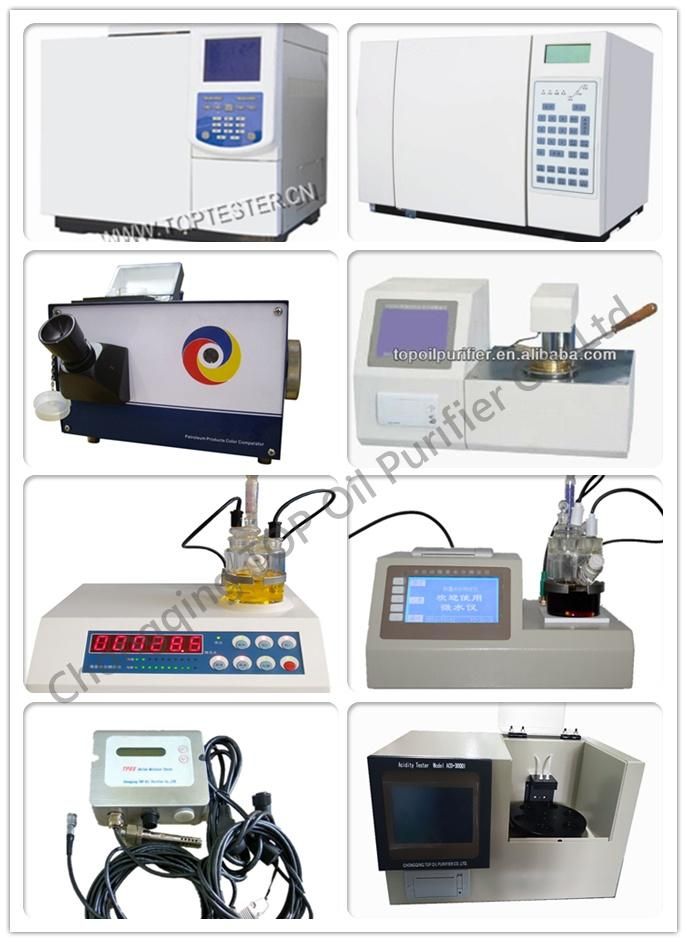

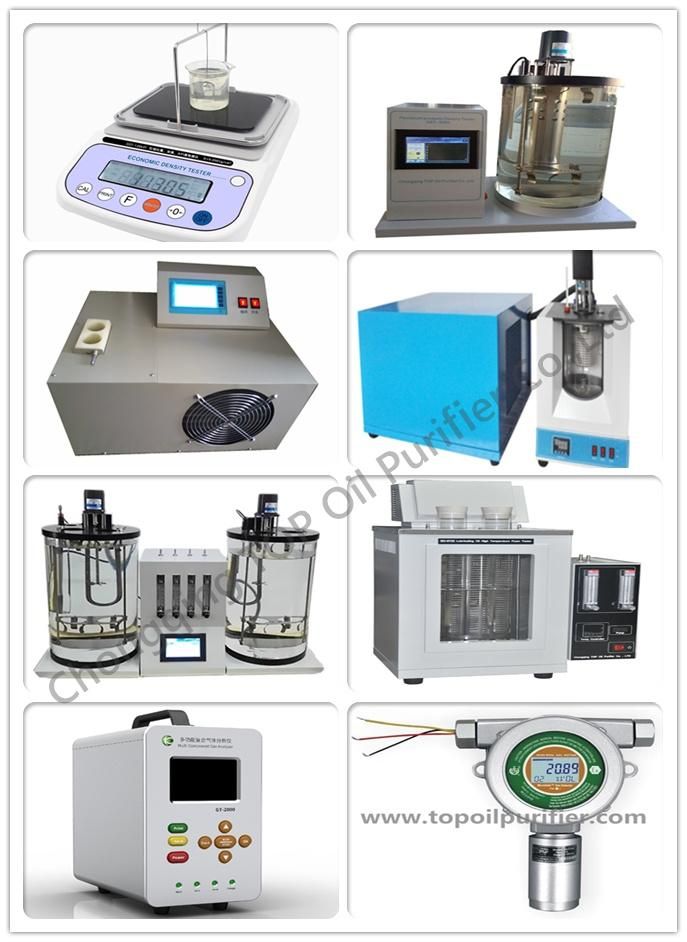

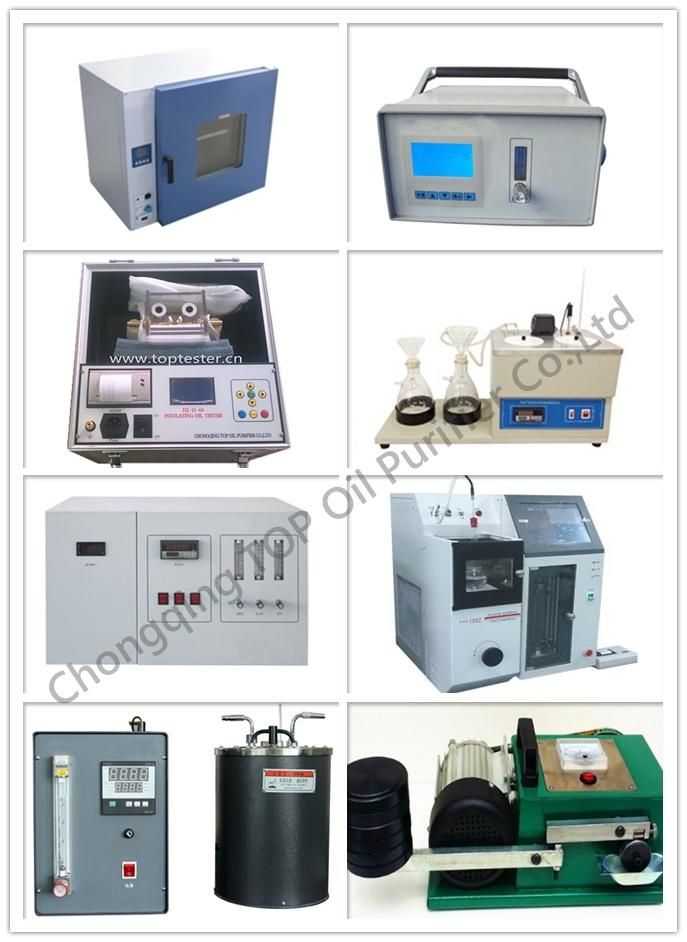

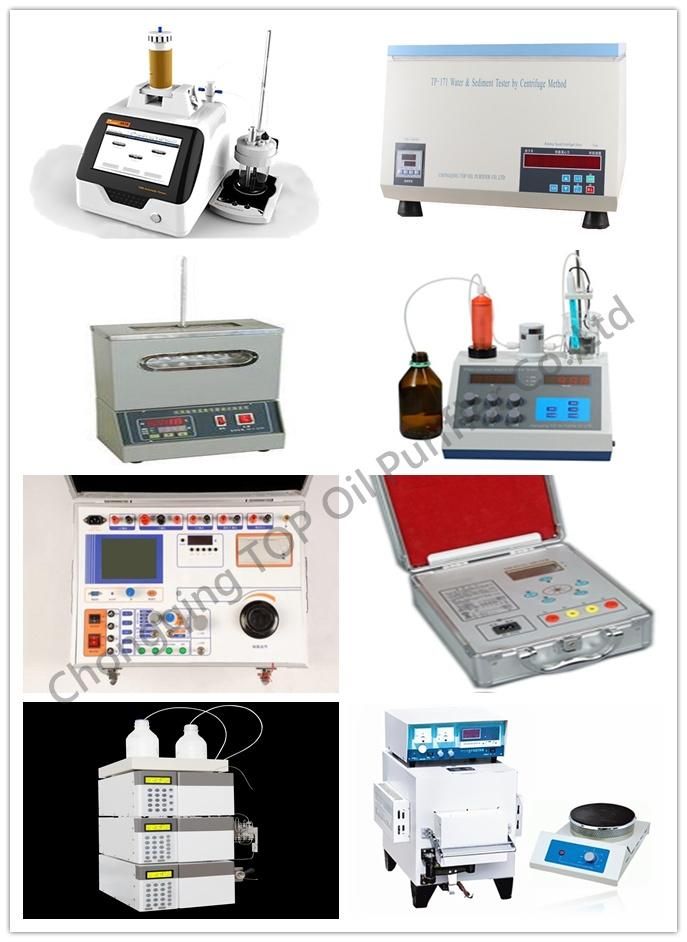

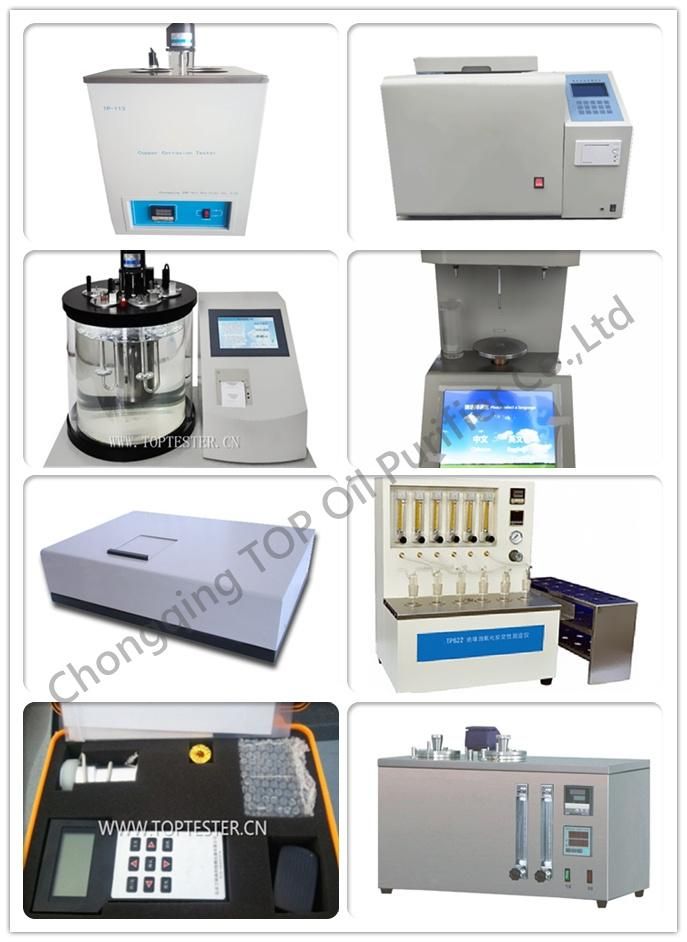

Our testers:

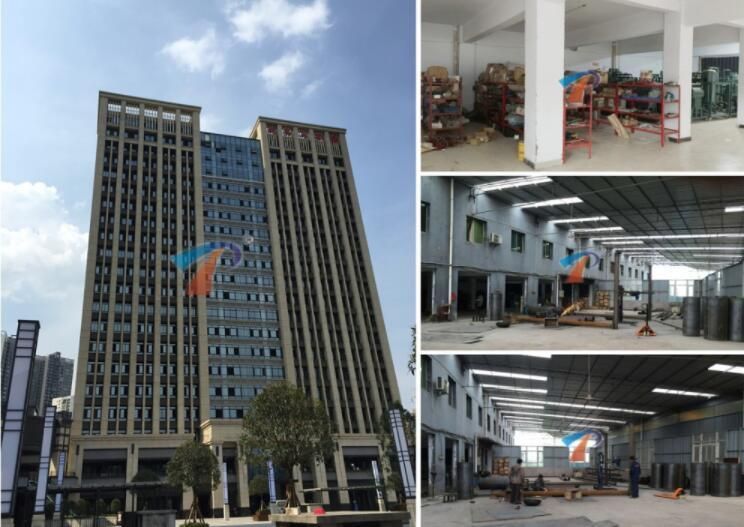

Our Company:




Located at Chongqing city--a southwest electromechanical manufacturing center as well as national municipality, Chongqing TOP is a professional leading manufacturer and supplier of oil purifiers and various related testers. We consists of departments respectively for technological development, machinery manufacture, instrument manufacture, quality control etc. On basis of mature development and manufacture technology and highly qualified production management team, the products own high quality, easy operation, excellent performance and lone service life.

TOP Oil Purifiers are widespread in the fields of electric power, petrifaction, mineral, shipbuilding, steel construction, bridge, automobile and railway, playing a great role in reducing energy consumption for clients as well as environmental pollution. We provides you with reliable oil purifiers such as transformer oil purifier, turbine oil purification machine, hydraulic oil purifier, lubricating oil filtration machine, fuel oil restoration, oil and water separator, oil regeneration equipment, waste oil recycling equipment etc.

TOP Testers works on the development, production, market, technical and after-sale service for petrochemical analyzers, transformer substation electrical testing equipment and circuit detecting equipment. Main products are water content testers, surface/interfacial tension testers, flash point testers, kinematic viscosity testers, oil acidity testers, insulation oil dielectric strength testers, transformer characteristics testers, relay protection testers, high voltage testing equipment etc.
