• Model NO.：AIC-92501
• Radiation Heat：30kw,M2
• Output Power of Radiator：500W
• Control：PC
• Color：Grey
• Delivery Time：About 60 Days
• Test Object：Rigid or Flexible Materials
• Transport Package：Plywood Case
• Specification：Stainless steel
• Trademark：AI
• Origin：China
• HS Code：9031809090
• Production Capacity：30 Sets,Month

Basic Info.

Model NO. AIC-92501 Radiation Heat 30kw/M2 Output Power of Radiator 500W Control PC Color Grey Delivery Time About 60 Days Test Object Rigid or Flexible Materials Transport Package Plywood Case Specification Stainless steel Trademark AI Origin China HS Code 9031809090 Production Capacity 30 Sets/Month

Product Description

Introduction:

This Fire Radiation Tester can be used for more than 5mm thickness of rigid and elastic material performance evaluation, and it is developed according to flame test standard NF P92-501. The tester provides 30KW / m2 heat radiation, which may lead to volatile flammable gas sample and triggered the combustion of volatile gases, and at the same time to observe the state of the flame spread through the material and estimate combustion heat release data. Suitable for railway vehicle test radiation test methods of fire resistance material.





Standard

NF P92-501:Building materials- Reaction to fire tests, radiation test used for rigid material or flexible materials thickness more than 5mm. Specimens of the product are mounted in an enclosed chamber at an angle of 45° to the horizontal and exposed to thermal radiation (30kW/m²) on their lowest surface, the test duration 20 minutes.





Main feature

1, NF P92-501 Fire and Radiation Tester adopts stainless steel test cabinet, the inner wall is flame resistant material with transparent viewing window.

2, Stainless steel tubular inlet device, equipped with filtration devices shield for indoor sources.

3, 45° of the test stand, equipped with stainless steel foot instructions to calculate the distance of flame spread.

4, Heat radiation device can provide 30KW / m2 heat flux.

5, The power controller controlling the radiation output, adjustable heat radiation.

6, The heat radiating panel display device operating power value, eliminating frequent calibration procedure.

7, The stainless steel burner of NF P92-501 Fire and Radiation Tester can ignite the combustible gas automatically.

8, The imported needle valve can control the upper and lower burner flame height, with a flame height measuring.

9, Lasting small flame device is be ignated before the test to convenient upper and lower ignition burners.

10, One-quarter rotation stopper device to facilitate cutting the gas burner and ignite the flame.

11, The top and the air inlet temperature thermocouple monitoring, real-time status display temperature difference value.

12, The test software can automatically analysis index of flame and burning heat index.

13, Test reports and data can be exported and printed, system has friendly user interface.

14, The test data as follows: raw flame index:i-flame average height index: S- longest flame index: h-combustion heat index: C.





Technical Parameters:

1. The gas regulator valve pressure range: <0.1MPa

2. Shipping Weight: 208Kg (Host: 158Kg; Tables: 50Kg)

3. Radiators rated power: 500W

Factory overview

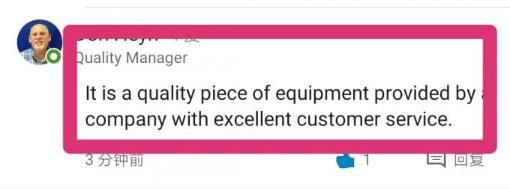

Customer Feedback

Germany

USA

Transporation

FAQ
1.What's the delivery time?
About 60 days.

2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.

3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.

4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD150/Day for every person.
