• Model NO.：K800-CO2-DA
• Voltage：DC 24V
• Operating Temperature：-20 Degree ~ +50 Degree
• Signal Output：4 to 20mA
• Explosion-Proof Grade：Exd Iict6
• Certificate：Ce
• Warranty：1 Year
• Detection Range：0-30%Vol
• Low Alarm：18%Vol
• High Alarm：23%Vol
• Transport Package：Carton
• Specification：1.8kg
• Trademark：KELISAIKE or OEM
• Origin：Nanjing, China
• HS Code：8531100000
• Production Capacity：300

Basic Info.

Model NO. K800-CO2-DA Voltage DC 24V Operating Temperature -20 Degree ~ +50 Degree Signal Output 4 to 20mA Explosion-Proof Grade Exd Iict6 Certificate Ce Warranty 1 Year Detection Range 0-30%Vol Low Alarm 18%Vol High Alarm 23%Vol Transport Package Carton Specification 1.8kg Trademark KELISAIKE or OEM Origin Nanjing, China HS Code 8531100000 Production Capacity 300

Product Description

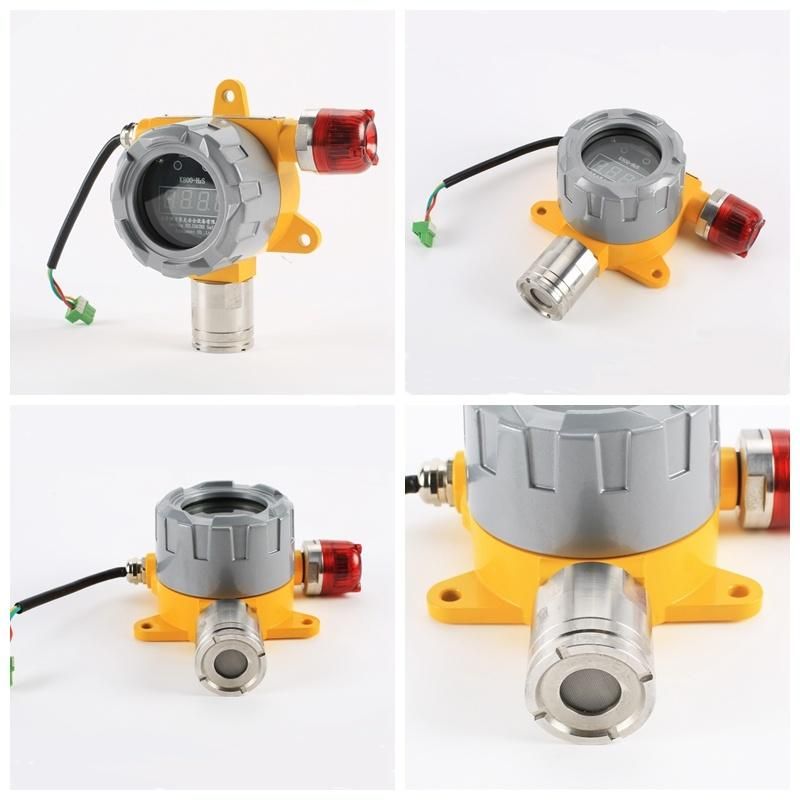

Factory gas concentration online monitor co2 gas detector

K800 Series Fixed Gas detector provides comprehensive monitoring of combustible, toxic gas hazards in potentially explosive atmospheres, indoors and outdoors-and is marked by installation ease and flexibility, user-friendly operation and cost-effective gas monitoring.


>>>Key Features

1)  Providing digital LCD displayer, alarm facility with sound and light, and solid relay output on the spot, allowing contol the equipments easily.
2)  Supporting 4 to 20mA analog signal output (DC24V), connecting with the remote host contoller, and having direct access to the DCS.
3)  Connecting  3 - core shield cable, 3x1.0mm.
4)  Special transmitter mounting kit making the installation and performing calibration easier and better.
5)  Ambient temperature: -20°C~+50°C
6)  Explosion-proof grade: ExdIICT6
7)  High sensitivity, short response time and good stabilization

>>>Technical Specification:


Power supply	24VDC
Output signal	4-20mA standard industrial signal output
Operating temperature	-20°C~+50°C
Display	Backlight LED
Relative humidity	15%~90% RH (non-condensing)
Atmospheric pressure	86~106Kpa
Explosion-proof grade	Exd IICT6
Warranty	1 year


                                COMMONLY USED GAS DETECTION LIST

No.	Detection gas	Range	Accuracy	90% response time	Min readout	Low/high alarm
1	PH3	0-5-2000ppm	±5%(F.S)	≤25s	0.01ppm	0.3/5ppm
2	O2	0-30%	±5%(F.S)	≤15s	0.1%vol	18.0%/23.0%
3	LPG(LEL gas)	0-100%LEL	±5%(F.S)	≤5s	1%LEL	25.0%/50.0%LEL
4	CO	0-1000 ppm	±5%(F.S)	≤25s	1 ppm	50ppm/100ppm
5	H2S	0-100 ppm	±5%(F.S)	≤30s	1 ppm	10ppm/20ppm
6	CH4	0-100%LEL	±5%(F.S)	≤5s	1%LEL	25.0%/50.0%LEL
7	NH3	0-100ppm	±5%(F.S)	≤50s	1 ppm	25 ppm /50 ppm
8	O3	0-20ppm	±5%(F.S)	≤60s	0.01ppm	0.2ppm/0.4ppm
9	CI2	0-20 ppm	±5%(F.S)	≤30s	0.1 ppm	1 ppm /10 ppm
10	H2	0-1000 ppm	±5%(F.S)	≤60s	1 ppm	50 ppm /100 ppm
11	SO2	0-100 ppm	±5%(F.S)	≤30s	0.1 ppm	2 ppm /10 ppm
12	NO	0-250 ppm	±5%(F.S)	≤60s	1 ppm	25ppm/50 ppm
13	NO2	0-20 ppm	±5%(F.S)	≤25s	0.1 ppm	3ppm/10ppm
14	Infrared CO2	0-5%vol	±5%(F.S)	≤60s	0.1%vol	1%vol/2%vol
15	Infrared CH4	0-5%vol	±5%(F.S)	≤60s	0.1%vol	0.1%vol/0.15%vol
16	Infrared C3H8	0-5%vol	±5%(F.S)	≤60s	0.1%vol	0.1%vol/0.15%vol

Our Service:
1.For all our customers, our products have 1 year warranty, and life-long maintenance.
2.All inquiries will be replied in 24 hours.
3.We will provide technical support, our engineers will help to solve the problems you met.
4.We can provide OEM and ODM service.
5.Our factory is locating in Nanjing city, welcome to visit our factory.
6.All products will be well checked and well packed before shipment, and qualification certificatewill be provided.


Why choose KELISAIKE?

1. Mutual benefit : We are a factory, our price will be cheaper in the same quality.
2. Professional engineers: We have 3 engineers who have more than 10 years' experience and over 5 engineer assistants in gas detection line, with Hi-Tech equipments, we make more accurate and stable products.
3. Customize : We have strong R&D team, can custom product as your request.
4. Free OEM service : (a) Silk-printing your Logo(≥100PCS). (b) Design your color box(≥200PCS).
5. Mix order : We accept mix order, different model and small quantity order.
6. After service: (a) 1 Year warranty. (b) If you found any inferior-quality products from us, we will send new ones to replace for free in your next order after confirmed.

If you are interested in our products, please feel free to contact me. Thank you!
