• Model NO.：GE9612T-S
• Origin：Zhejiang, China (Mainland)
• Production Capacity：200 Piece,Pieces , Week

Basic Info.

Model NO. GE9612T-S Origin Zhejiang, China (Mainland) Production Capacity 200 Piece/Pieces / Week

Product Description

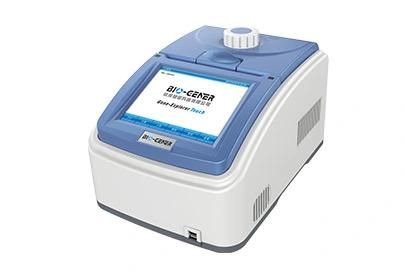

Name: Analyzing (PCR) Instrument

Model: GE9612T-S






Introduction Adopting imported long-life Peltier module for temperature circulator, the maximum temperature change rate is greater than 4.5 degrees per second, and the number of cycles is greater than 1 million. The product integrates a variety of advanced technologies: WINCE operating system, full-color touch screen, multiple replaceable modules, computer online functions, printing functions, large data storage capacity and extended functions, etc.; all of which will complete the functions of qualitative PCR products To the extreme, powerful functions will meet the needs of more demanding experiments. Characteristic
 1). 6 long-life Peltier modules dedicated to temperature circulators, forming 3 groups of loops to independently control 3 temperature zones;
2). The engineering reinforced aluminum module processed by anodizing technology not only retains fast thermal conductivity but also has sufficient corrosion resistance;
3). Fast heating and cooling rate, the fastest heating, and cooling rate is 4.5ºC/s, saving valuable experiment time;
4). Stepless adjustable hot lid, which can adapt to test tubes of different heights, and can be positioned at any angle after opening the lid;
5). Friendly Windows interface, color touch screen control, high-definition TFT display (8 inches, 800×600 pixels, 16 colors true color), graphical menu-style navigation interface, the operation is extremely simple;
6). Built-in 11 standard program file templates, which can quickly edit the required files;
7). The program adopts folder management, and the directory can be created by yourself;
8). Real-time display of program progress and remaining time, support for middle programming of PCR instrument operation;
9). One-click rapid incubation function, meeting the experimental needs of denaturation, enzyme digestion/enzyme connection, ELISA, etc.;
10). Large data storage capacity, the machine can store up to 10,000 files;
11). Hot lid temperature and working mode can be set to meet different experimental needs;
12). Automatic power-off protection, automatic execution of incomplete cycles after power is restored, to ensure safe operation of the entire amplification process;
13). GLP experiment report, which records the operation information of each step of the program, and provides accurate data support for the analysis of experimental results;
14). User login management, three levels of authority, password protection function to ensure data security;
15). USB interface, support U disk to store/take PCR data, and also use a USB mouse to control PCR instrument;
16). Support U disk and LAN update software;
17). One machine can control multiple PCR machines at the same time through a network connection;
18). Optional micro wireless Bluetooth printer, easy and accurate recording of experimental program information.
19). Support the function of sending an email reminder when the experiment program ends.
