Gas Chromatograph - Mass Spectrometer (Quadrupole)
NANBEI INSTRUMENT LIMITED- Appliance:The Analysis of Environmental Samples
- Ray Type:X-Ray Spectrometer
- Certification:CE, ISO
- Transport Package:Wooden Case
- Specification:550*400*300mm
- Trademark:Nanbei
Base Info
- Model NO.:GC-MS 3200
- Origin:China
Description
Working Conditions
l Power
220 V, 50 Hz
l Temperature
15ºC-35ºC
l Humidity
25%-80% RH
Specifications
Gas Chromatograph
l Column oven temperature
Room temperature + 10ºC-400ºC
l Temperature stability
≤±0.03ºC
Maximum heating rate
40ºC/min
Maximum run time
999.99 min
10-segment programmable temperature control
l Split/splitless inlet (3rd generation EPC)
Maximum temperature: 400ºC
Electronic controlled pressure, flow rate and split ratio
Pressure range: 0-999 kPa
Flow range: 0-200 mL/min
Autosampler (optional)
Mass Spectrometer
l Main Specifications
Mass range
1.5 - 1024.0 amu
Mass stability
Better than 0.1 amu/48 h
Resolution
Unit mass
Sensitivity
DB-5MS 30m*0.25mm*0.25um fused silica capillary column or similar column.
EI source, full scan: (range 100-300 amu).
1 pg OFN S/N≥100:1
Maximum scan rate
10,000 amu/s
Dynamic range
105
l Ion source
Electron impact ionization source (EI), standard.
Chemical ionization source (CI), optional.
Dual filaments
Programmable switch
Maximum filament current
3 A
Emission current
10 - 350μA adjustable
Ionization energy
5 - 150eV adjustable
Ion source temperature
150 - 320ºC adjustable, individually controlled
l Mass analyzer
Quadrupole.
Full scan, selected ion monitoring (SIM) and acquisition.
At most 128 groups in SIM mode.
At most 128 ions in each group.
l Detector
electron multiplier + high-energy dynode back focusing assembly
l GC-MS interface
Individually controlled through transmission cable, 150 - 320ºC adjustable
l Vacuum system
Turbo molecular pump (250 L/s), mechanical pump (180 L/min)
Wide range compound cold cathode gauge
l Data processing system
Hardware
Computer (optional)
Printer
Laser printer (optional)
Software
MS3200RT Real-time data acquisition application and MS3200P data processing application
Optional Accessories
DIP 100 liquid/solid direct injection probe assembly
Thermal desorption device
Dynamic headspace sampler
Purge-and-trap sample concentrator
FAQ
1. How can I choose the suitable one?
Dear customer, please tell us your detailed requirements by mail or online, we will recommend the suitable one as your request.
2. Does your price is competitive?
Dear customer, we make sure to offer you the best quality with competitive price.
3. How can I pay?
Dear customer, we accept many payment term, such as T/T, Western Union…
4. When I receive it after pay?
Dear customer, normal models can be delivered with 5-7days, please contact us to check transport time to your address.
5. How to deliver?
Dear customer, we can send by Express, by Sea and by Air.
6. Is will be broken during transport?
Dear customer, please do not worry, we do standard export package.
7. What should I do if I do not know how to use?
Dear customer, please do not worry, manual user will be sent together, you can also contact us with more technological support.
8. What should I do if some parts broken?
Dear customer, please do not worry, we have 12months warranty except wear parts. You can also buy parts from us after 12months.
Company Show

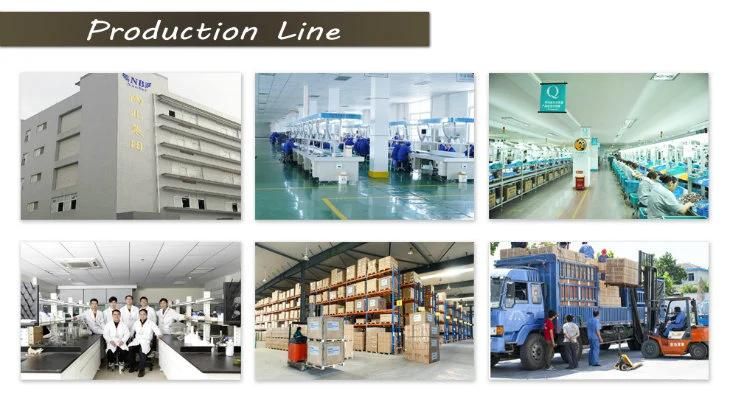

Factory Show
Certification
Warranty And After-sale Service
♥♥We Supply 1 Year Warranty , And Lifelong Free Technical Guiding And Training♥♥
